Description

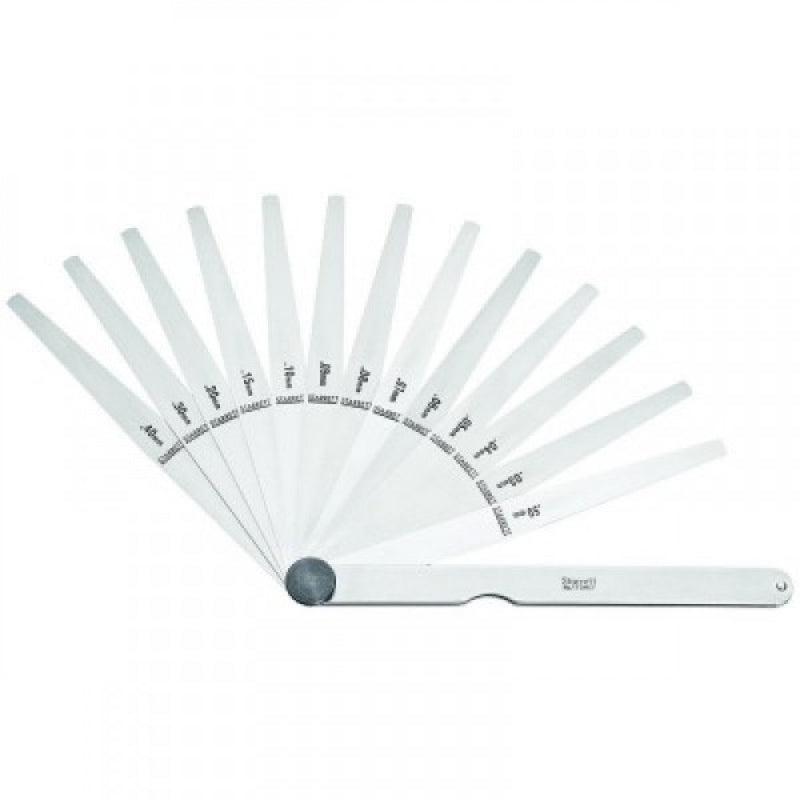

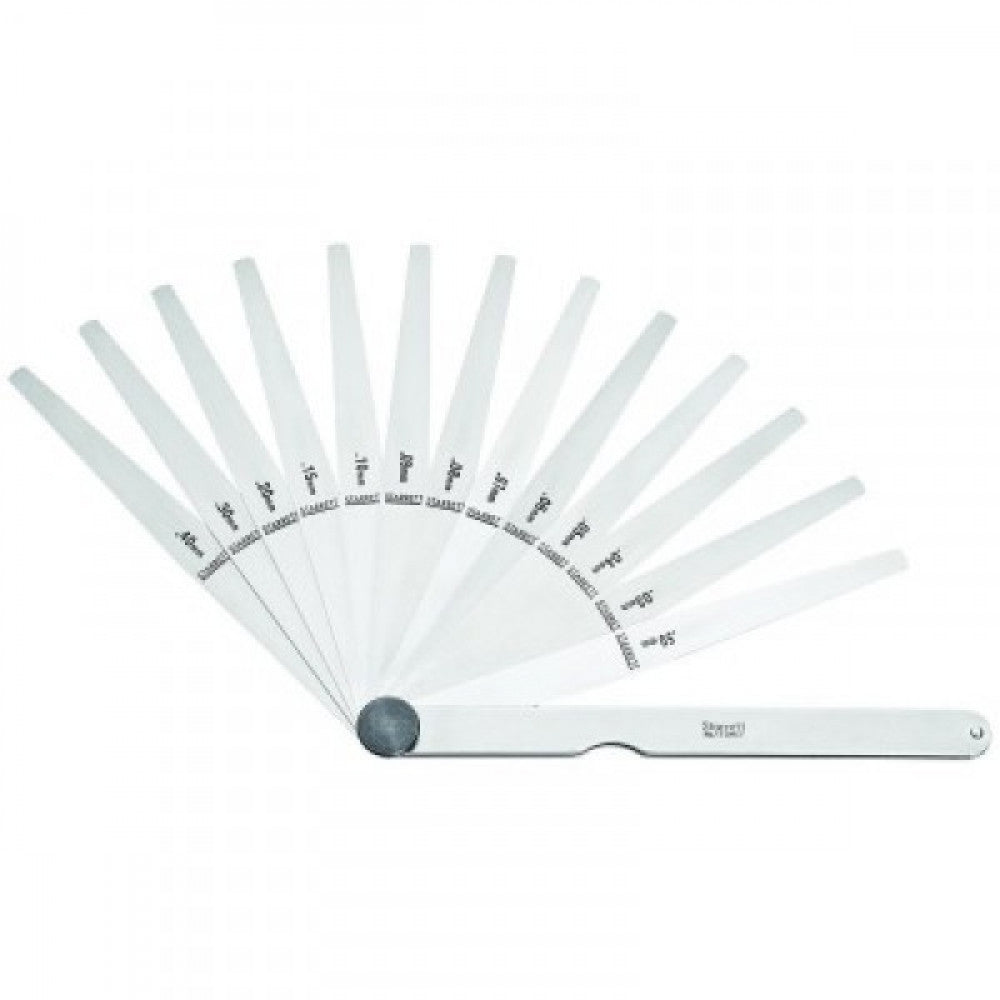

The Starrett 173MAT, Millimeter Reading Thickness Gauge with Tapered Leave is used in automotive, aviation, diesel and farm equipment manufacture and services and also in jig, fixture, gauge and experimental work. Especially useful in adjusting tappets, spark plugs, distributor points, checking bearing clearances and gear play, fitting pistons, rings and pins and gaging narrow slots. Includes 13 leaves ranging from .03 to .50mm thickness. 13 Tapered Leaves, 12.7-7x152mm, mm reading, 0.03-0.50mm Range.
Features and Specifications
Carefully finished to correct thickness
Individually tested and marked with thickness
Leaves easily removed or replaced
Rugged, substantial steel case protects leaves
Tapered Leaves
Leaves made of finest tempered-steel
Locking device on most gages– permits securely locking one or more leaves in position
Range (mm) .03mm-.50mm
Number of Leaves 13
Size of Leaves (mm) 12.7mm-7mmx152mm
Thickness (mm) .03-.50
Leave Type Tapered
Leaves 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.09, 0.10, 0.15, 0.20, 0.30, 0.40, 0.50
Locking Device Yes
Material Tempered Steel
