Description

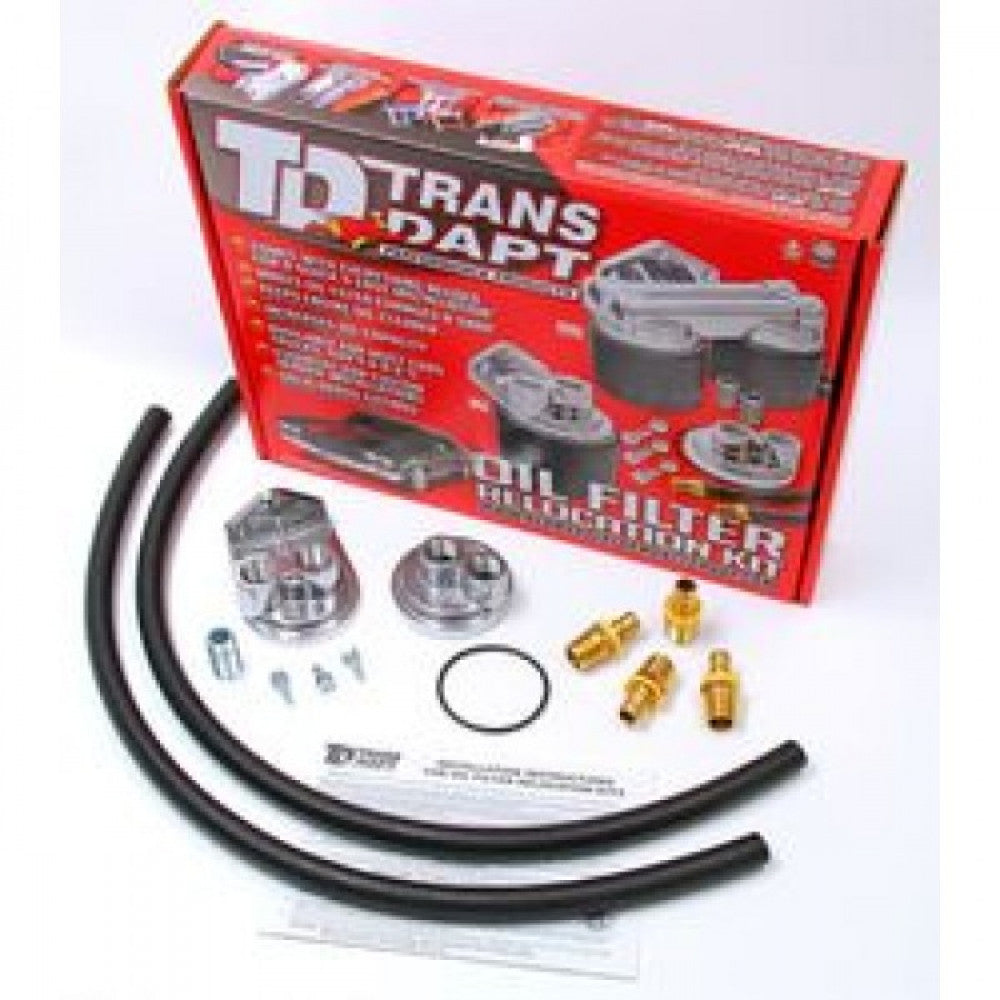

Trans-Dapt introduced oil filter relocation products back in the early 70's. Since then, we have become the foremost producer of oil filter relocation kits. Each kit comes complete with an oil filter bypass adapter, cast aluminum remote OIL FILTER base, oil sending and return lines, pre-installed hose fittings, filter nipples and mounting hardware.
Specifications :
Product Type: Oil Filter Relocation Kits
Product Line: Trans-Dapt Performance Remote Oil Filter Relocation Kits
Oil Filter Quantity: 1
Oil Filter Included: No
Thread Size: 3/4"-16
Hoses Included: Yes
Hose Length: 30.000"
Fittings Included: Yes
Hardware Included: Yes
Diesel Compatible: No
Marine Use: No
Filter Bypass Style: Standard Port Filter Bypass
Kit Type: Single Filter Kits
Oil Filter Compatibility: Fram PH8A, Trans-Dapt 1156 Or Equivalent
Port Size : 1/2" NPT
Port Style : Vertical
Fitting Type: Hose Barb
Fitting Quantity : 4
Hose Connection Type: Push Lock
Bolt Hole Quantity: 3
Hose Bust Pressure: 1200 Psi
Hose Material: Flame Resistant Nitrile/Rubber
Hose Temperature Range: -40 F To +212 F
Hose Thickness: 0.125”
Hose Type: Reinforced 1 Fiber Band
Bracket Material: Aluminum
Bracket Color: Natural
Quantity: Sold as a kit.
Notes: 2.500" ID, 2.750" OD O-ring included. Use Ford style oil filter with 3/4 inch 16 thread.
