Description

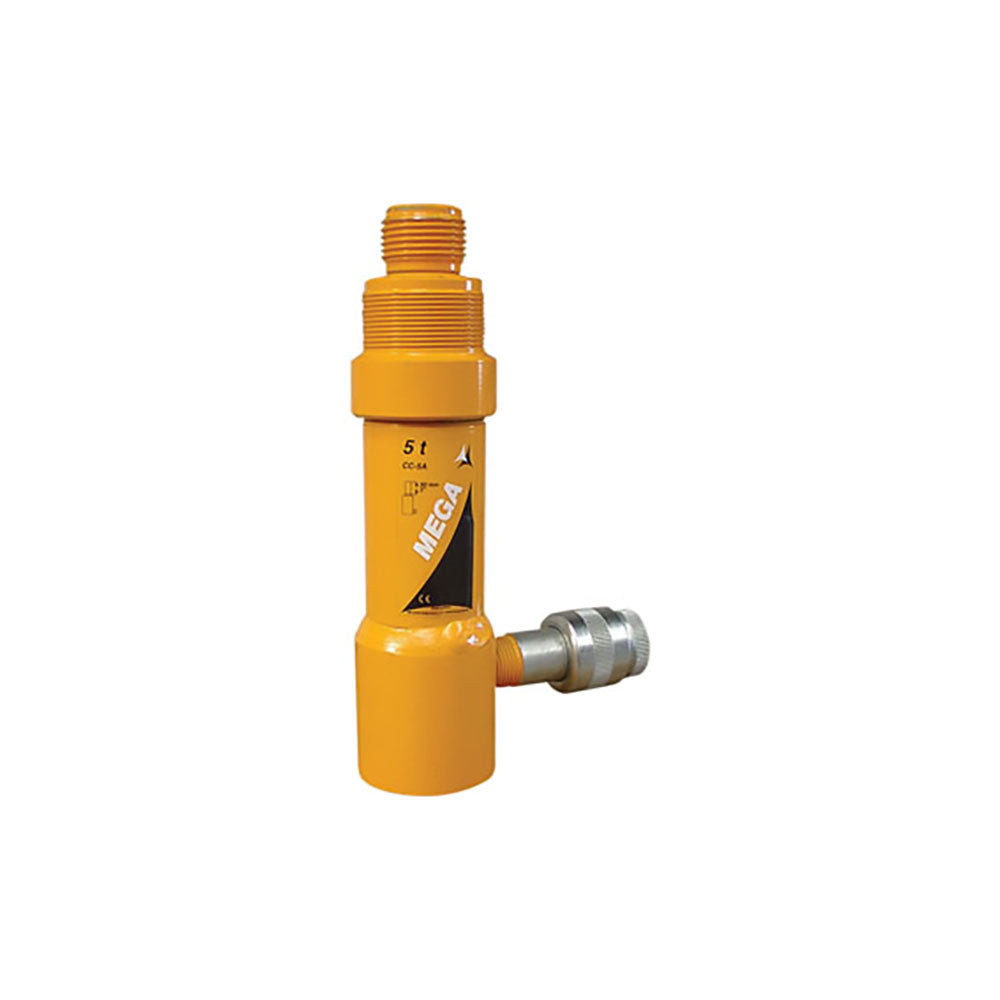

Hydraulic Ram, 5 Ton, 50mm Stroke - MEGA - #CC-5A
Working pressure: 700 kg/cm2/10.000 psi.
All pistons have an induction hardening treatment or a salt bath nitriding process depending on the model.
With mounting holes and protected threaded areas against possible blows for easy coupling or special tooling applications.
Each ram is equipped with a female quick coupler with air dust cap.
Capacity: 5T
Stroke: 50 mm
Min. Height: 177 mm
Effective area (cm2): 8.04
Oil volume (cm3): 40
Weight: 1.35 kg
Working pressure: 700 kg/cm2/10.000 psi.
All pistons have an induction hardening treatment or a salt bath nitriding process depending on the model.
With mounting holes and protected threaded areas against possible blows for easy coupling or special tooling applications.
Each ram is equipped with a female quick coupler with air dust cap.
Capacity: 5T
Stroke: 50 mm
Min. Height: 177 mm
Effective area (cm2): 8.04
Oil volume (cm3): 40
Weight: 1.35 kg
