Description
Transmig 185 Ultra features an impressive AUTO SET function that allows the user to weld like a Pro with no previous welding experience necessary.
Simply select the material type, thickness & consumable diameter and AUTO SET will pre-set the Wirefeed Speed (Amperage) and Voltage (MIG) along a pre-programmed synergic line. Experienced welders can then customise their settings by tweaking their wire speed and volts according to their technique and other factors. The AUTO SET function is available in all 3 processes: MIG, STICK and TIG!

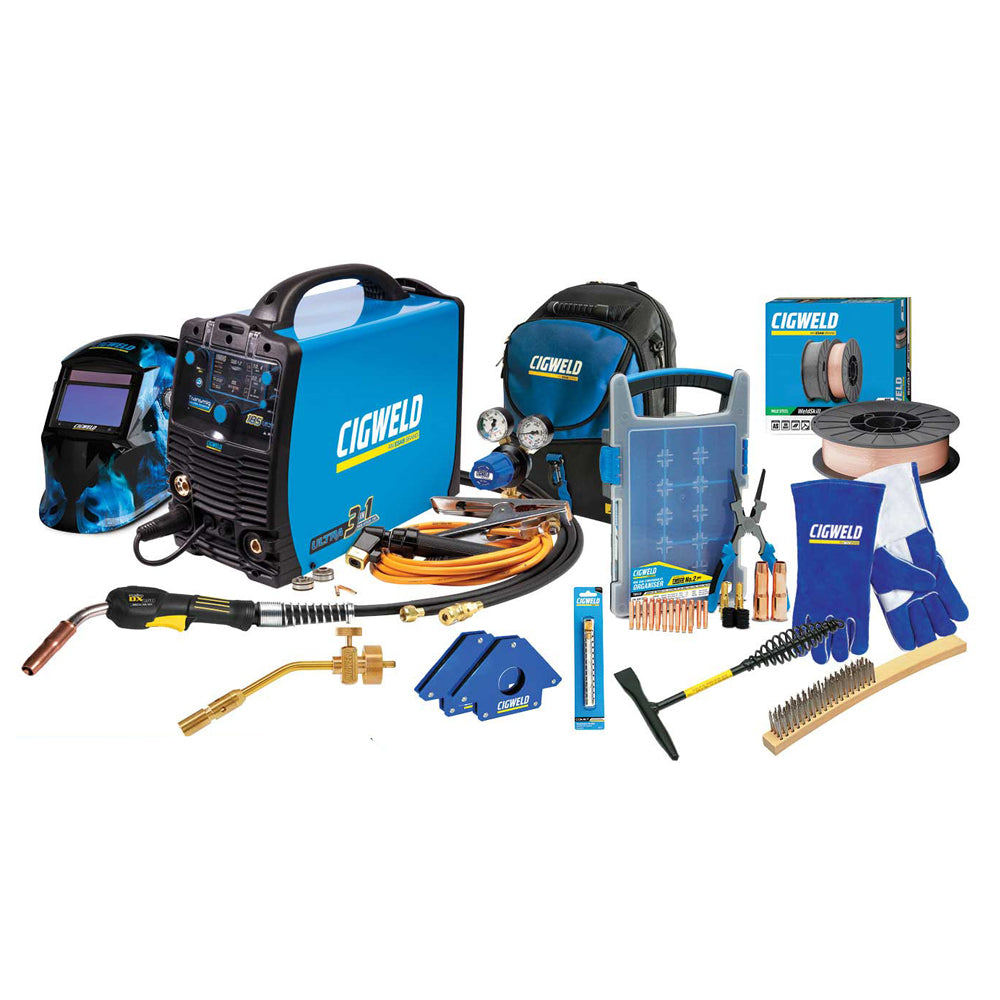

PACKAGE INCLUDES:
Transmig 185 ULTRA w LCD – W1006185
Front-End Kit Box TWE-2 with MIG Pliers – W4012300
Welding Helmet Shade 4/9-13 Howling Wolf – 454342
Heavy Duty Welding Gloves Large – 646755
JET411 Pencil Flame, Torch Only – 308411
Wire Brush 4 Rows Straight Steel Bristles – 646363
Chipping Hammer Spring Handle – 646215
Magnetic Square & Clamp MEDIUM x 2 – 646764
Soapstone Holder with Soapstone (Eng Chalk) – 308578
WeldSkill Solid Wire 0.9mm 5kg = 1 Spool – WS5009
Dimensions
520H x 220W x 420D mm
Weight (Power Source) 17.4kg
Weight (Plant) 30kg
Australian Standard
AS60974-1 / IEC60974-1
Number of Phases
Single Phase
Nominal Supply Voltage
240 VAC ± 15%
Nominal Supply Frequency
50 / 60Hz
Factory Fitted Supply Plug Rating
10 amps
Effective Input Current
9.5 amps
Maximum Input Current (I1max)
30 amps
Minimum Single Phase Generator
10 kVA (at 0.8 Power Factor)
Recommendation
8 kW (at 1.0 Power Factor)
Output Terminal Type
Dinse™ Style 50
Warranty
3 Year Warranty
Current Range
MIG: 30-180A | STICK: 10-185A | TIG: 10-185A
Duty Cycle
MIG: 185A @ 20% | STICK: 185A @ 15% | TIG: 185A @ 20%
