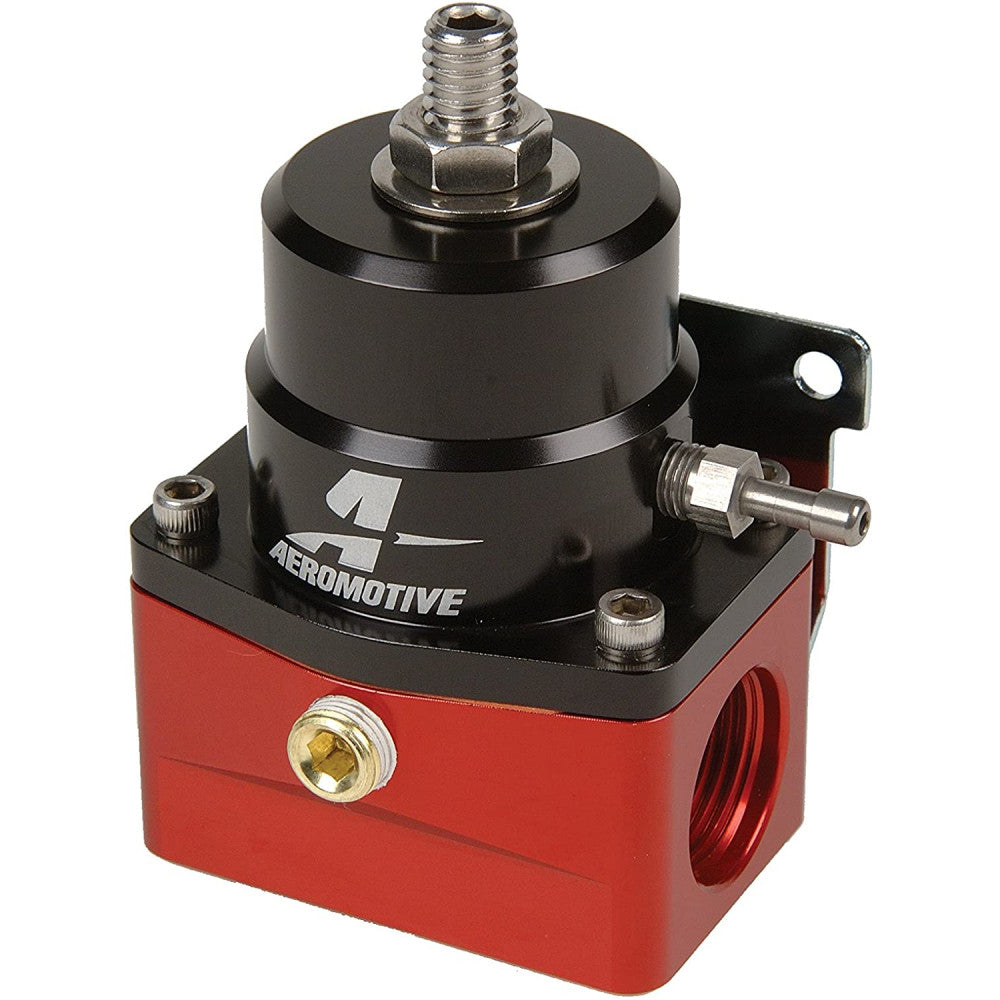

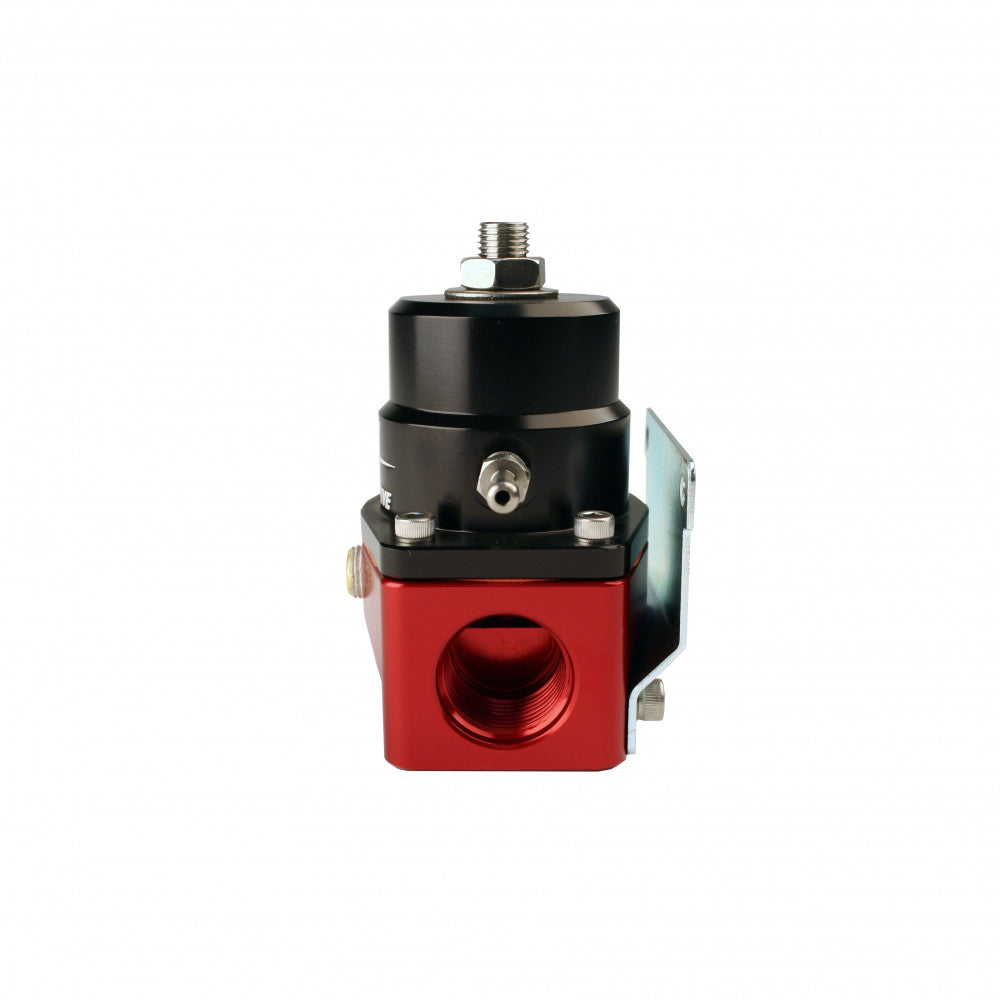

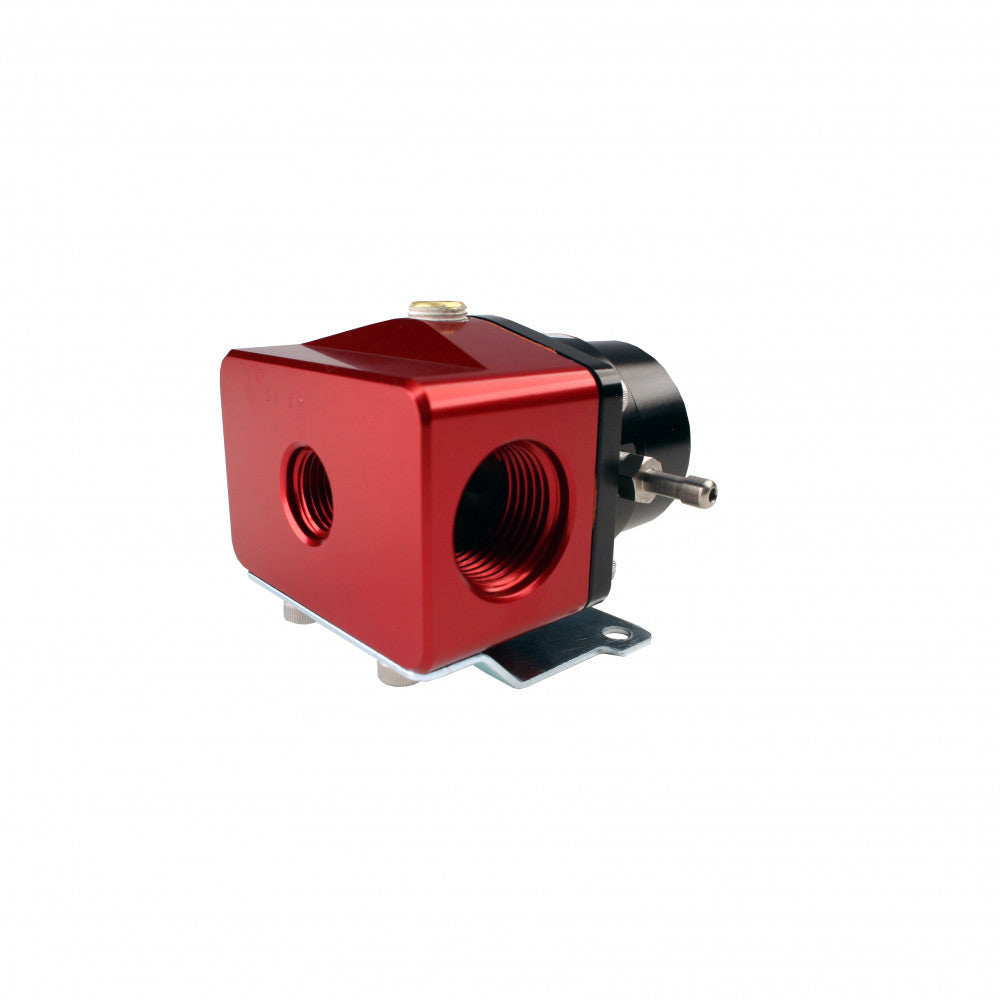

Aeromotive Fuel Regulator Billet,Adjustable, EFI, (2) -10 Inlets -6 Return#13101

Aeromotive A1000 Injected Bypass Fuel Pressure Regulators

Intended for use with custom fuel rails, Aeromotive A1000 injected bypass fuel pressure regulators feature a design specifically for use with their A1000 fuel pumps. These true billet, alcohol-compatible regulators sport a beautiful finish in your choice of red and black anodized coatings or mirror-like, show-quality nickel!

Features :

Base pressure adjustable from 40-75 PSI.
Gasoline, ethanol, alcohol and diesel compatible.
Fuel pressure rises on a 1:1 ratio with boost.
1/8′ NPT gauge port.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
P/N 13101 provides (2) ORB-10 inlet ports and (1) ORB-06 return port

Specifications :

Part Type: Fuel Pressure Regulators

Pressure Range: 40-75 psi

Regulator Style: Return

Regulator Location: Inline

Boost/Vacuum Reference Port: Yes

Boost/Vacuum Rise Ratio: 1:1

Gauge Port: Yes

Fuel Injection: CARB or EFI

Inlet Quantity: Two

Regulator Inlet Size: -10 AN

Inlet Attachment: Female straight cut O-ring

Outlet Quantity: 1

Regulator Outlet Size: -10 AN

Outlet Attachment: Female straight cut O-ring

Return Fitting Size: -6 AN

Return Attachment: Female straight cut O-ring

Fittings Included: No

Regulator Material: Aluminum

Regulator Finish: Red anodized

Rebuildable: Yes

Mounting Bracket Included: Yes

Quantity: Sold Each
