Description

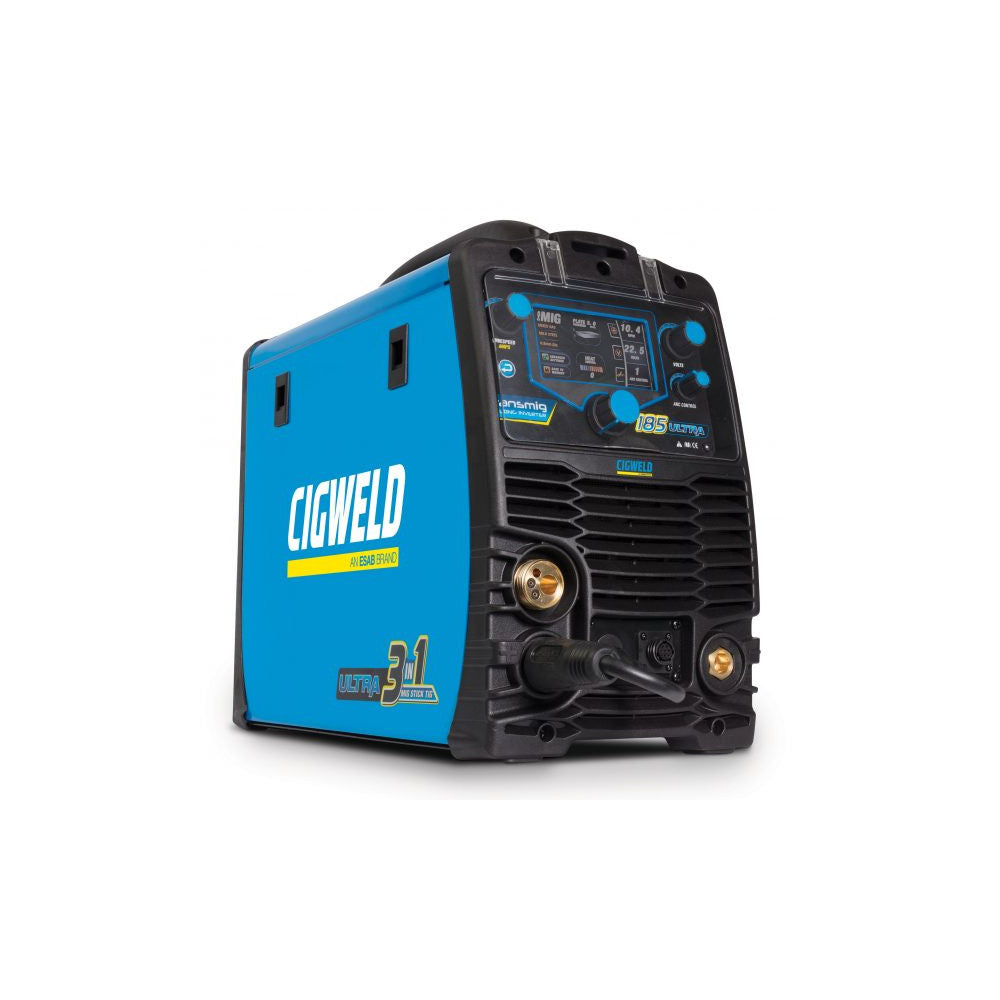

SKU: W1006185The Cigweld Transmig 185 Ultra features an impressive AUTO SET function.

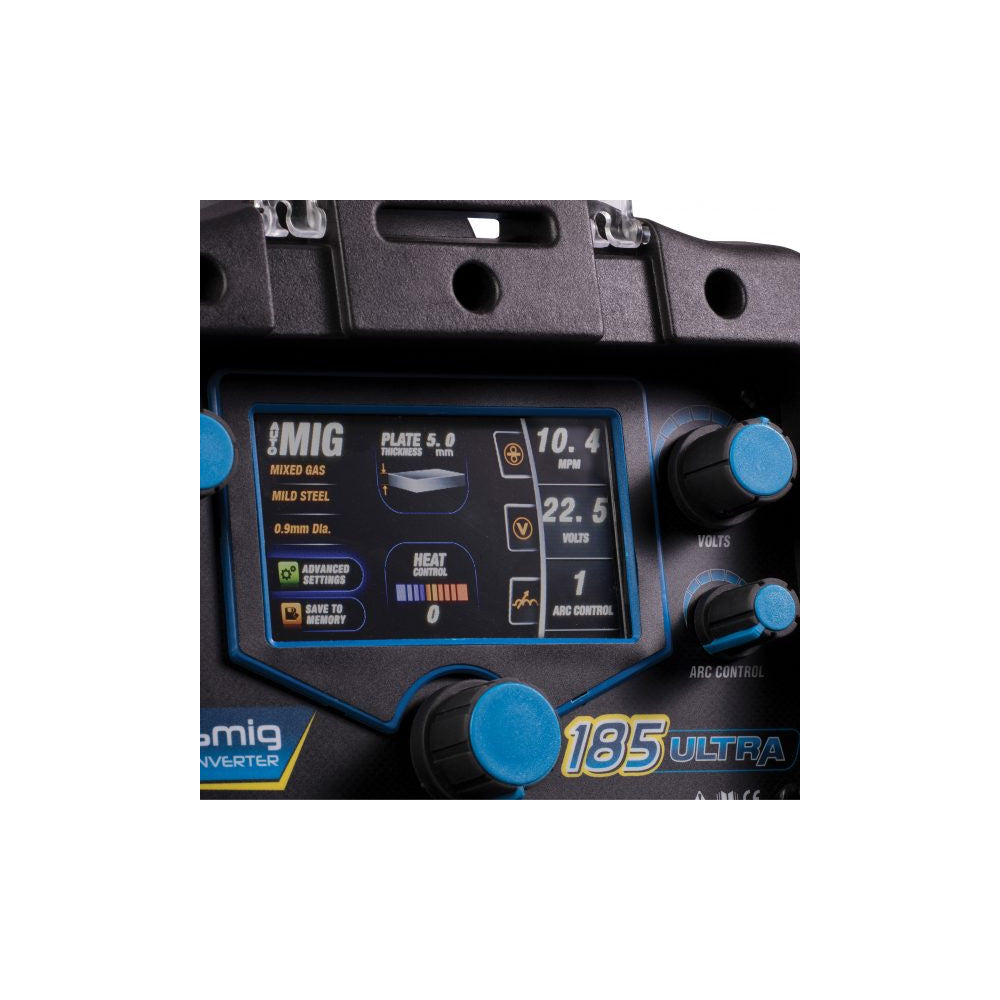

Simply select the material type, thickness & consumable diameter and AUTO SET will pre-set the Wirefeed Speed (Amperage) and Voltage (MIG) along a pre-programmed synergic line. Experienced welders can then customise their settings by tweaking their wire speed and volts according to their technique and other factors. The AUTO SET function is available in all 3 processes: MIG, STICK and TIG!
The 185 Ultra comes with an integrated wire feeder that holds up to a 200mm spool, and boasts a range of Professional
Features to ensure optimal welding results:
Burnback Control
Arc Control
2T/4T
Spot/Stitch Weld
Pre/Post Flow
Up/Down Slope
Arc Force
Hot Start
Anti-Stick
VRD (applicable in Stick mode only).
Most importantly the 185 Ultra is fitted with a 10Amp plug, allowing you the flexibility to plug and play anywhere in your home or workshop.
With excellent welding performance across a broad range of applications, anyone can weld like a Pro!

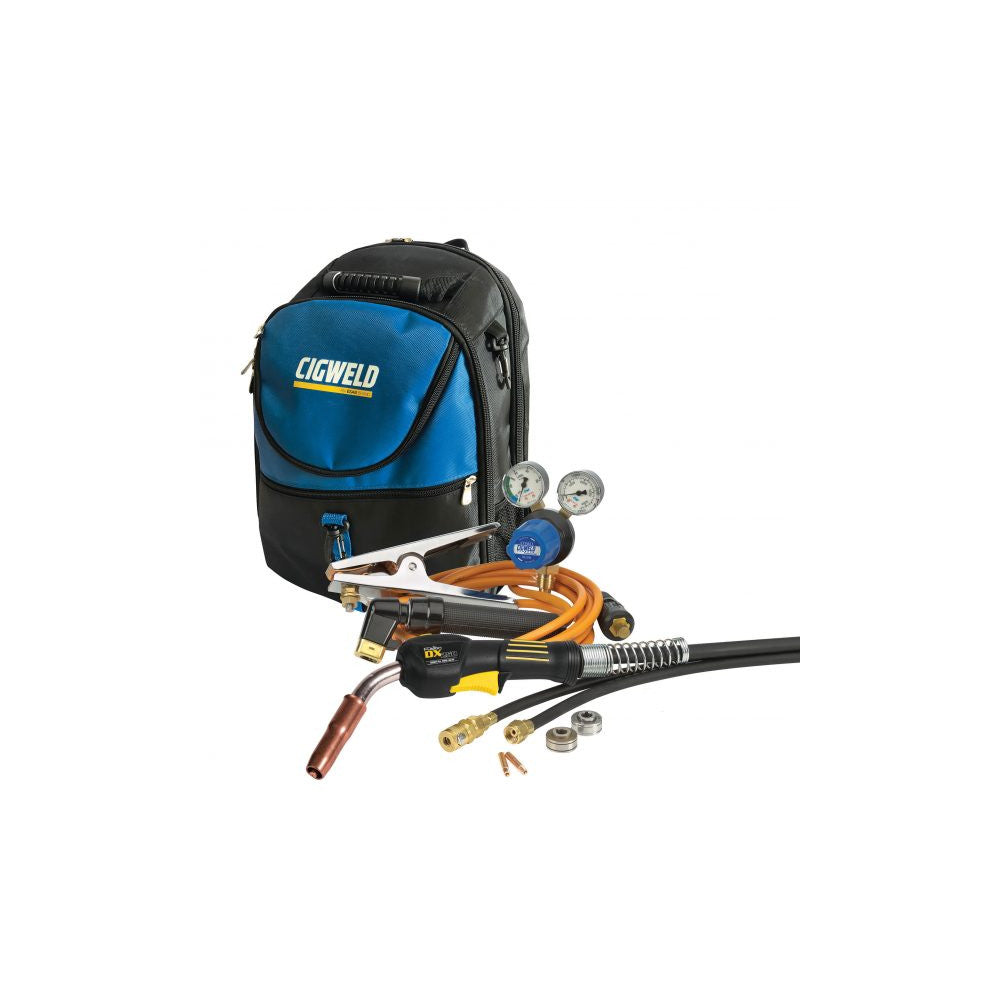

Package Includes
Transmig 185 Ultra Power Source
Tweco Fusion DX250 MIG Torch, 3m
Comet Professional Argon Regulator/Flowmeter
Twistlock Electrode Holder with 4m Lead
Work Clamp with 4m Lead
Shoulder Strap
Operating Manual
Dimensions
520H x 220W x 420D mm
Weight (Power Source)
17.4kg
Weight (Plant)
30kg
Australian Standard
AS60974-1 / IEC60974-1
Number of Phases
Single Phase
Nominal Supply Voltage
240 VAC ± 15%
Nominal Supply Frequency
50 / 60Hz
Factory Fitted Supply Plug Rating
10 amps
Effective Input Current
9.5 amps
Maximum Input Current (I1max)
30 amps
Minimum Single Phase Generator
10 kVA (at 0.8 Power Factor)
Recommendation
8 kW (at 1.0 Power Factor)
Output Terminal Type
Dinse™ Style 50
Protection Class
IP23S
Warranty
3 Year Warranty
Current Range
MIG: 30-180A | STICK: 10-185A | TIG: 10-185A
Duty Cycle
MIG: 185A @ 20% | STICK: 185A @ 15% | TIG: 185A @ 20%
