Description

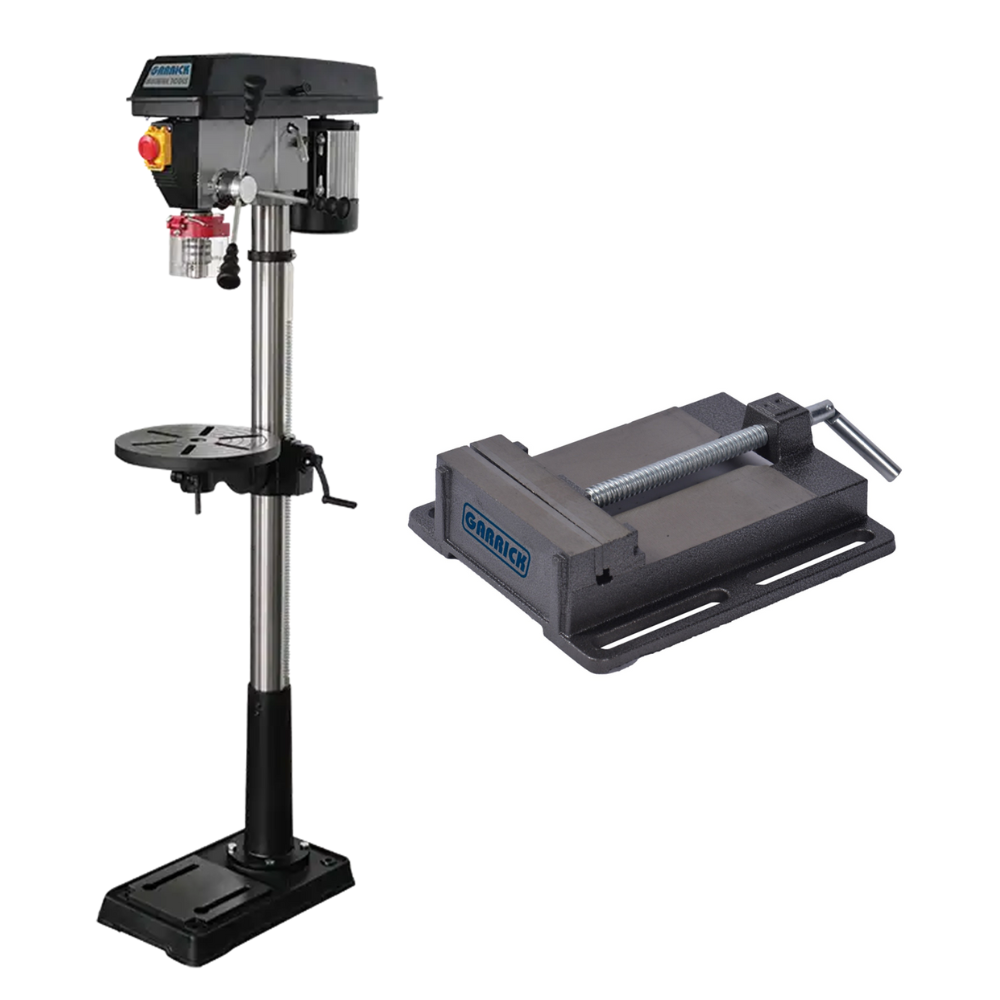

Garrick Workshop Pedestal Drill Press 16mm & 25mm Drill Vice
Garrick Workshop Drill Presses have been specifically configured to deliver maximum features and performance for intermittent work duty.
Bonus model comes with a Garrick 125mm Drill vice included.
Choose Garrick - Quality Matters
- 500W S2-30 rated motor
- NVR (No Voltage Release) Safety Switch
- Safety Microswitch on belt guard, prevents running with unguarded belts
- Safety Guard with flip up cover for quick chuck access
- 3 piece steel handles with non-slip rubber grips
- Drilling depth gauge
- Rack & pinion height adjustment
- Cast iron table +45° to 0° to -45° table tilt left and right
- Includes Drill Chuck & Arbor, Chuck Key and Drill Drift
Specifications
| Base Size | 460 x 270mm |
|---|---|
| Carton Size | 1110 x 460 x 275mm |
| Chuck Capacity | 3-16mm |
| Column Diameter | Ø 72mm |
| Drive Belts | A Section |
| Height | 1580mm |
| Max Drilling Diameter | Ø16mm |
| Model | DPW16 |
| Motor | 550W |
| Net weight | 40kg |
| No. of Speeds | 12 |
| Speeds | 180-2770 / 220-3320 rpm |
| Spindle Taper | MT2 |
| Spindle Travel | 80mm |
| Spindle-Base Distance | 1205mm |
| Spindle-column Distance | 162.5mm |
| Spindle-Table Distance | 725mm |
| Swing | 325mm |
| Table Size | Ø290mm |
| Type | Pedestal |
