Description
The Leica DISTO D510 is a 14 measurement mode LDM that is accurate to 1/16th of an inch. It is IP65 rated against dust, dirt and rain and features a point finder, a bright LCD screen, a 360deg tilt sensor, and Bluetooth Smart.
The D510 laser module can read a target at distances that exceed your ability to see the laser point. With the point finder -- a 4x zoom digital camera -- you find your target in the display, extending the useable range to the ~650ft max.
The farther you can shoot, the more potential there is for something to get in the way. Smart Horizontal allows you to shoot over obstacles so you can measure the level horizontal distance to your target.
At distance, a small wobble in the tool bounces the laser point in wide arcs. This is sub-optimal for acquiring reflected laser energy. For best results when measuring long distances, keep your dot steady with a tripod and our Fine Tune Adapter.
With Bluetooth Smart and attractive free apps, you are prepared for the future.
Specifications
ISO 16331-1 certified typical measuring accuracy ± 1 mm
ISO 16331-1 certified typical range up to 200 m
Measuring units 0.000 m, 0.0000 m, 0.00 m, 0.00 ft, 0'00" 1/32, 0.00 in, 0 in 1/32
Power Range Technology™ Yes
Distance in m 10, 50, 100 m
Ø of the laser dot in mm 6, 30, 60 mm
Tilt sensor measuring range 360deg
Pointfinder with 4x zoom Yes
Memory Last 30 displays
Free App Yes
Data interface* Bluetooth V4.0 Smart
Measurements per set of batteries up to 5000 (with Li-iron LFP batteries)

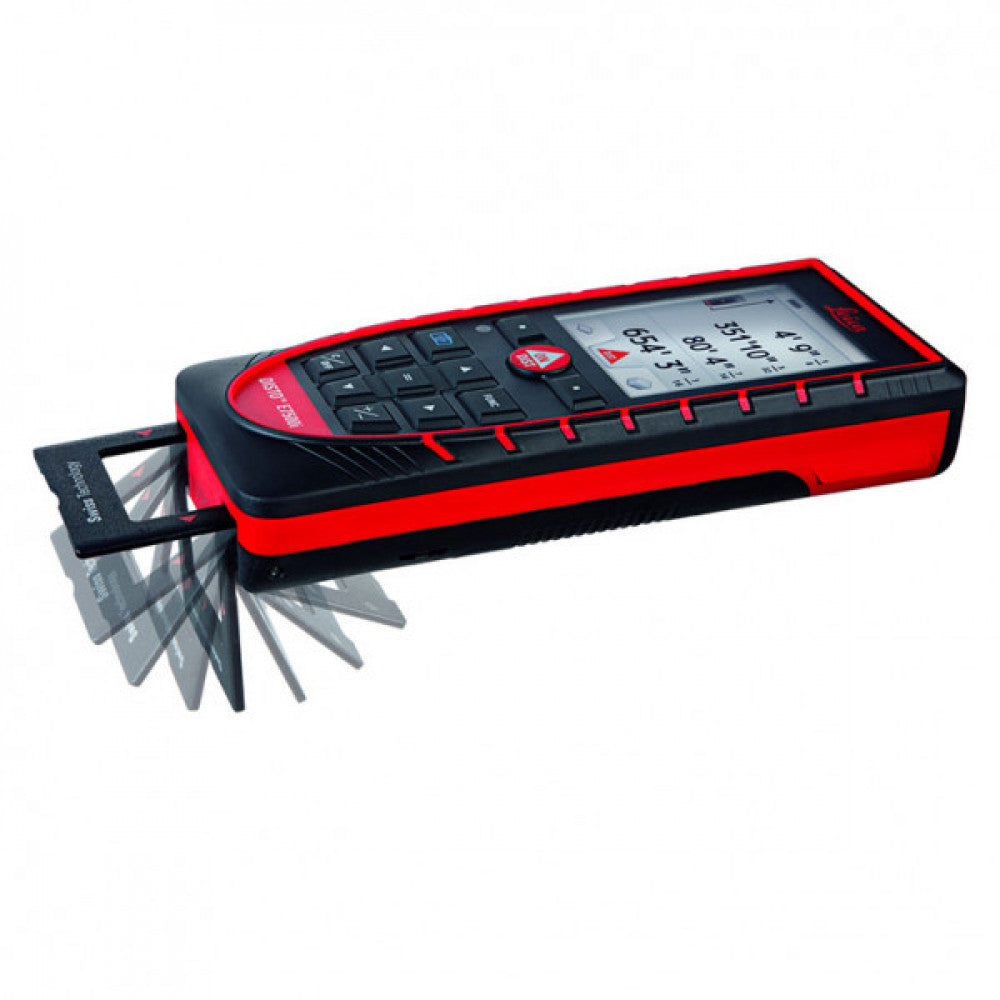

Multifunctional end-piece Automatic recognition
Batteries type AA 2 × 1.5 V (Ships with Li-ion rechargeable)
Tripod thread ¼”- 20
Protection class IP65 – water jet protection and dust-tight
Dimensions 143 x 58 x 29 mm (5.6 x 2.3 x 1.1 in)
Weight with Batteries 198g
The D510 laser module can read a target at distances that exceed your ability to see the laser point. With the point finder -- a 4x zoom digital camera -- you find your target in the display, extending the useable range to the ~650ft max.
The farther you can shoot, the more potential there is for something to get in the way. Smart Horizontal allows you to shoot over obstacles so you can measure the level horizontal distance to your target.
At distance, a small wobble in the tool bounces the laser point in wide arcs. This is sub-optimal for acquiring reflected laser energy. For best results when measuring long distances, keep your dot steady with a tripod and our Fine Tune Adapter.
With Bluetooth Smart and attractive free apps, you are prepared for the future.
Specifications
ISO 16331-1 certified typical measuring accuracy ± 1 mm
ISO 16331-1 certified typical range up to 200 m
Measuring units 0.000 m, 0.0000 m, 0.00 m, 0.00 ft, 0'00" 1/32, 0.00 in, 0 in 1/32
Power Range Technology™ Yes
Distance in m 10, 50, 100 m
Ø of the laser dot in mm 6, 30, 60 mm
Tilt sensor measuring range 360deg
Pointfinder with 4x zoom Yes
Memory Last 30 displays
Free App Yes
Data interface* Bluetooth V4.0 Smart
Measurements per set of batteries up to 5000 (with Li-iron LFP batteries)
Multifunctional end-piece Automatic recognition
Batteries type AA 2 × 1.5 V (Ships with Li-ion rechargeable)
Tripod thread ¼”- 20
Protection class IP65 – water jet protection and dust-tight
Dimensions 143 x 58 x 29 mm (5.6 x 2.3 x 1.1 in)
Weight with Batteries 198g
