SKU: 1-1601-EC

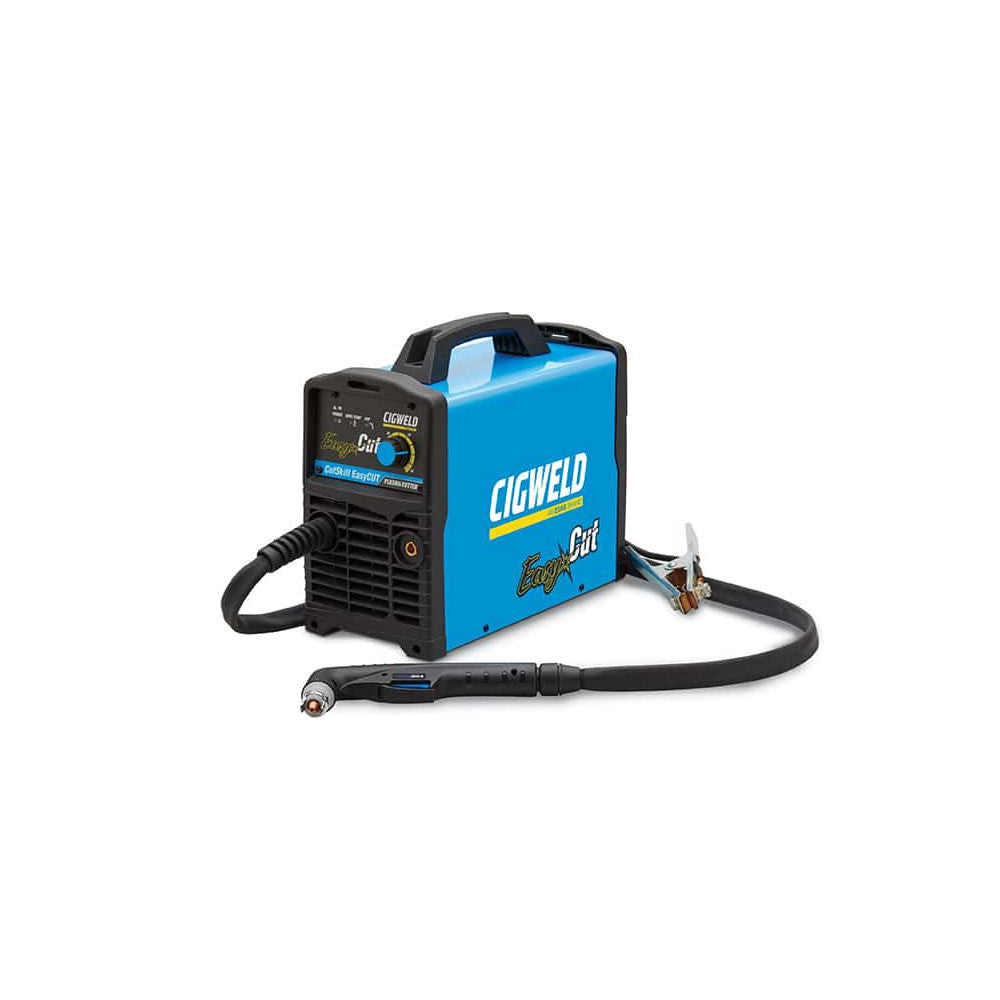

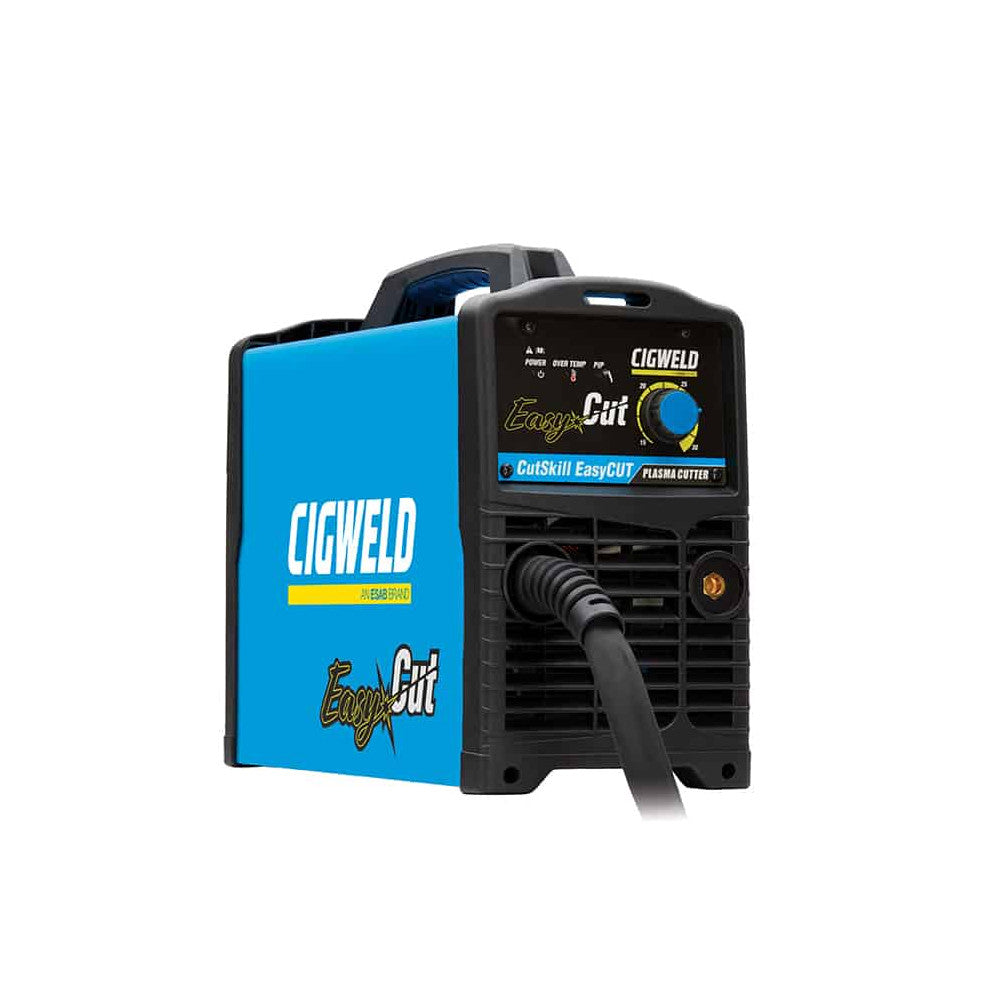

Meet the new Cigweld CutSkill EasyCut Plasma Cutter – serious performance but so easy to use! At Cigweld, we aim to develop and deliver products that bridge the gap in customer requirements.
With the CutSkill EasyCut Plasma Cutter we’ve done just that – a simple, no frills plasma cutter that is not only easy to use but is backed by serious power. Perfectly suited to the DIY cutting user, the EasyCut is still loaded with features – Parts In Place protection to protect your consumables and torch from arc damage, adjustable amperage to suit the plate thickness you’re trying to cut, and high grade consumables built for durability saving you time and money!
This machine will run off a std 10amp household power point !!

Output Current
Current range for this Power Source is 15-30A. Provides DC Output.

Cutting
10mm Genuine Cut, Mild Steel, Aluminium & Stainless Steel. 12mm Severance Cut, Mild Steel. Aluminium & Stainless Steel. 8mm Pierce Cut.

Generator
Recommended generator required: 7.5kVA at 0.8 Power Factor.

Air Compressor
Recommended air compressor required: 800kPa, 5.3 CFM

Warranty
1-Year Warranty on the power source.

Adjustable amperage
Parts In Place Protection (PiP)
Easy to use
Easy to Cut!

CONTENTS:
CutSkill EasyCut Plasma Power Source
CutSkill 30A Plasma Torch
Work Cable and Clamp
Wrench for Air Filter
1 x 1⁄4” Nitto Air Line Connector
Operating manual
