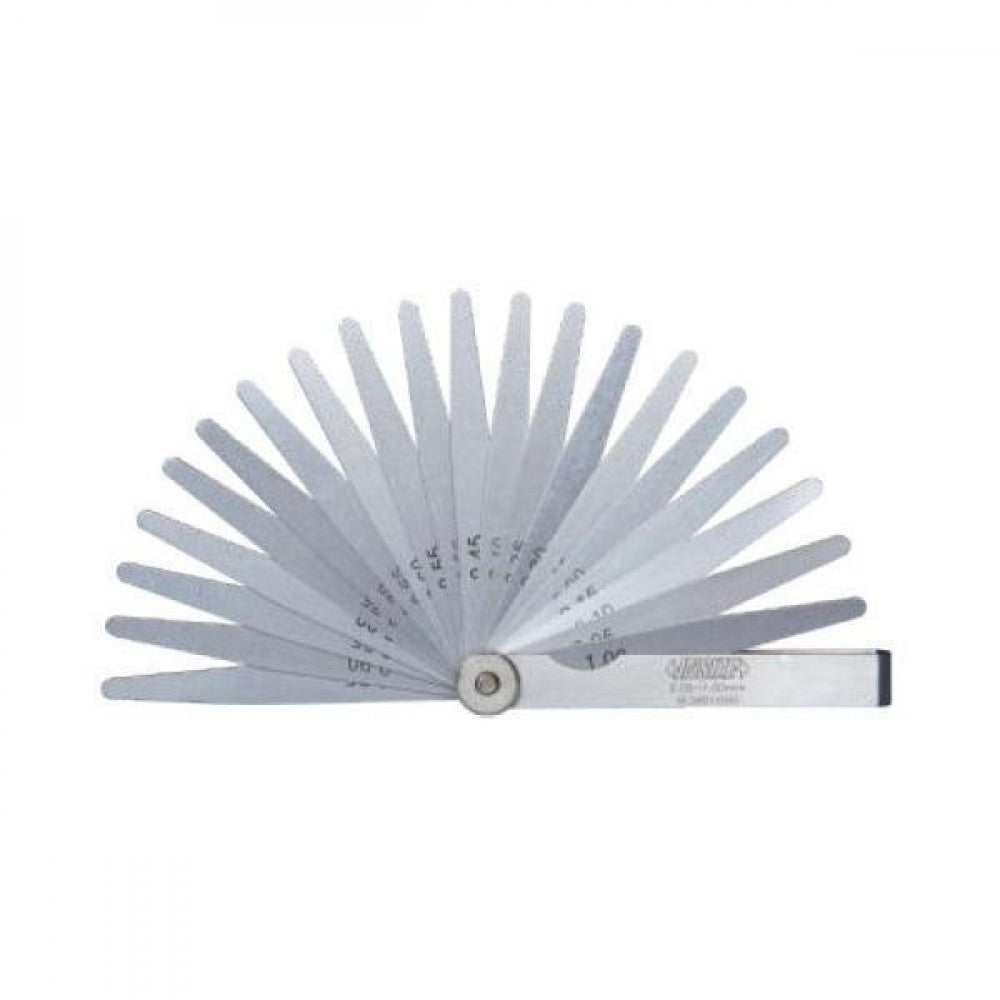

Description
No. Of Leaves : 32 tapered
Leaf Size : 11mm x 100mm
Accuracy : ±(3+T/80)μm, ‘T’ is the thickness of leaves in μm
Range : 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.09, 0.10, 0.13, 0.15, 0.18, 0.20, 0.23, 0.25, 0.28, 0.30, 0.33, 0.35, 0.38, 0.40, 0.45, 0.50, 0.55, 0.60, 0.63, 0.65, 0.70, 0.75, 0.80, 0.85, 0.90 & 1.00mm
Made of hardened alloy steel.
Meet DIN2275
Leaf Size : 11mm x 100mm
Accuracy : ±(3+T/80)μm, ‘T’ is the thickness of leaves in μm
Range : 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.09, 0.10, 0.13, 0.15, 0.18, 0.20, 0.23, 0.25, 0.28, 0.30, 0.33, 0.35, 0.38, 0.40, 0.45, 0.50, 0.55, 0.60, 0.63, 0.65, 0.70, 0.75, 0.80, 0.85, 0.90 & 1.00mm
Made of hardened alloy steel.
Meet DIN2275
