ITM Beam Clamp-1 Ton-230mm Beam Width

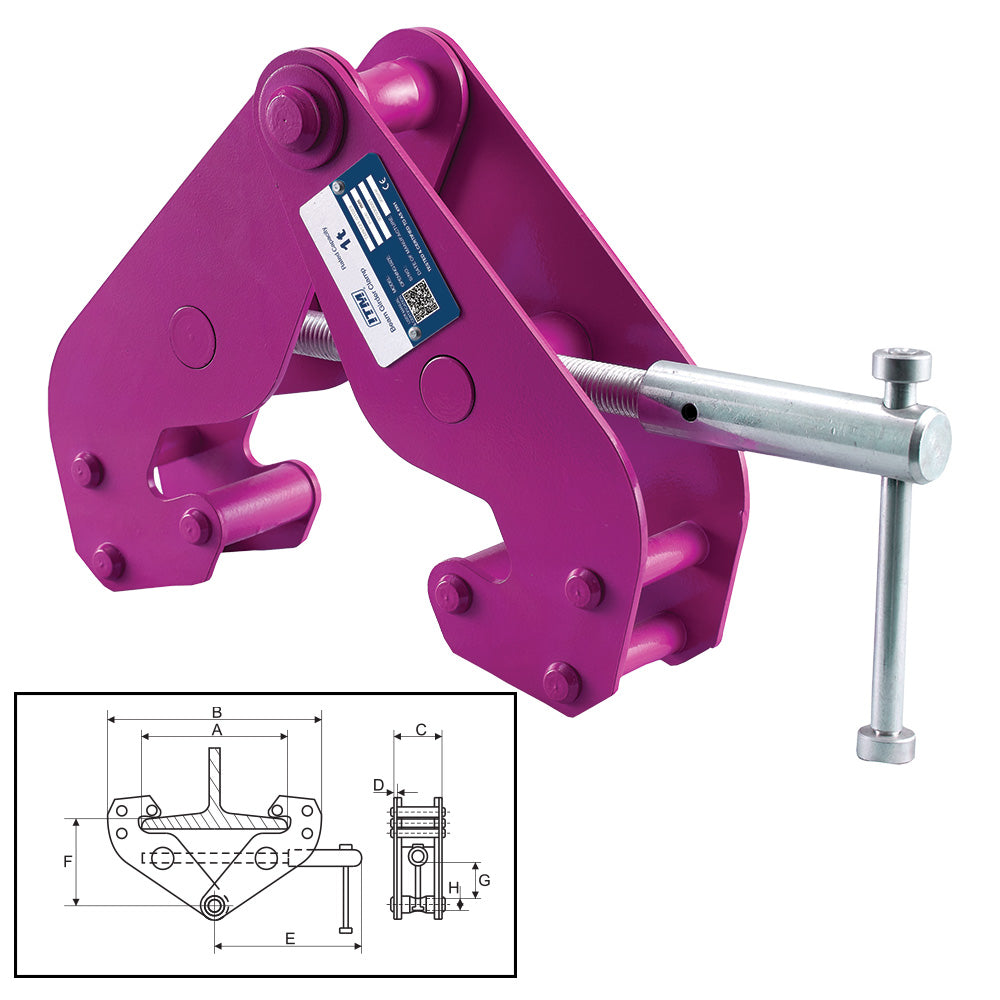

TM9121-01023| ITM Beam Clamp 1 Ton 230mm Beam Width • Durable all steel construction • Colour coded to WLL for safety • Tested & certified to AS 4991 • 1000kg Rated capacity • Violet colour coded to W.L.L. for safety • Beam width to suit 75 - 230mm • Weight: 3.6kg • Dimensions (mm) A(max): 278 B (min): 182 B (max): 380 C: 64 D: 4 E: 217 F (min): 150 F (max):90 G: 26 H: 19
