Description

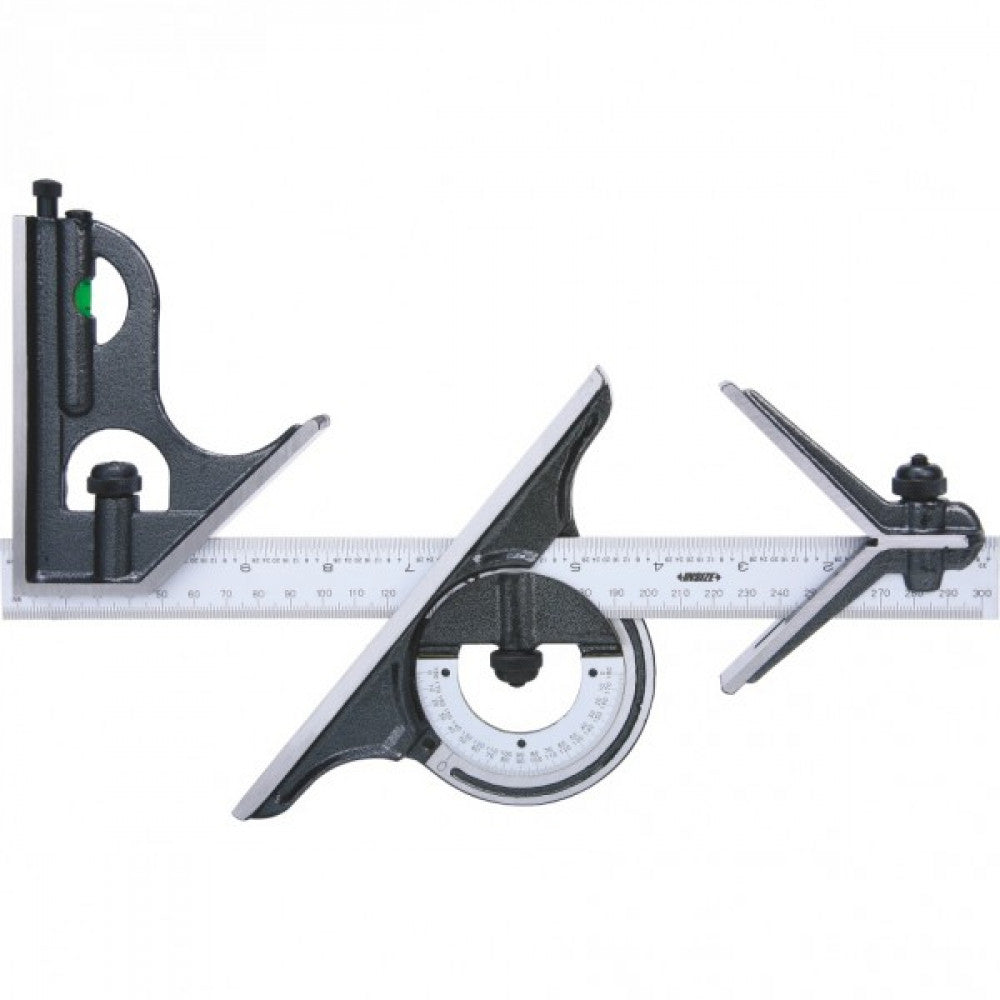

4 piece set
Center head: To locate center of cylinder with diameter (Ød): 30 - 100mm
Accuracy: +/-0.15mm
Protractor head: To set the blade at desired angle to an edge of a workpiece, and can be used to measure angles
Range: 0-180 degrees
Accuracy: +/-7min.
Square head: To set the blade at 90 degrees or 45 degrees to an edge of a workpiece
Accuracy: +/- 8min for 90 degree square, +/-10min for 45 degree square
Blade:
Range: 300mm/12",
Graduation: 0.5mm and 1/32" on front face, 1mm and1/64" on back face
Optional accessory: rigid rule (code 7113)

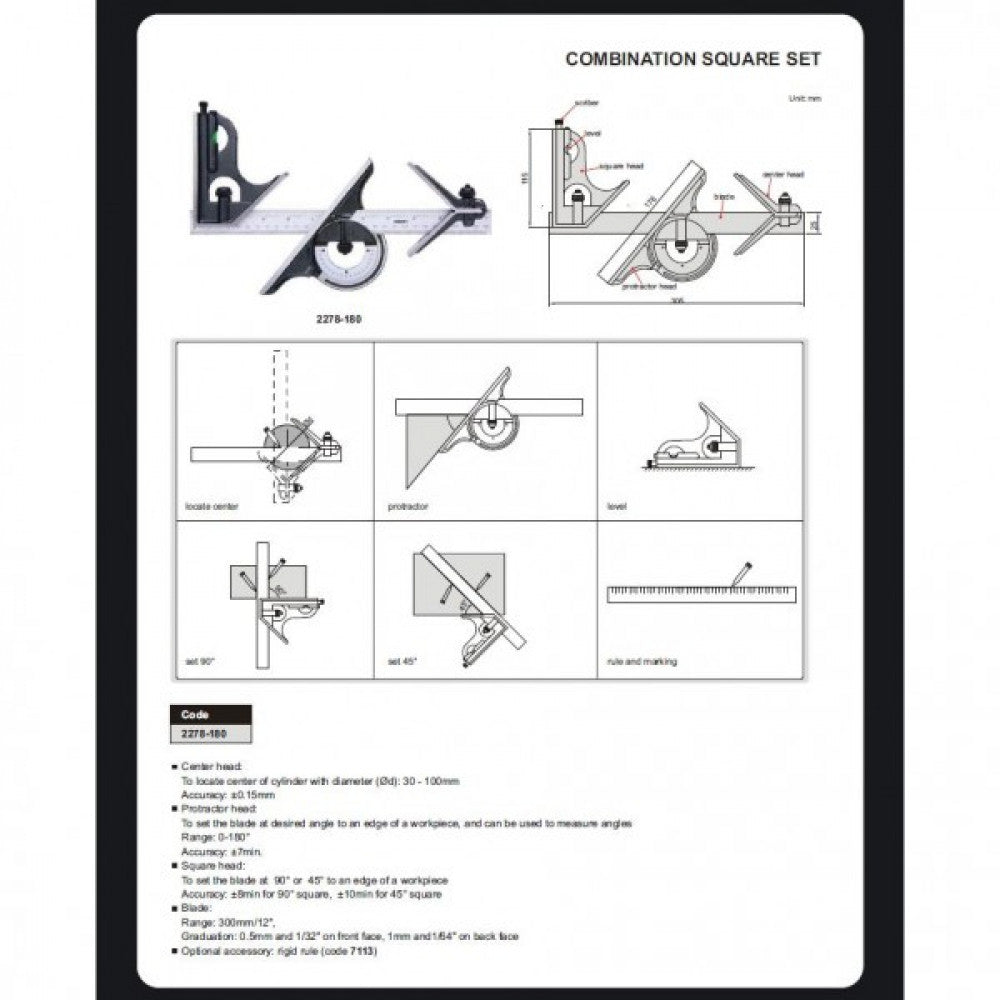

2278-180
