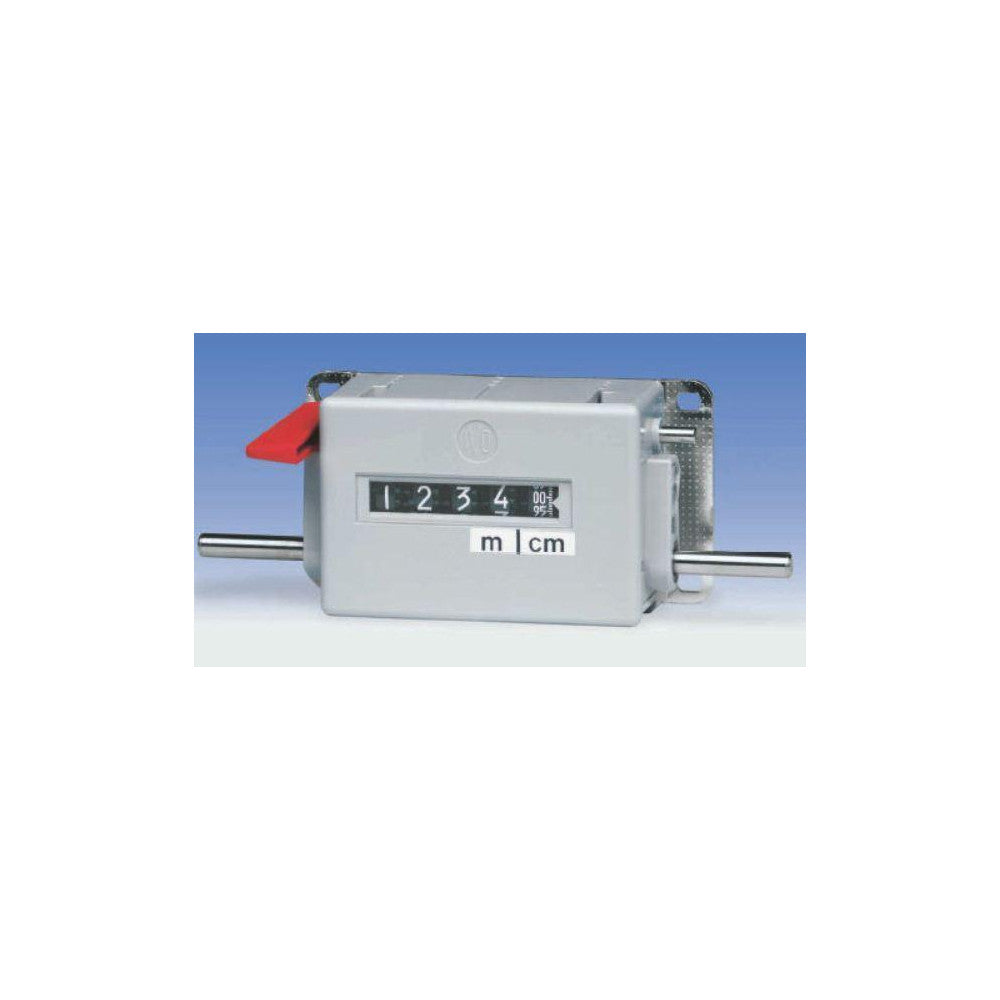

IVO Lineal Counter 7 Fig II Top Coming

Method of counting is adding in one direction of rotation, subtracting when rotation is reversed.
2 revolutions = 1.0M using measuring wheel of 50cm.

Wheels are separate item - see IVO5512.

Drive shaft protruding on either side, diameter 7mm.

Reset by lever which can be mounted on the left or right-hand side.

Measuring range 9999.9m.

Speed max. approx. 200.0m per min. or max. approx. 300.0m when used without measuring wheel.

Height of figures 7mm.




Type : Top Coming



Base Size: 120 x 64mm
