Description

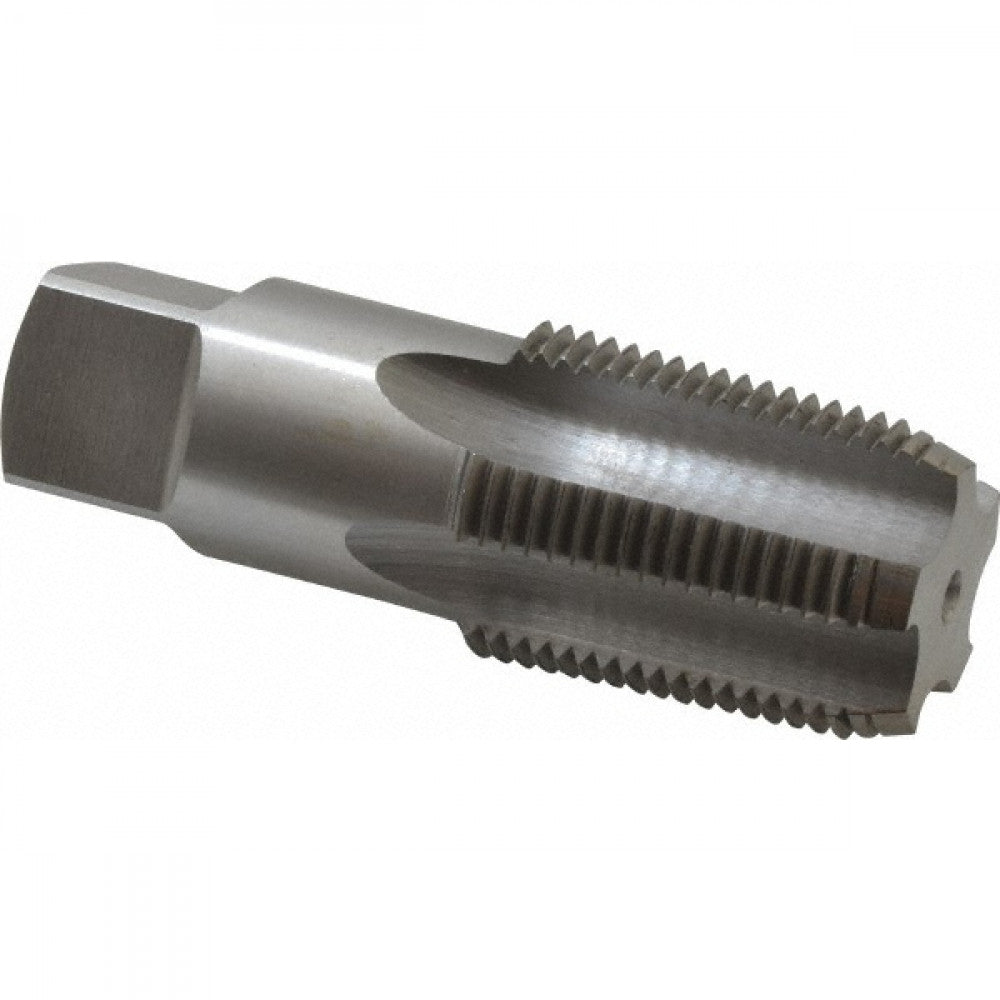

Parallel (straight) thread, British Standard Pipe Parallel thread BSP; originally also known as British Standard Pipe Fitting thread/BSPF which have a constant diameter. For producing precision threads by hand tapping, ideal for through holes.
General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Threads per inch 28
Overall length 59mm
Cutting length 15mm
Drill diameter 8.8mm
General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Threads per inch 28
Overall length 59mm
Cutting length 15mm
Drill diameter 8.8mm
