Description
Series 16M

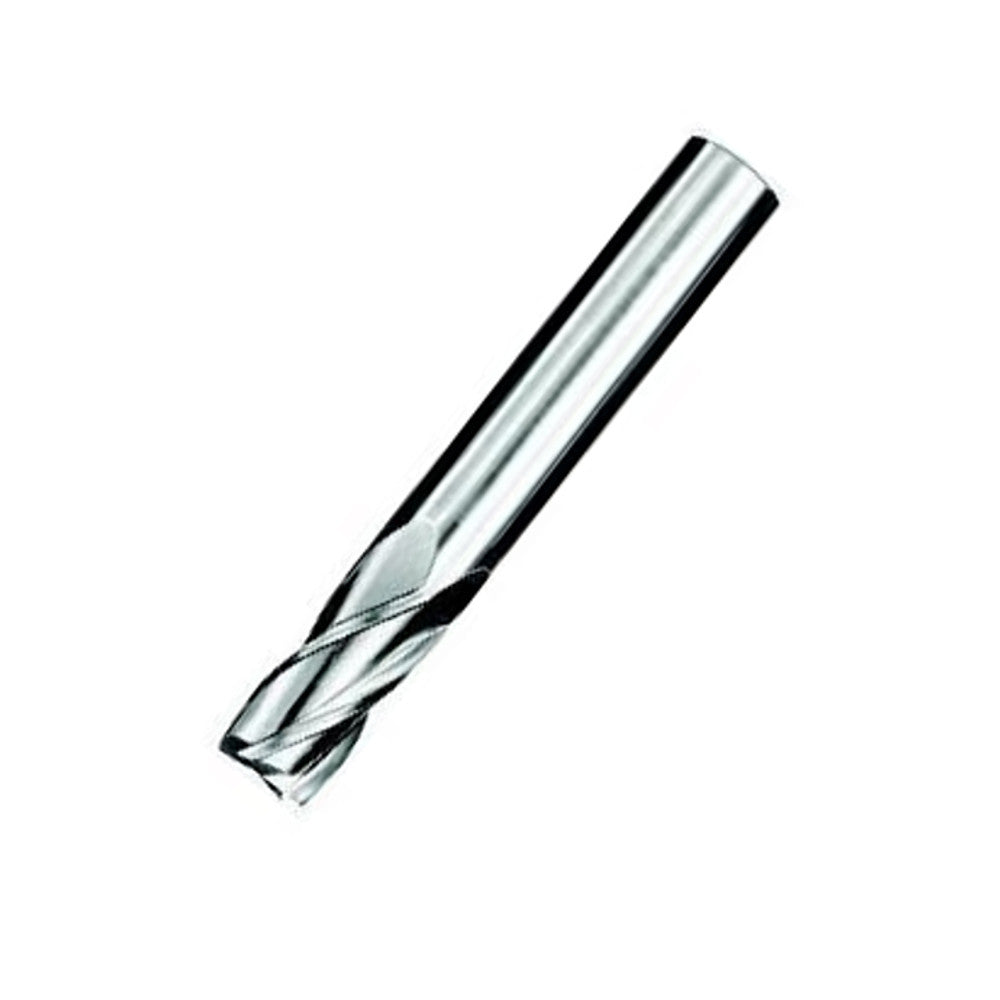

4 Flute End Mills.
Ti-Namite-A Coated Aluminum Titanium Nitride (AlTiN) The most abrasion resistant and hardest coating,
Ti-NAMITE-A is preferred for high speed and dry cutting and recommended for the machining of cast iron, hardened tool steels up to HRc 60 and other heat resistant alloys. Recommended for applications in:
• Cast Iron
• High Temperature Alloy
Micrograin Solid Carbide.
30 degree Right Hand Spiral
Center Cutting.
Square End.
Cutter diameter 10mm
Shank diameter 10mm
Flute length 16mm
Overall length 50mm
