Description

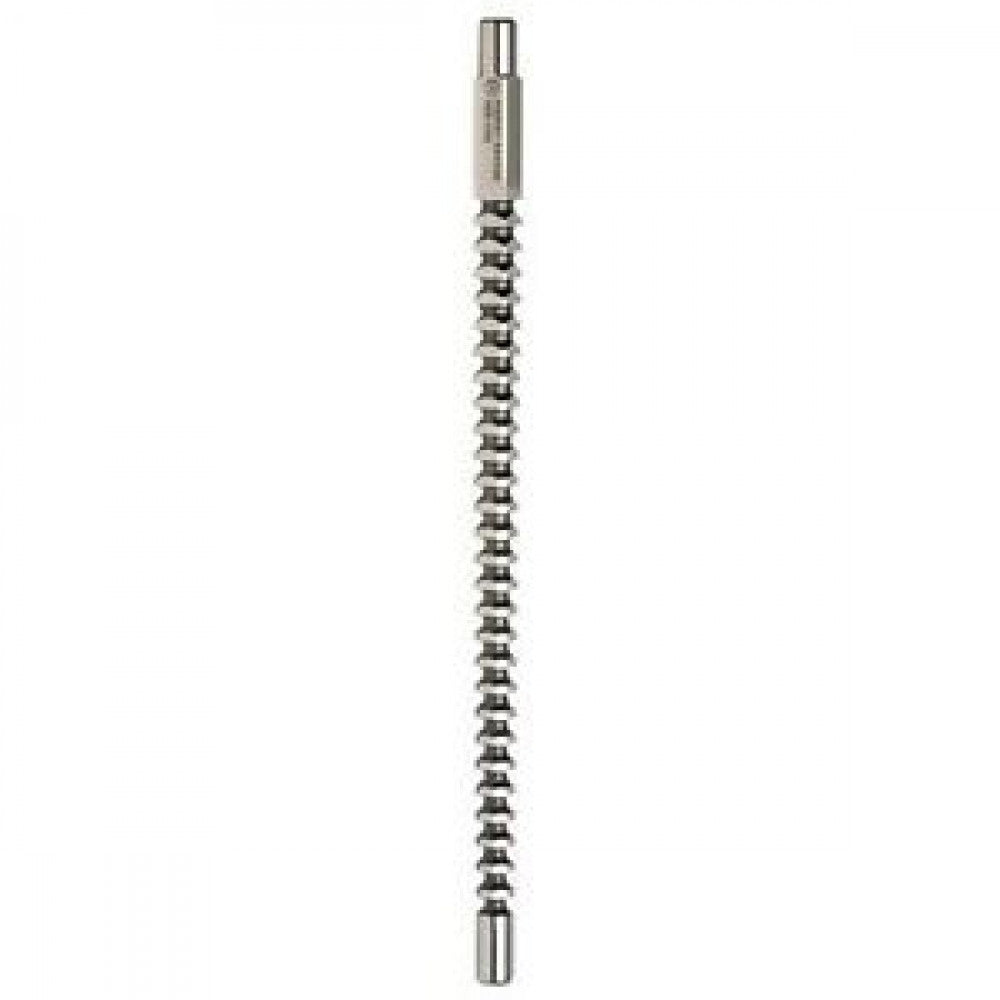

Hassay Savage standard inch and full square broaches are HSS push type; designed for one-pass finishing when used with arbor or hydraulic press, or vertical broaching machine.
Size Square 12 mm
Tolerance .4729" - .4739"
Pilot Diameter .4921"
Min - Max Length of Cut 5/8 - 1 1/4"
Drill Size 12.5 mm
Broach Length 12 1/2"
Size Square 12 mm
Tolerance .4729" - .4739"
Pilot Diameter .4921"
Min - Max Length of Cut 5/8 - 1 1/4"
Drill Size 12.5 mm
Broach Length 12 1/2"
