Description

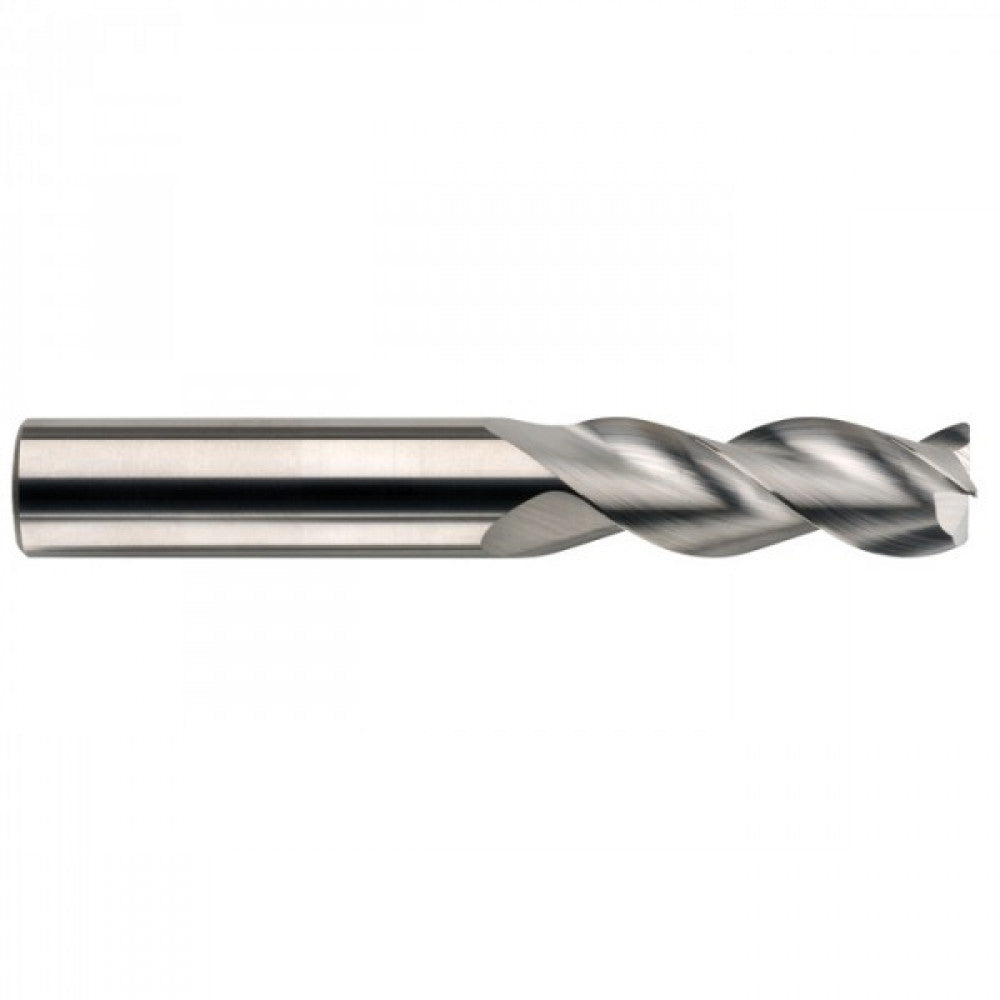

Series 43MCR
S-Carb 3-Flute End Mills with Corner Radius for
Aluminum,Non-Ferrous & Non-Metallic Materials.
The S-Carb end mills are a high performance family of end mills designed for Aluminum, Non-Ferrous and Non-Metallic materials.
Engineered with a specialized flute to effectively manage the large size and volume of chips produced during the aggressive machining process.
Features & Benefits:
Engineered Flute Design
•
Effective chip removal at high feed rates
•
Lower cutting forces than comparable products
Unique Symmetrical End Gashing
•
Improved balance at high spindle speeds
•
Improved workpiece finish through better balance
•
More effective plunging vs conventional designs
Cutter diameter 16mm
Shank diameter 16mm
Corner radius 2.0mm
Flute length 20mm
Overall length 125mm
S-Carb 3-Flute End Mills with Corner Radius for
Aluminum,Non-Ferrous & Non-Metallic Materials.
The S-Carb end mills are a high performance family of end mills designed for Aluminum, Non-Ferrous and Non-Metallic materials.
Engineered with a specialized flute to effectively manage the large size and volume of chips produced during the aggressive machining process.
Features & Benefits:
Engineered Flute Design
•
Effective chip removal at high feed rates
•
Lower cutting forces than comparable products
Unique Symmetrical End Gashing
•
Improved balance at high spindle speeds
•
Improved workpiece finish through better balance
•
More effective plunging vs conventional designs
Cutter diameter 16mm
Shank diameter 16mm
Corner radius 2.0mm
Flute length 20mm
Overall length 125mm
