Description

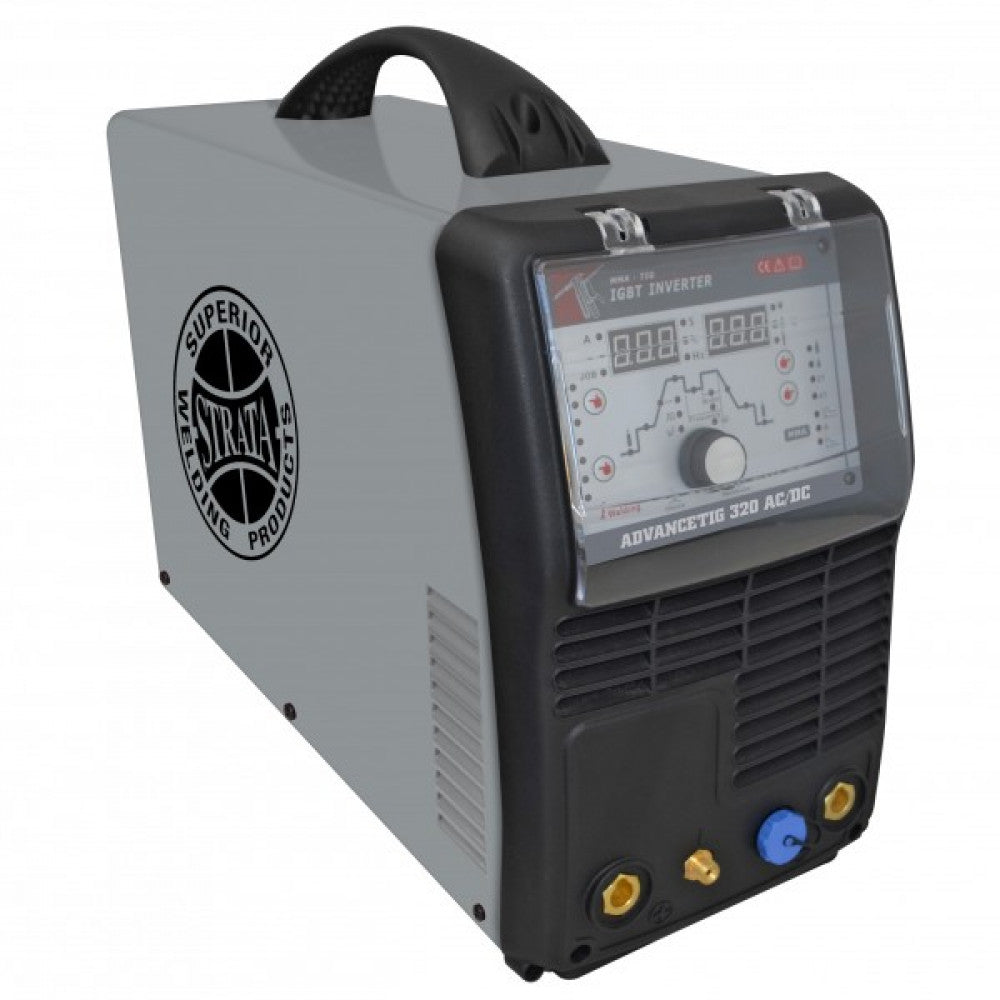

The ADVANCETIG Series are at the top of their class featuring state-of-the-art IGBT technology. Results speak for themselves, achieved with top level features such as adjustable arc force,AC wave and a program saving function. Designed tough to last in rugged NZ workshops and onsite tasks.
Dimensions 550x240x445mm
Weight 25kg
Input Power Supply 400V AC 3 Phase 32A 50/60Hz
Input Power Supply Tolerance +/-10%
Maximum Input Current 25A
Generator Capacity 17.3KVA
MMA Current Output 10A-320A
MMA O/C Voltage 61V
MMA Duty Cycle 320A@60%,
250A@100%
AC/DC TIG Current Output 10-320A
DC TIG Duty Cycle 320A@60%, 250A@100%
AC TIG Duty Cycle 320A@60%, 250A@100%
TIG Upslope/Down Slope Adjustment 0-10S
TIG Gas Post Flow/Pre Flow Adjustment 0-2/0-10S
TIG Pulse Frequency 0.5-900Hz
TIG Pulse Width Range 5-95%
AC TIG Waveform Square wave, Sine wave, Triangular wave
AC Frequency Adjustment 50-250Hz
Insulation Class IP23
Power Efficiency 85%
Power Factor 0.75
Standards EN60974-1:2012
MMA Rod Size 1.6-5.0mm
Warranty Commercial 12 month extends to 36 month with product registration
