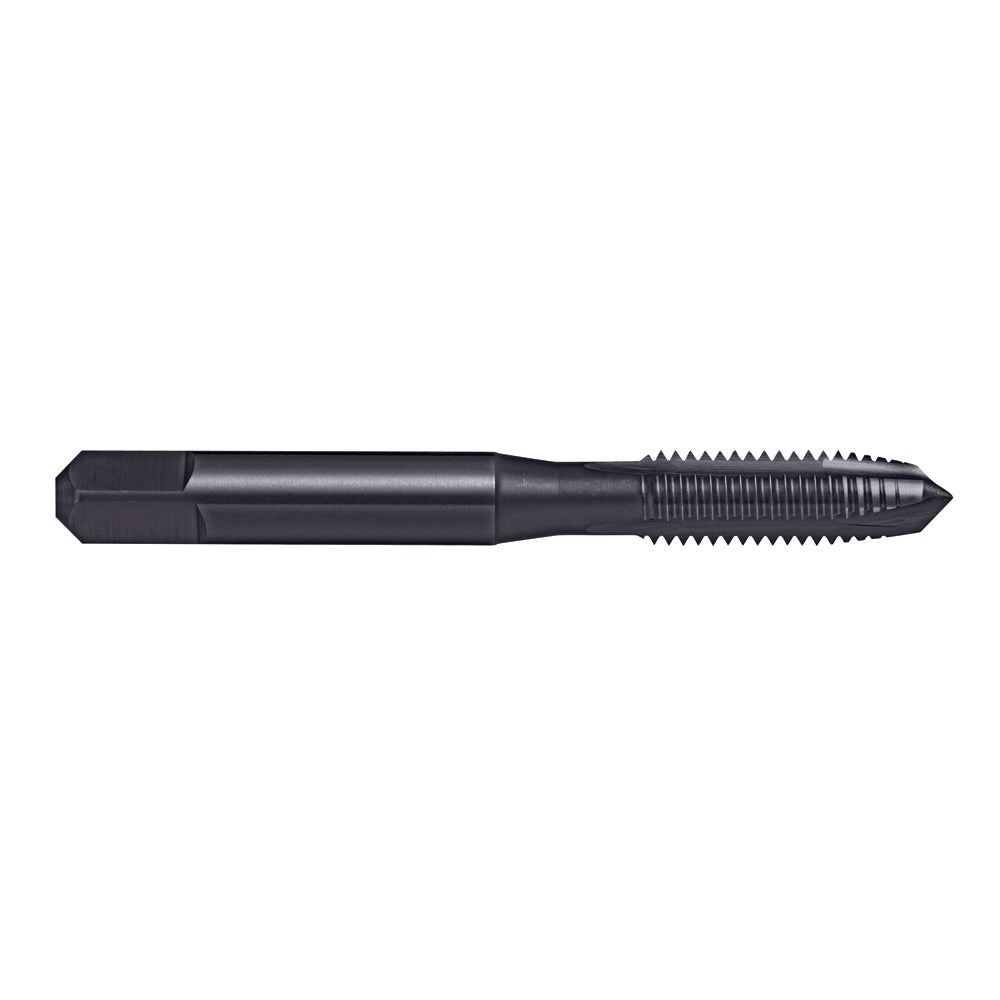

3/4" UNC HSSE V3 Blue Spiral Point Tap ISO529 T4231905
Description
Spiral Point or Gun Nose taps are mainly used for Machine Tapping of through holes.
The point helps to direct the chips ahead of the tap leaving the flutes clear for the free flow of coolant to the cutting edge.
Suitable for materials up to 1000N/mm2
Threads per inch 10
Overall length 112mm
Cutting length 37mm
Drill diameter 16.5mm
The point helps to direct the chips ahead of the tap leaving the flutes clear for the free flow of coolant to the cutting edge.
Suitable for materials up to 1000N/mm2
Threads per inch 10
Overall length 112mm
Cutting length 37mm
Drill diameter 16.5mm
