Description
Series 47MB

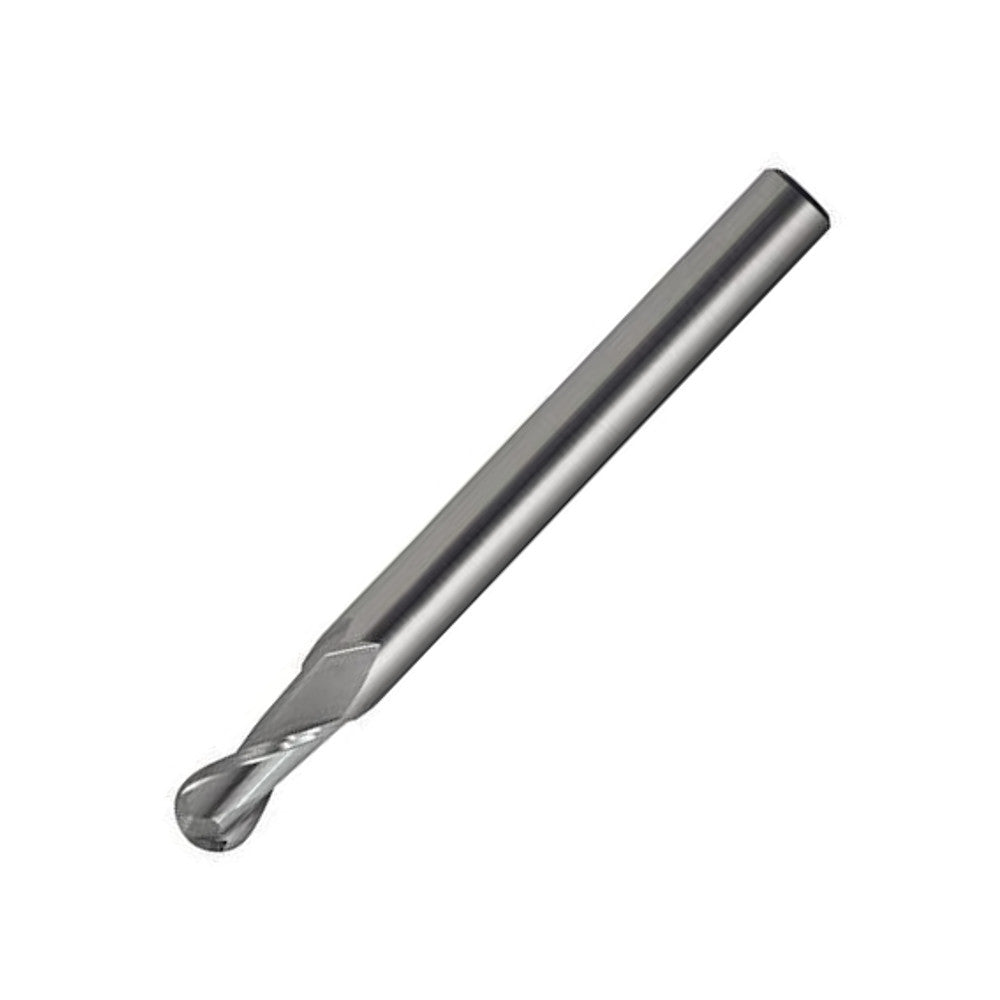

The S-Carb end mills are a high performance family of end mills designed for Aluminum, Non-Ferrous and Non-Metallic materials. Engineered with a specialized flute to effectively manage the large size and volume of chips produced during the aggressive machining process.
Features & Benefits:
• Engineered Flute Design
• Effective chip removal at high feed rates
• Lower cutting forces than comparable products
• Unique Symmetrical End Gashing
• Improved balance at high spindle speeds
• Improved workpiece finish through better balance
• More effective plunging vs conventional designs
Cutter diameter 3mm
Shank diameter 3mm
Flute length 8mm
Overall length 38mm
The S-Carb end mills are a high performance family of end mills designed for Aluminum, Non-Ferrous and Non-Metallic materials. Engineered with a specialized flute to effectively manage the large size and volume of chips produced during the aggressive machining process.
Features & Benefits:
• Engineered Flute Design
• Effective chip removal at high feed rates
• Lower cutting forces than comparable products
• Unique Symmetrical End Gashing
• Improved balance at high spindle speeds
• Improved workpiece finish through better balance
• More effective plunging vs conventional designs
Cutter diameter 3mm
Shank diameter 3mm
Flute length 8mm
Overall length 38mm
