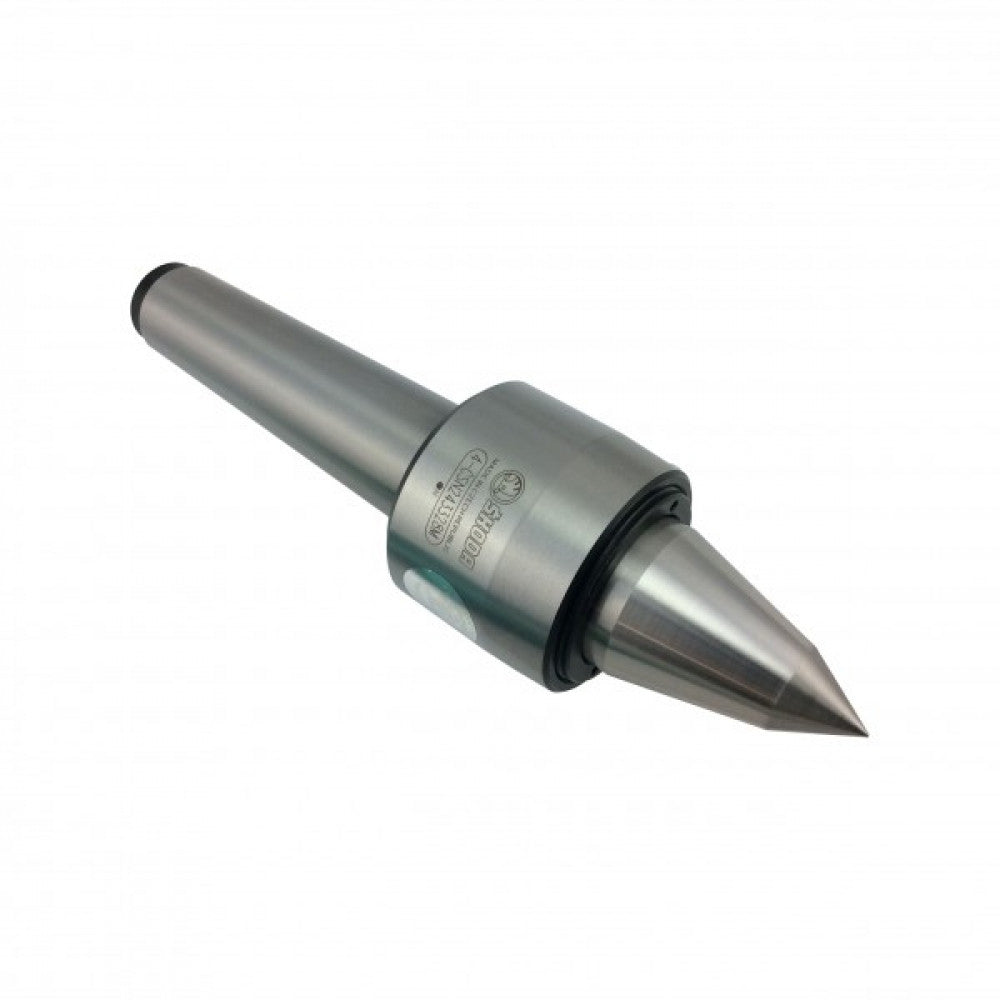

Description

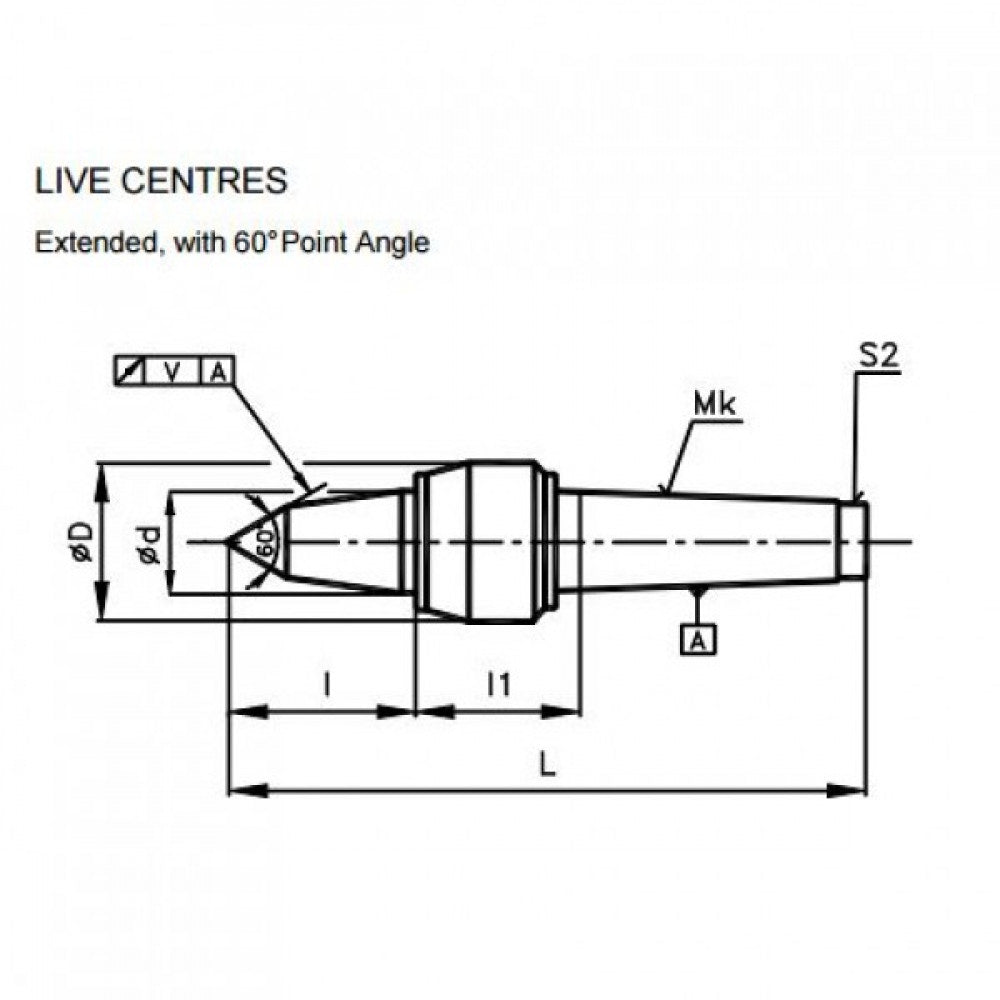

Extended point , with 60 degree Point Angle
The centres are intended for work on lathes.
Their extended Point section allows for easier access of the tool to workpiece.
Morse taper 3
Overall length (L) 167mm
Point length (I) 37mm
Body diameter (D) 47mm
Point major diameter (d) 30mm
Max speed 5000rpm
Max weight 320kg
The centres are intended for work on lathes.
Their extended Point section allows for easier access of the tool to workpiece.
Morse taper 3
Overall length (L) 167mm
Point length (I) 37mm
Body diameter (D) 47mm
Point major diameter (d) 30mm
Max speed 5000rpm
Max weight 320kg
