Description
Fixture Clamps

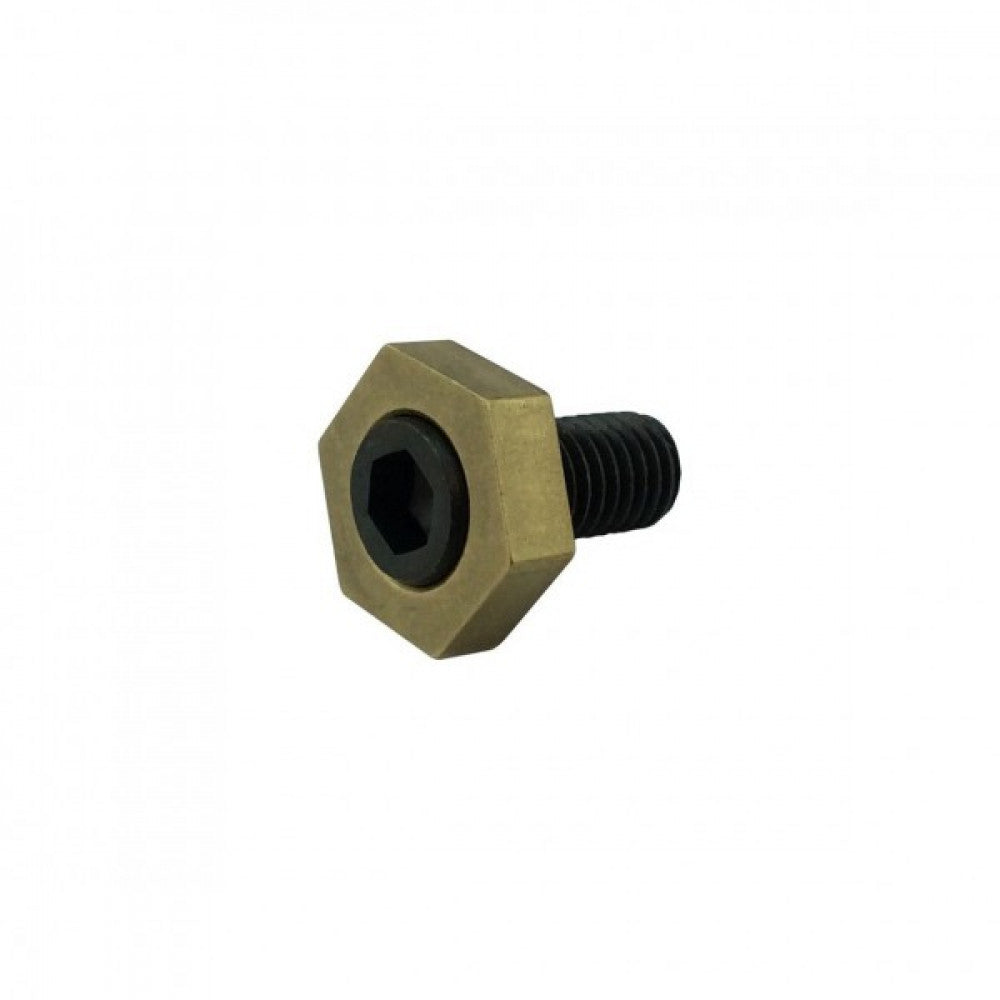

The Cam Action MITEE-BITE Fixture Clamp is made up of two simple components: a hardened steel socket cap screw with an offset head and a brass hexagonal washer.
– Low profile for quick and easy installation for linear motion guide rails
– Cam action provides fast, strong clamping
– Small size allows more parts per load
– Simple design keeps cost low
NOTE: Clockwise rotation is recommended. Locating pin should be on the right of workpiece.

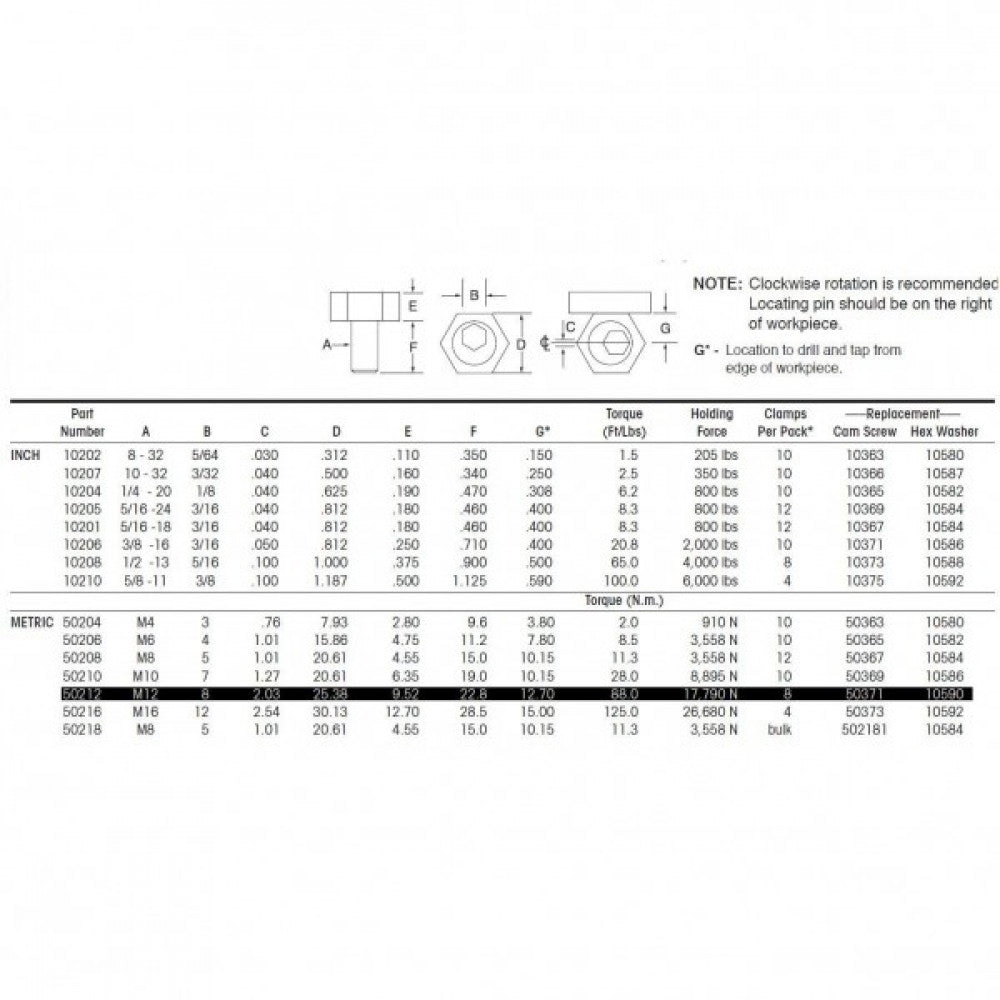

Screw Size x Length: M12 x 1.75 x 25mm
Hex Height: 9.52mm
Maximum Holding Force: 1780kg
