A1 Quick Knurl Tool Set
Move your mouse over image or click to enlarge
A1 Quick Knurl Tool Set A1 Quick Knurl Tool Set A1 Quick Knurl Tool Set
A1 Quick Knurl Tool Set A1 Quick Knurl Tool Set

A1 Quick Knurl Tool Set

$2,960.05


Cut Knurling
Maximum precision and surface quality; it is even possible to knurl thin-walled workpieces with no deformation.
Another advantage is the time saved due to the higher cutting speed and feed rate.
Virtually any material can be machined, including grey cast iron and plastic.
However, knurling to the shoulder of a workpiece is possible only to a limited extent.

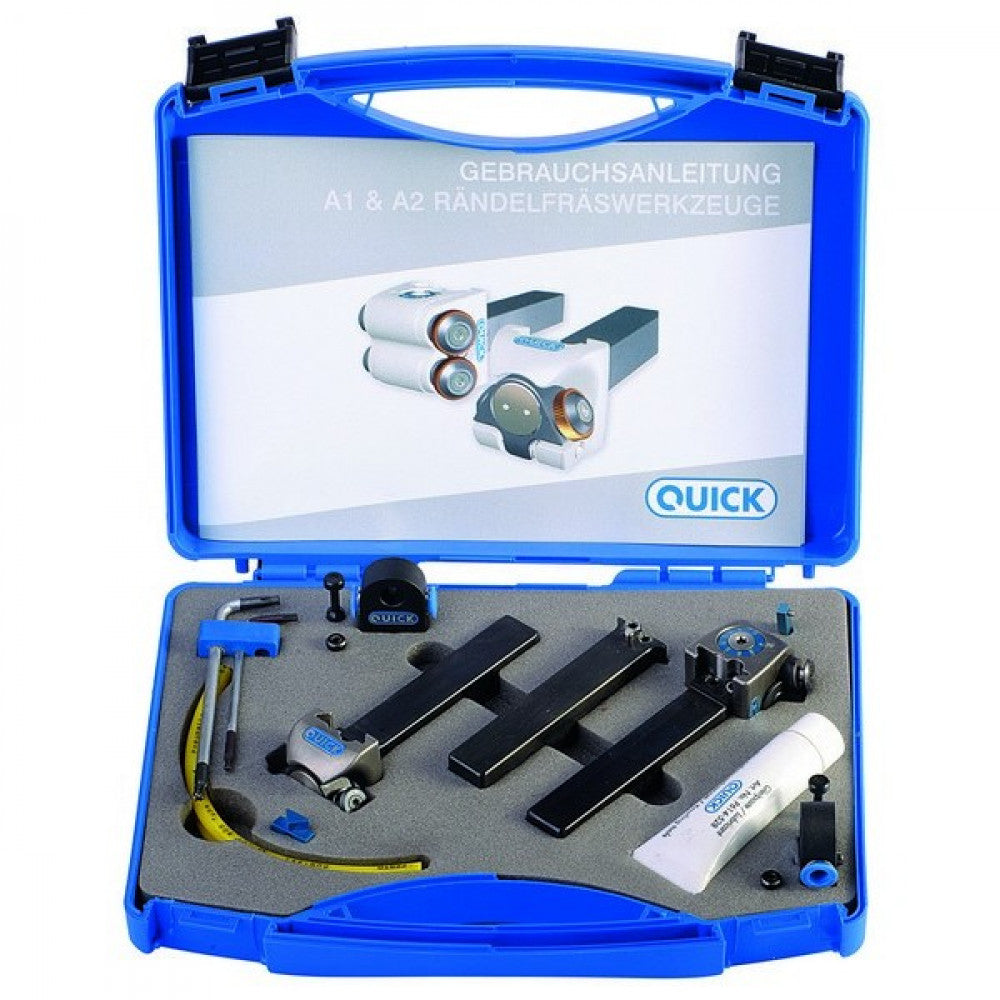

The A1 set includes the tools A1/FL and A1/KF.

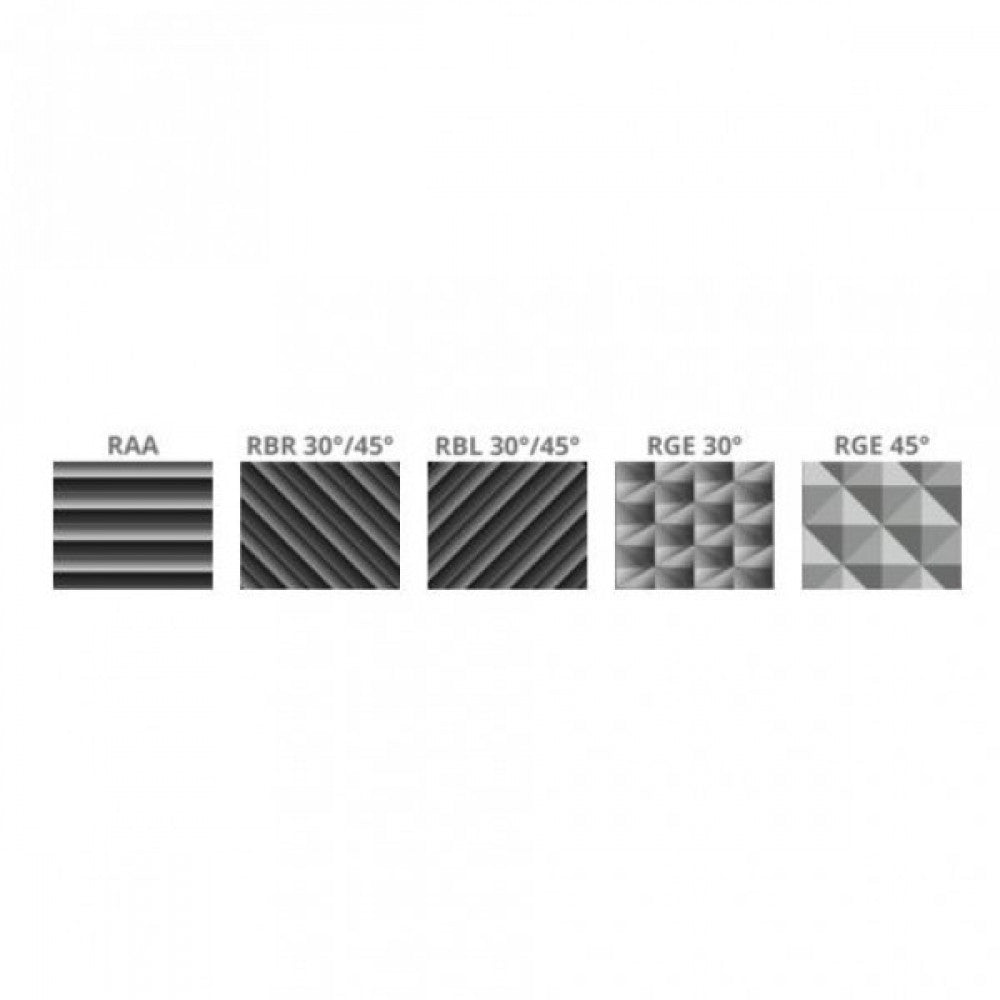

It can be used to produce all common knurl cutting profiles.
Another advantage is the patented coolant nozzle.
It creates a perfect knurl pattern and also extends the tool life.

Work piece; 3 - 50 mm diameter
Shank diameter / L: 10x16, 12x16, 16x16
Knurling wheels; 14,5 mm diameter
Machine type: conventional and CNC-controlled lathes

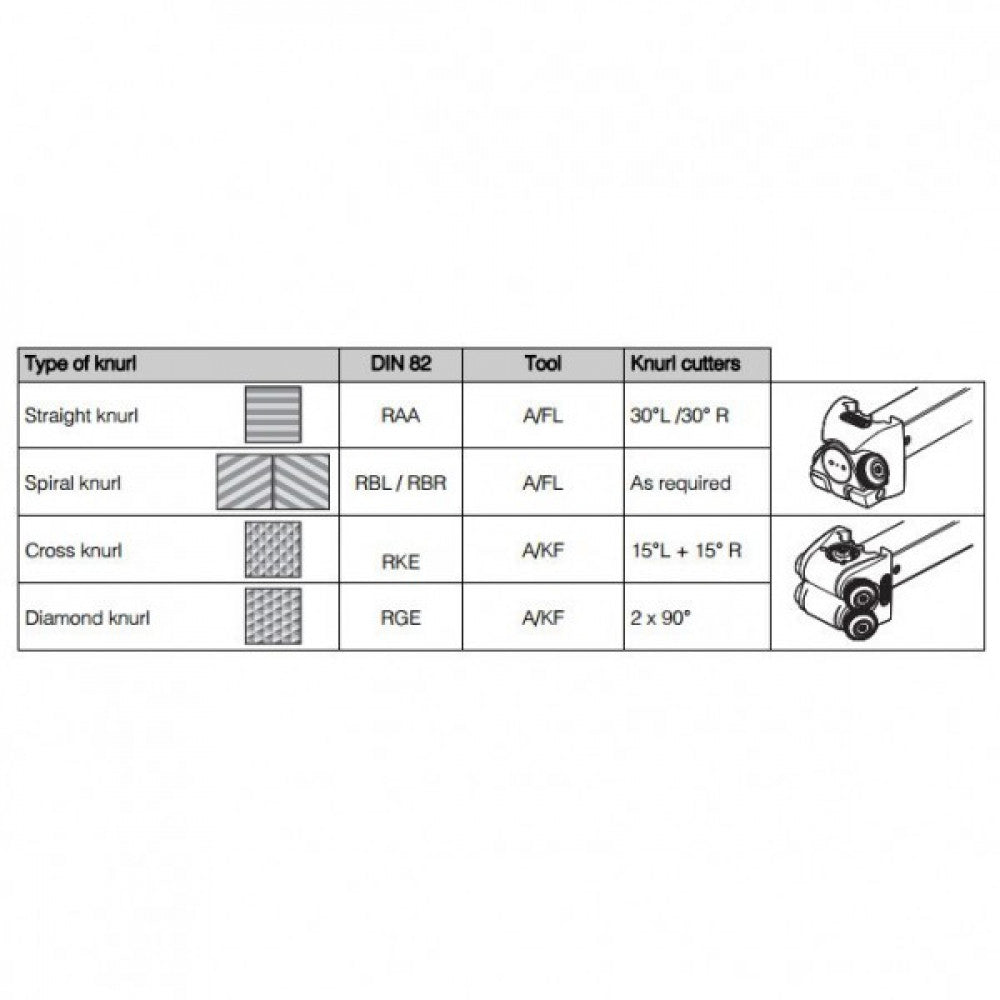

A1/KF
Types of knurl; Cross and diamond
Working range ; 3-50 mm diameter
Shaft dimension; 10x16, 12x16 or 16x16 mm
Knurl cutters ; 14.5 mm diameter
Cross knurls 1 x 15 degree left and 1 x 15 degree right
Diamond knurls; 2 x 90 degree

A1/FL
Types of knurl: Straight and spiral
Working range: 3-50 mm diameter
Shaft dimension; 10x16, 12x16 or 16x16 mm
Knurl cutters; 14.5 mm diameter
Straight 1 x 30 degree left / 30 degree right
Spiral As required.
KNURL WHEELS NOT INCLUDED
