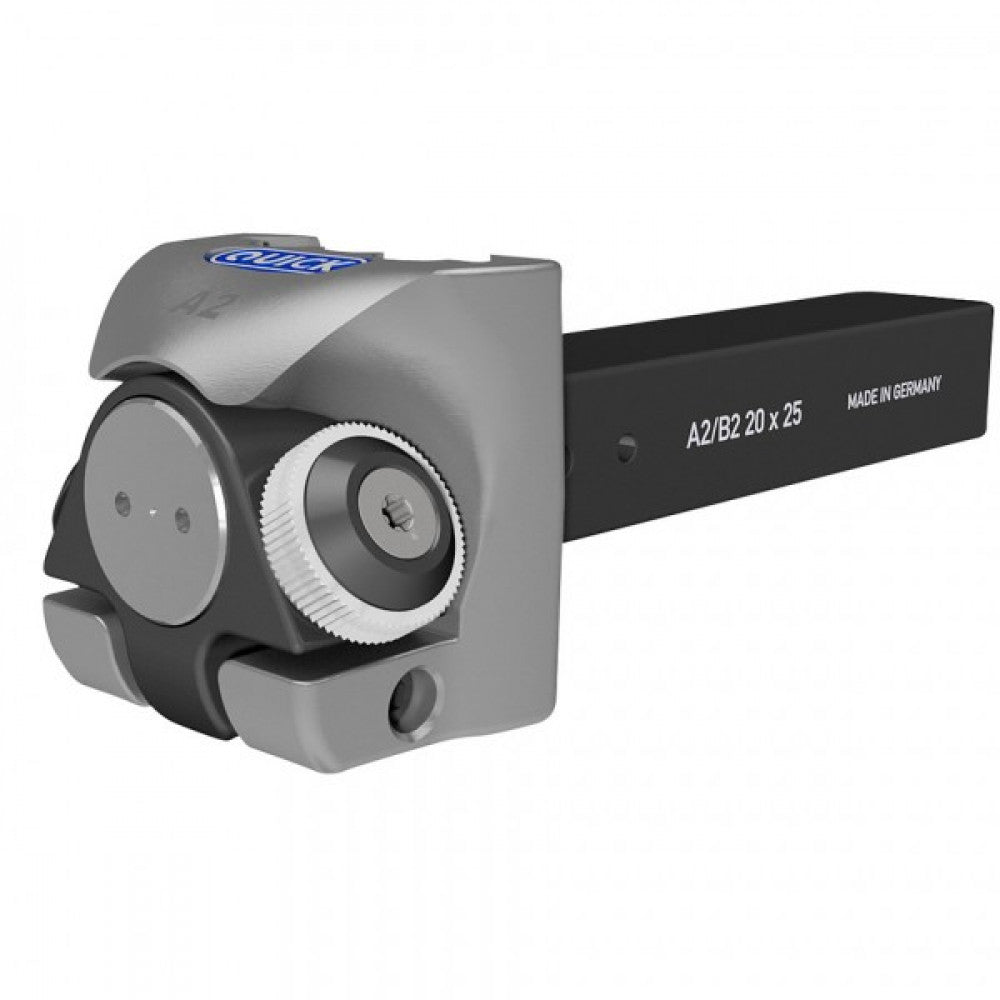

A2/FL-25 Quick Knurl Tool 5mm - 250mmØ Capacity For Straight & Spiral Knurling

MillerSKU: 6860160

Price:
Sale price$1,607.65
or 4 interest free payments of 25% on orders over $50
Learn more
Stock:
1 in stock

Description

Cut Knurling
Maximum precision and surface quality; it is even possible to knurl thin-walled workpieces with no deformation. Another advantage is the time saved due to the higher cutting speed and feed rate.
Virtually any material can be machined, including grey cast iron and plastic.
However, knurling to the shoulder of a workpiece is possible only to a limited extent.

The A2/FL and A2/KF can be used as a left-hand or right-hand
tool on the main and sub spindle of CNC and conventional lathes.
A2 shanks 20x25, 25x25 can be used for the A2/FL and A2/KF tool bodies.
The tool bodies of the A2 series are mounted using backlash-free surface clamping.
The vibrations caused by the machining process are
reduced by
backlash-free surface clamping and can be dampened
effectively.
This prolongs the service life of the knurling wheel. Benefits:
Reduced stock thanks to extreme versatility
Compact size
Simple and precise fine adjustment of the tool body: The diameter is easy to adjust using the double-sided index disc, irrespective of whether the machining is performed in front of or behind the turning centre, upside down or on main- and sub
spindle.
A backlash-free worm gear unit guarantees a simultaneous parallel contact of the wheel on the workpiece

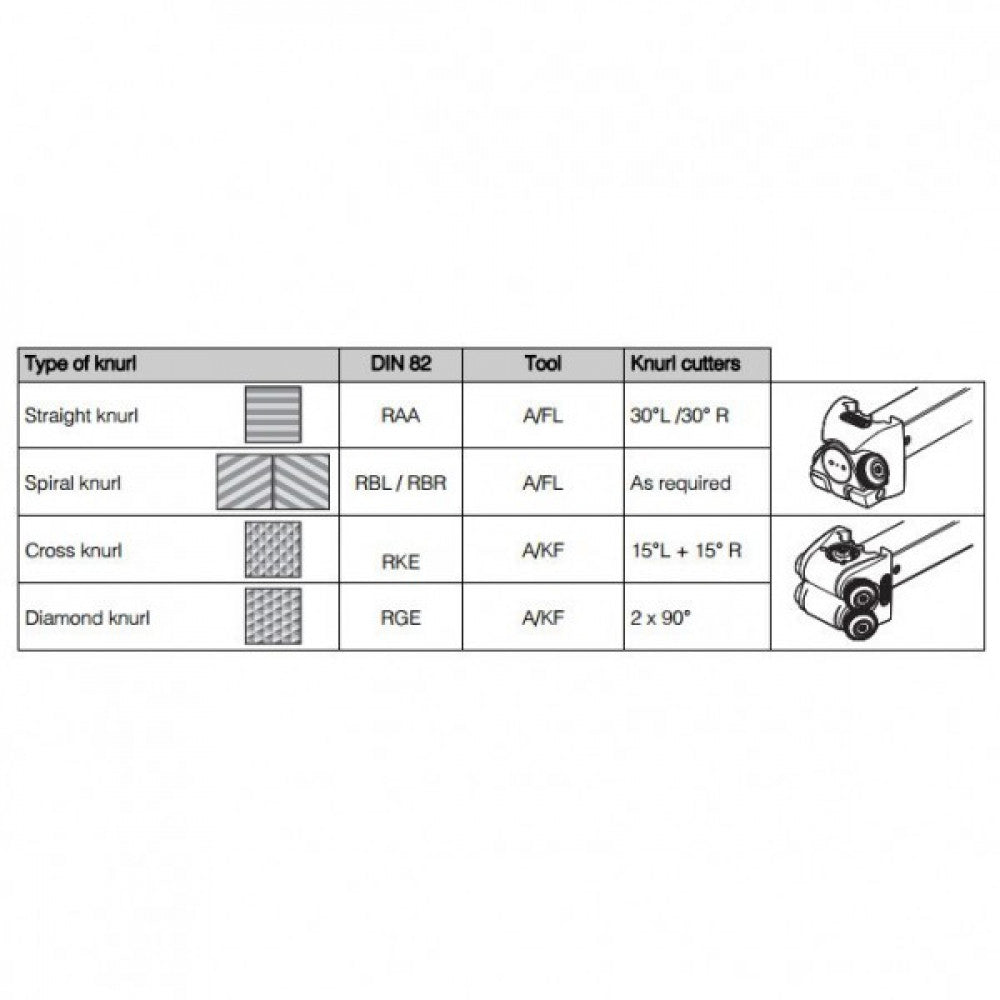

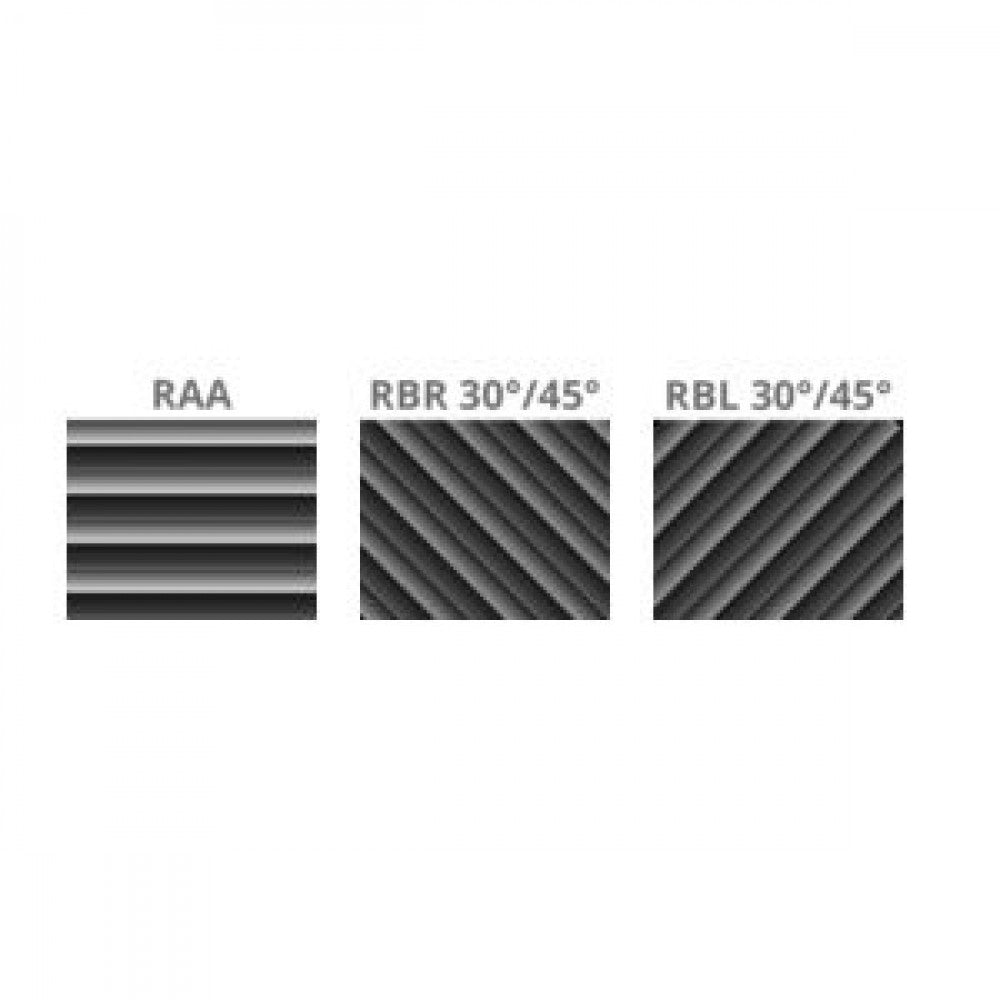

Types of knurl: Straight and spiral
Work piece: 5 - 250 mm diameter
Shank diameter / L: 25x25
Knurling wheels: 21,5 mm diameter
Straight knurl: 1 x 30 degree Left / 30 degree Right Spiral knurl; As required
Machine type: conventional and CNC-controlled lathes. KNURL WHEELS NOT INCLUDED.
