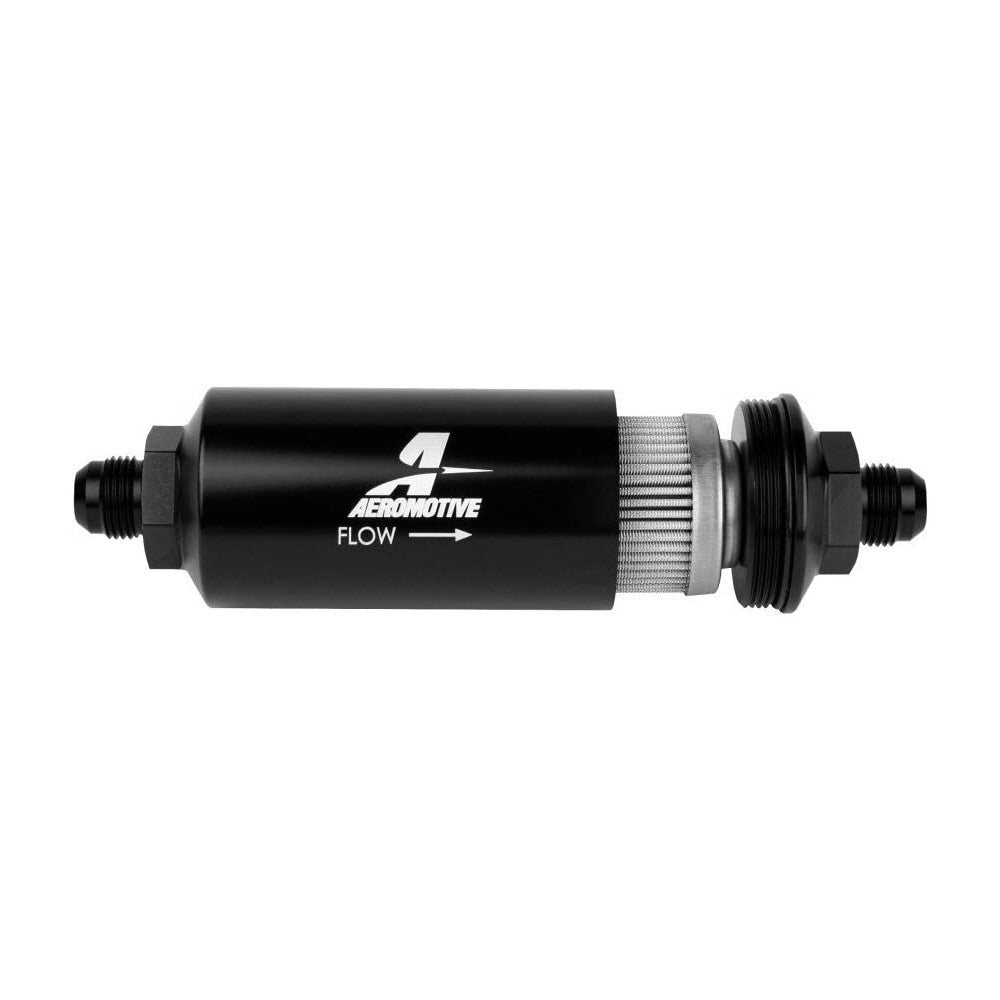

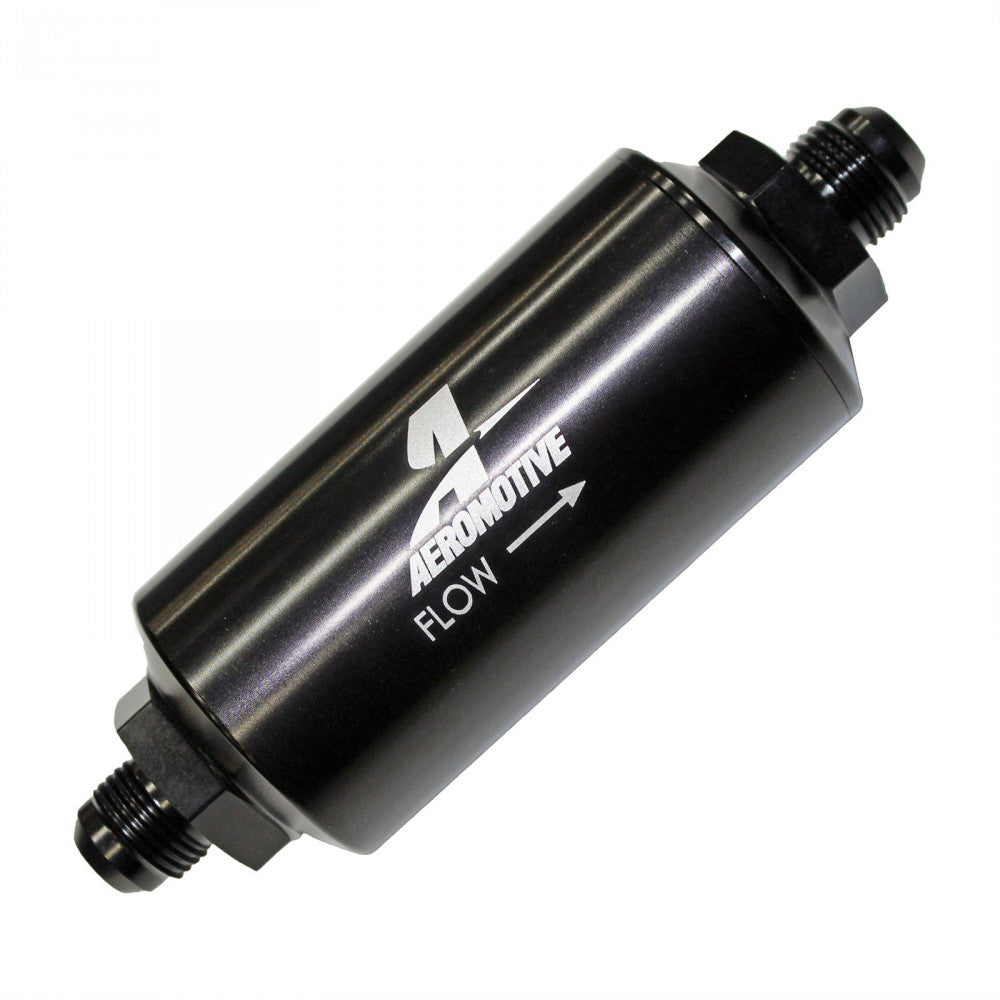

Aeromotive Fuel Filter Billet 100 Mic An-08 Inline Stainless Steel Element,Black

Aeromotive fuel filters feature an advanced flow-through design to allow for steady fuel flow with less than a .15 psi pressure drop. Designed for carbureted or fuel injected engines from 200 to 3,000 hp, they're made from 6061-T651 aluminum alloy with the impeccable machining and finish you've come to expect from all Aeromotive components. The filters are available in a variety of size options for all types of fuel.

Specifications :

Part Type: Fuel Filters

Fuel Filter Style: Inline

Inlet Quantity: One

Fuel Filter Inlet Size:-8 AN

Inlet Attachment: Male threads

Fuel Injection : CARB or EFI

Outlet Quantity:1

Fuel Filter Outlet Size:-8 AN

Outlet Attachment: Male threads

Filter Element Included: Yes

Smallest Particle Filtered: 100 microns

Filter Element Material: Stainless steel mesh

Filter Housing Material: Billet aluminum

Filter Housing Finish: Black anodized

Overall Length : 5.500"

Outside Diameter: 2.000"

Mounting Bracket Included: No

Fittings Included: No

Clamps Included: No

Maximum Fuel Pressure :250 psi

Quantity: Sold Each
