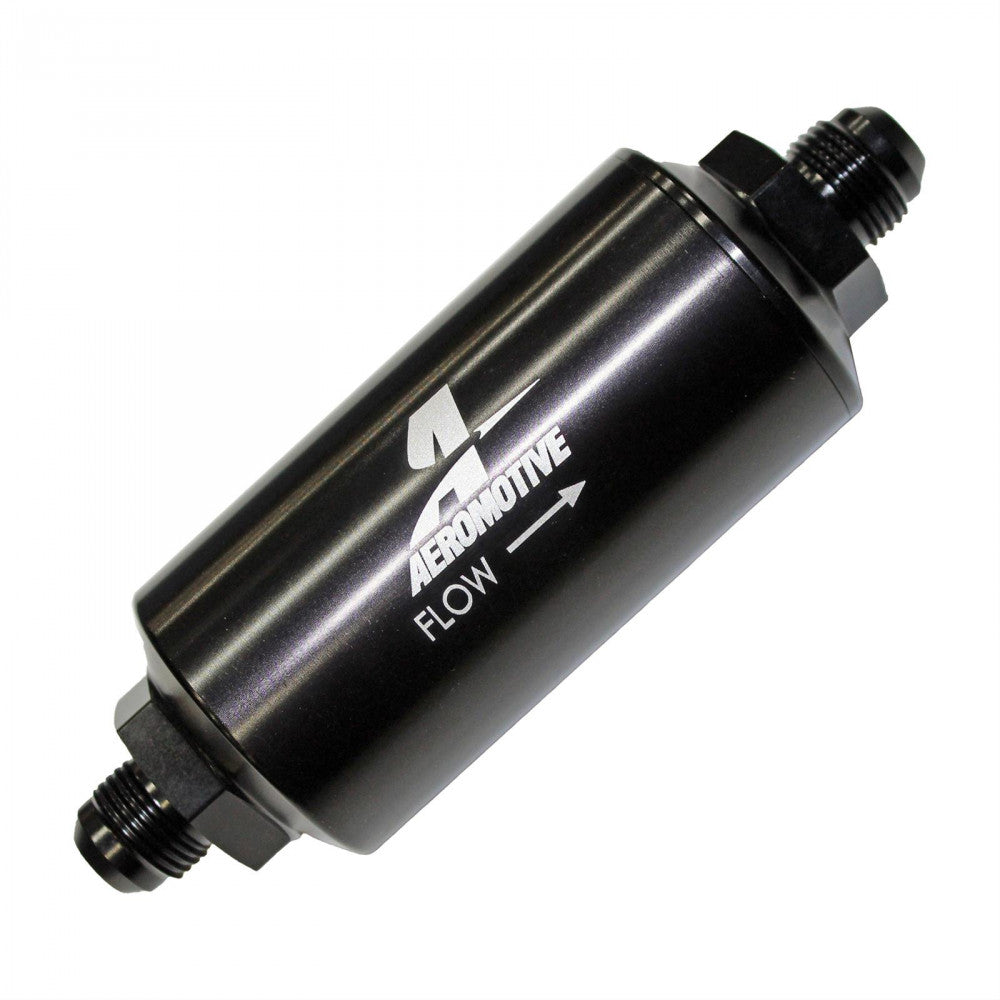

Aeromotive Fuel Filter Billet 40 Mic. AN-10 Inline Stainless-Steel Element,Black

Aeromotive fuel filters feature an advanced flow-through design to allow for steady fuel flow with less than a .15 psi pressure drop. Designed for carbureted or fuel injected engines from 200 to 3,000 hp, they're made from 6061-T651 aluminum alloy with the impeccable machining and finish you've come to expect from all Aeromotive components. The filters are available in a variety of size options for all types of fuel.

Features :

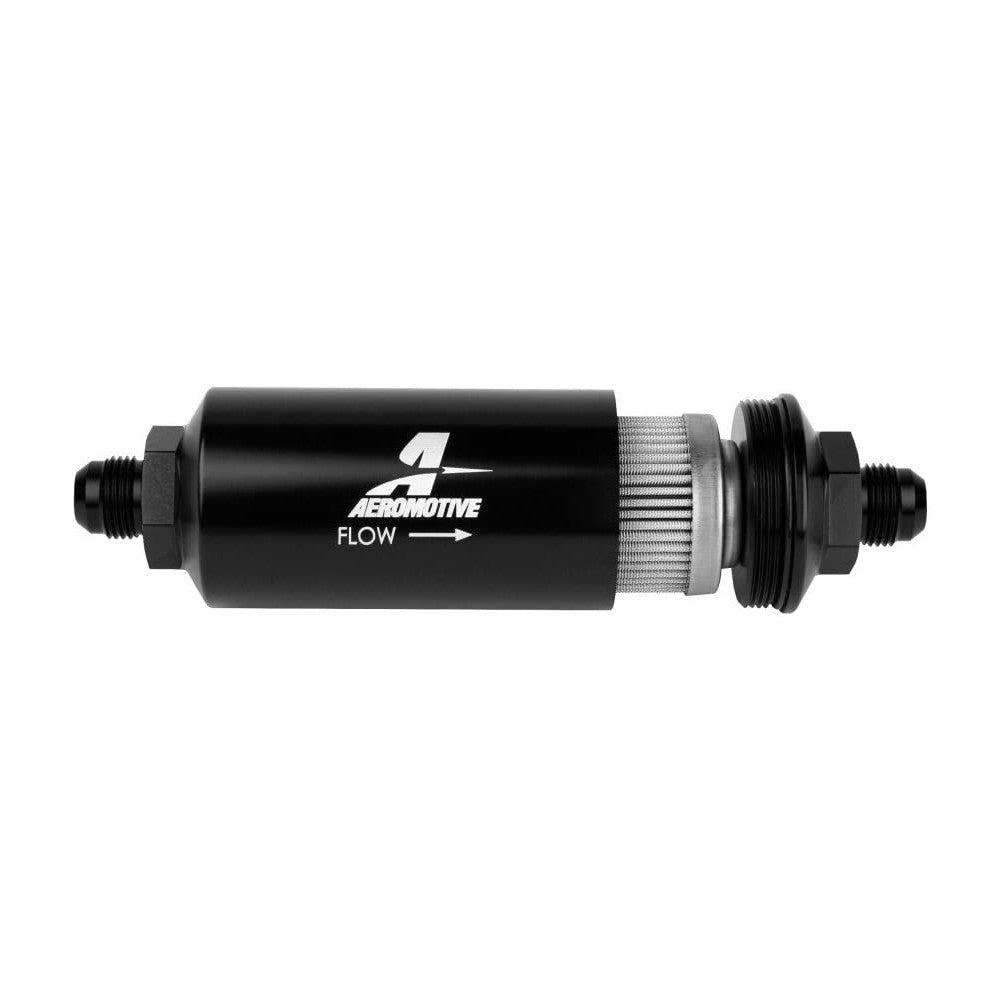

High-flow, 40-micron Stainless replaceable element.
Flows 2,000 lb/hr with a pressure drop of less than 1 PSI.
Male AN-10
All filter assemblies feature an O-ring for positive sealing in high pressure applications.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
CNC-machined from 6061-T6 aircraft aluminum.
Bright dip black anodized finish for a corrosion resistant, show car quality appearance.

Specifications :

Part Type: Fuel Filters

Fuel Filter Style: Inline

Inlet Quantity: One

Fuel Filter Inlet Size:-10 AN

Inlet Attachment: Male threads

Outlet Quantity: 1

Fuel Filter Outlet Size: -10 AN

Outlet Attachment: Male threads

Filter Element Included: Yes

Smallest Particle Filtered: 40 microns

Filter Element Material: Stainless steel mesh

Filter Housing Material: Billet aluminum

Filter Housing Finish: Black anodized

Overall Length :5.500 "

Outside Diameter :2.000"

Mounting Bracket Included: No

Fittings Included: No

Clamps Included: No

Maximum Fuel Pressure: 250 psi

Quantity: Sold Each
