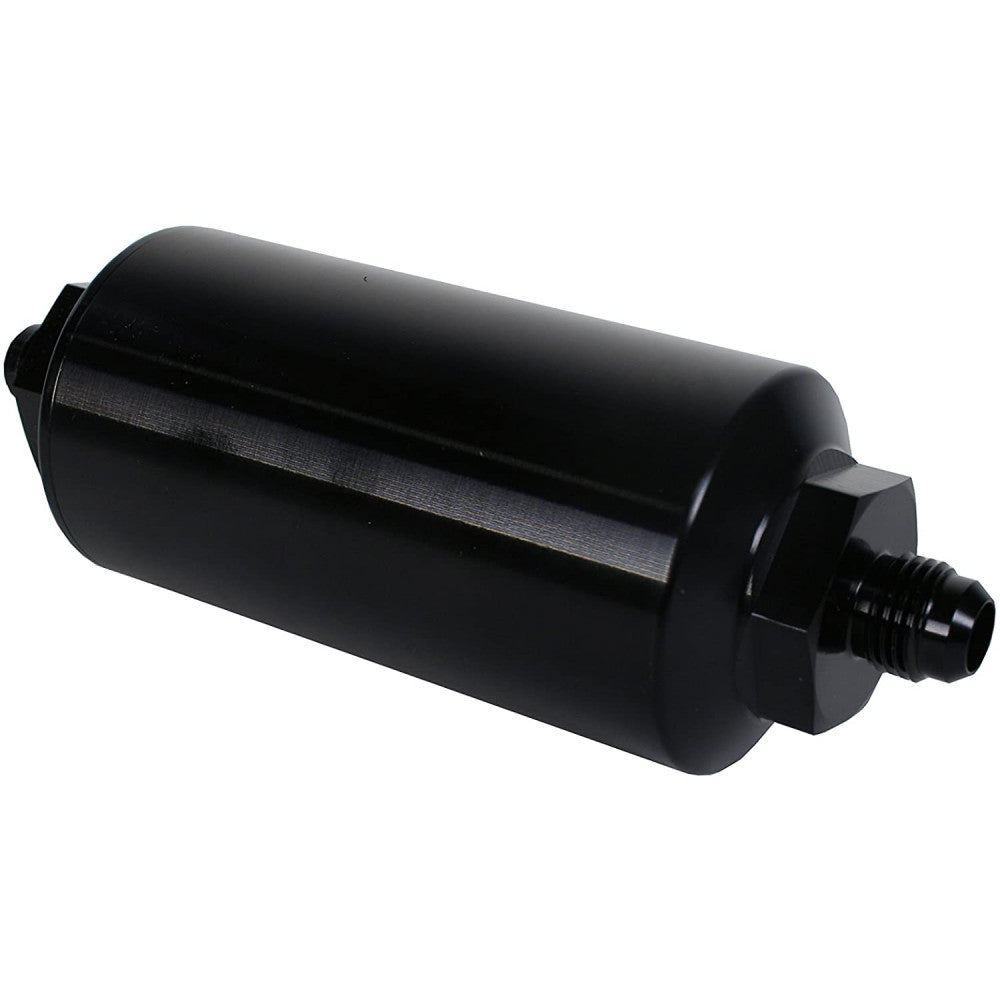

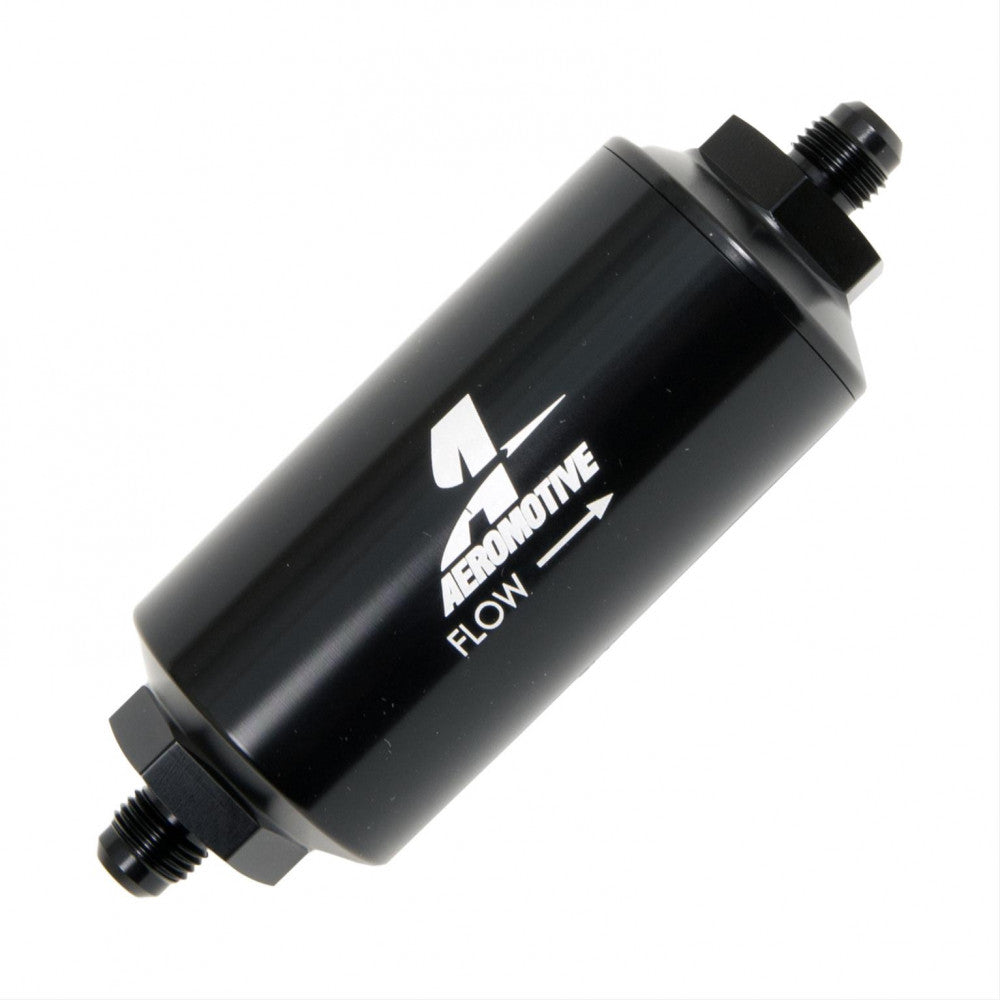

Aeromotive Fuel Filter Billet 40 Microns AN-06 Inline Black Each#12348

Aeromotive In-Line Fuel Filters are designed to be used in vehicles ranging from 200 to 2000+ HP, feature unmatched flow, easy installation, and simple maintenance. Aeromotive has come to offer one of the broadest and finest selections of performance fuel filters, including a Platinum Series with a show-quality finish.

Features :

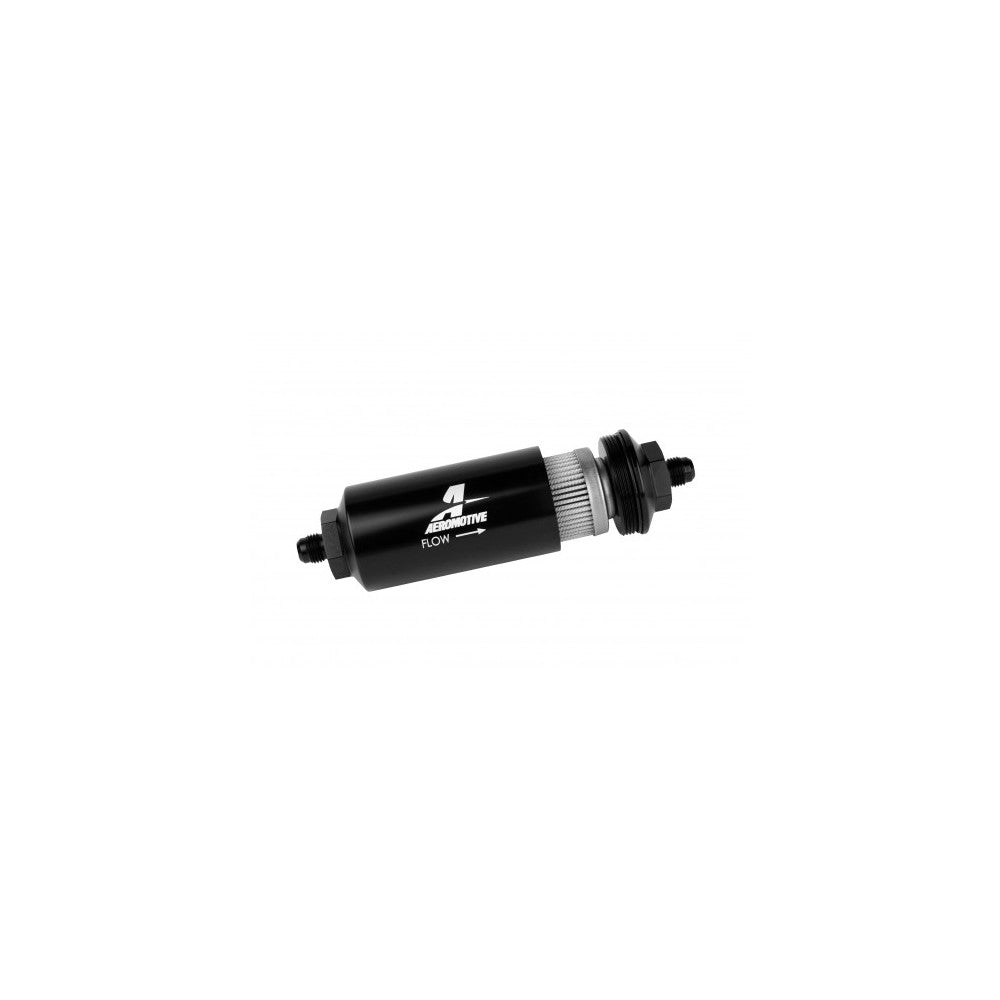

High-flow, 40-micron cellulose replaceable element.
Flows 2,000 lb./hr. with a pressure drop of less than 1 PSI.
All filter assemblies feature an O-ring for positive sealing in high pressure applications.
CNC-machined from 6061-T6 aircraft aluminum.
Bright dip black anodized finish for a corrosion resistant, show car quality appearance.

Specifications :

Part Type: Fuel Filters

Fuel Filter Style: Inline

Inlet Quantity: One

Fuel Filter Inlet Size: 6 AN

Inlet Attachment: Male threads

Outlet Quantity: 1

Fitment : Universal

Fuel Type : Alcohol, Diesel, Flex, Gasoline

Fuel Delivery: Carburetor, Fuel injection

Fuel Filter Outlet Size: 6 AN

Outlet Attachment: Male threads

Filter Element Included: Yes

Smallest Particle Filtered: 40 microns

Filter Element Material: Stainless steel mesh

Filter Housing Material: Billet aluminum

Filter Housing Finish: Black anodized

Overall Length (in.): 5.500"

Outside Diameter (in.): 2.000"

Mounting Bracket Included: No

Fittings Included: No

Clamps Included: No

Maximum Fuel Pressure: 250 psi

Mounting Configuration: External

Quantity: Sold Each
