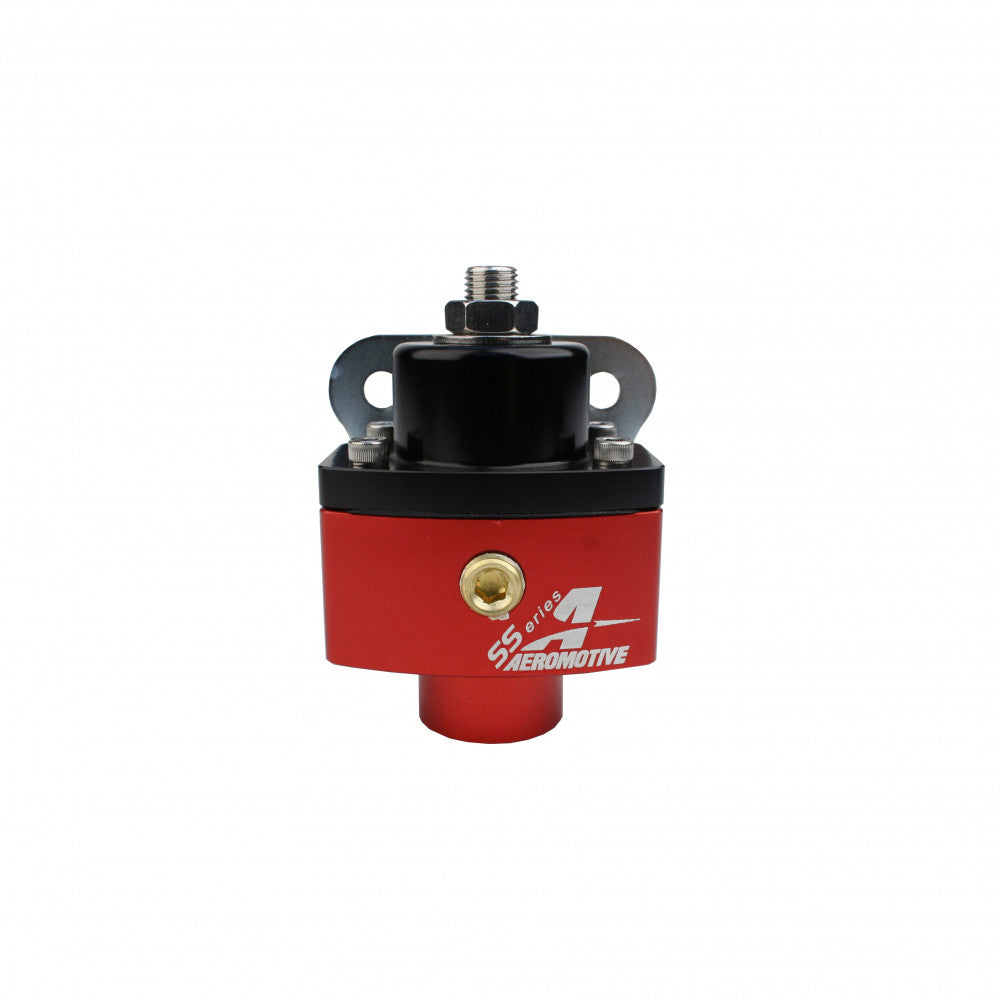

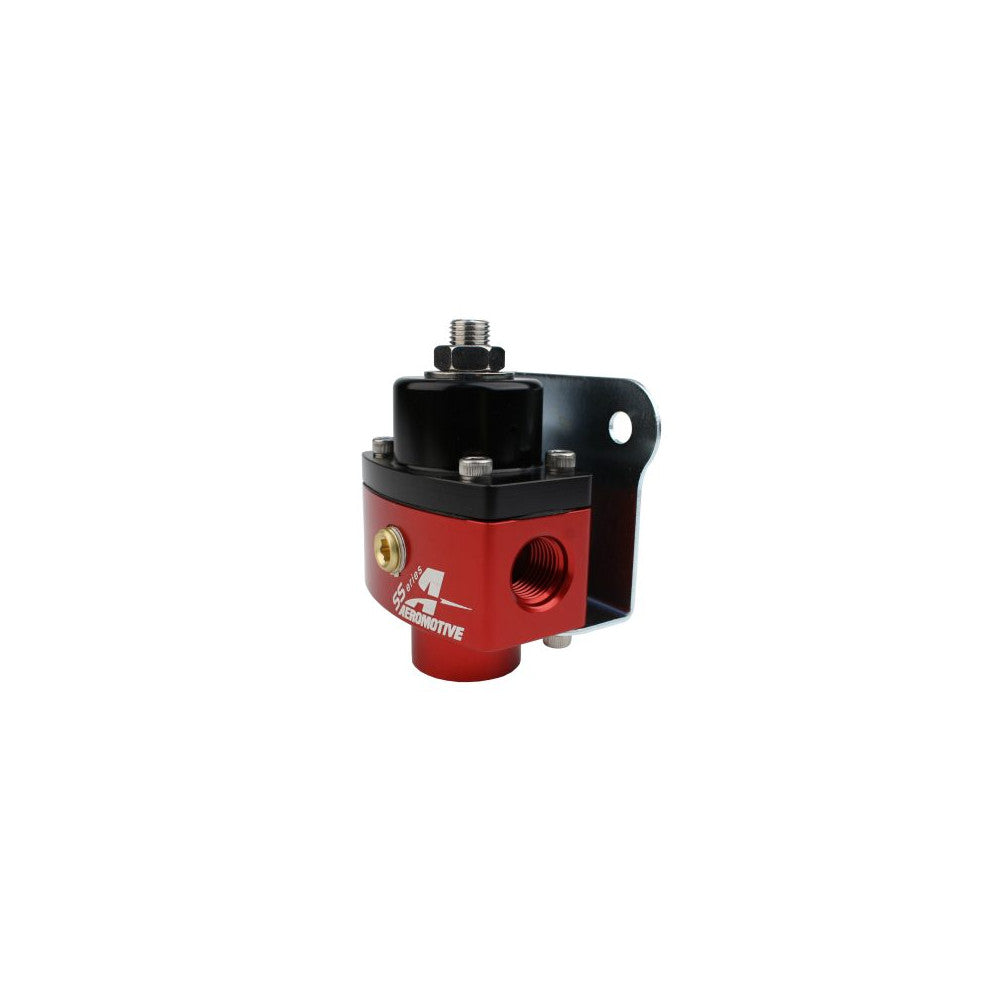

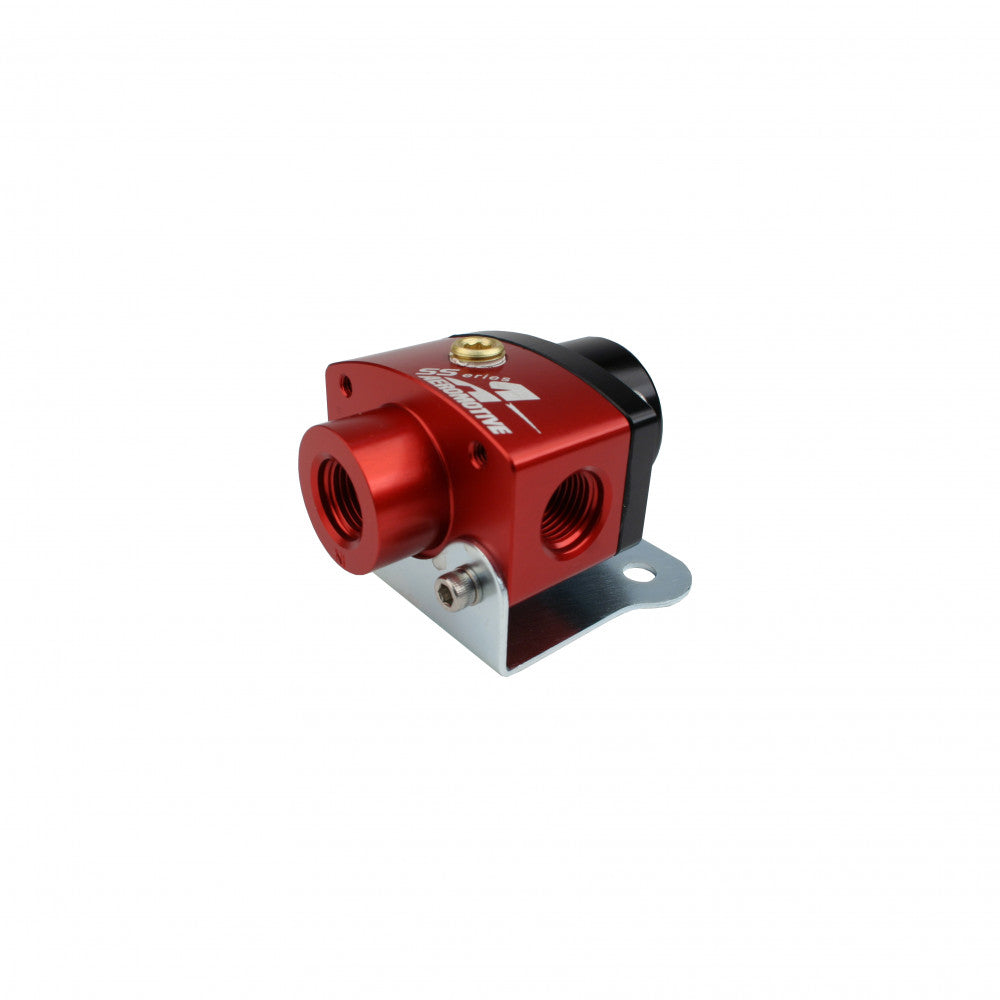

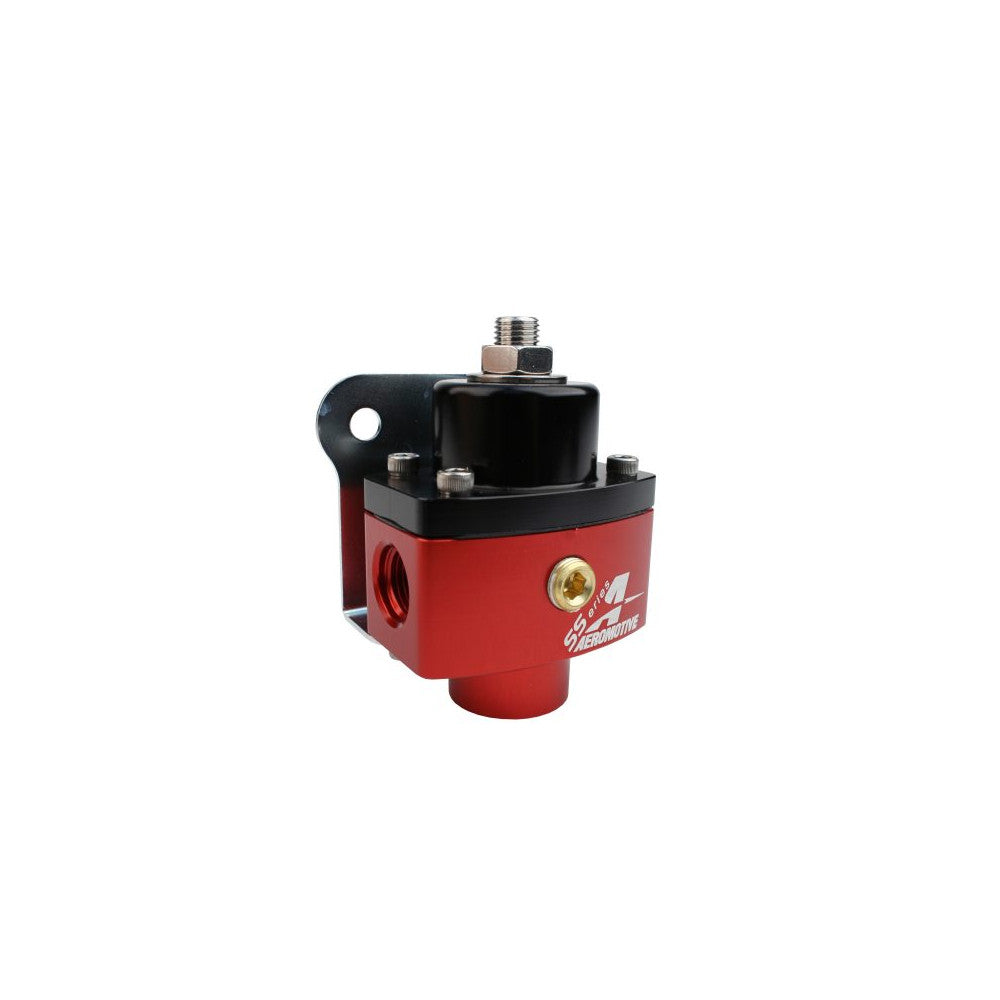

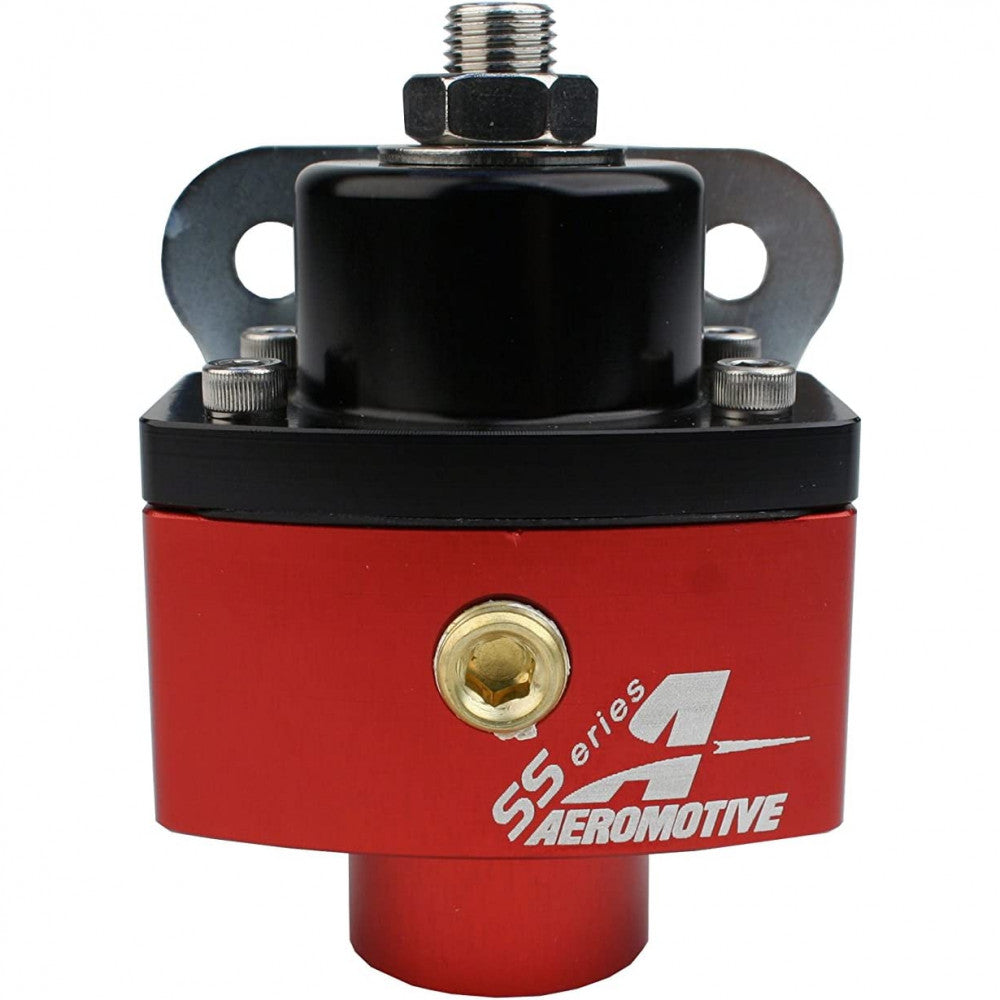

Aeromotive Fuel Regulator Billet, Adjustable, 2 Port Carbureted Each#13201

Aeromotive carbureted adjustable fuel pressure regulators are excellent upgrades from the popular standard 2-port designs. These regulators re-seat after the needle shuts down, preventing pressure creep. They're ideal for carburetor and dedicated nitrous applications where higher flow, quicker response, and less pressure creep are desired. A mounting bracket is included. The units are available with different inlet/outlet options, as well as pressure ranges.

Features :

Adjustable from 5-10 PSI.
P/N 13201 provides ORB-06 inlet and outlet ports.
Dedicated 1/8′ NPT gauge port.
Regulator re-seats when the needle and seat closes, preventing pressure creep.
Mounting bracket included.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Not rated for alcohol fuels, ethanol or methanol.

Specifications :

Part Type: Fuel Pressure Regulators

Pressure Range (psi): 5-12

Regulator Style: Non-return

Regulator Location: Inline

Fuel Injection : CARB or EFI

Boost/Vacuum Reference Port: No

Gauge Port: Yes

Inlet Quantity: One

Regulator Inlet Size: -6 AN

Inlet Attachment: Female straight cut O-ring

Outlet Quantity: 2

Regulator Outlet Size: -6 AN

Outlet Attachment: Female straight cut O-ring

Fittings Included: No

Regulator Material: Aluminum

Regulator Finish: Red anodized

Rebuildable: Yes

Mounting Bracket Included: Yes

Quantity: Sold Each
