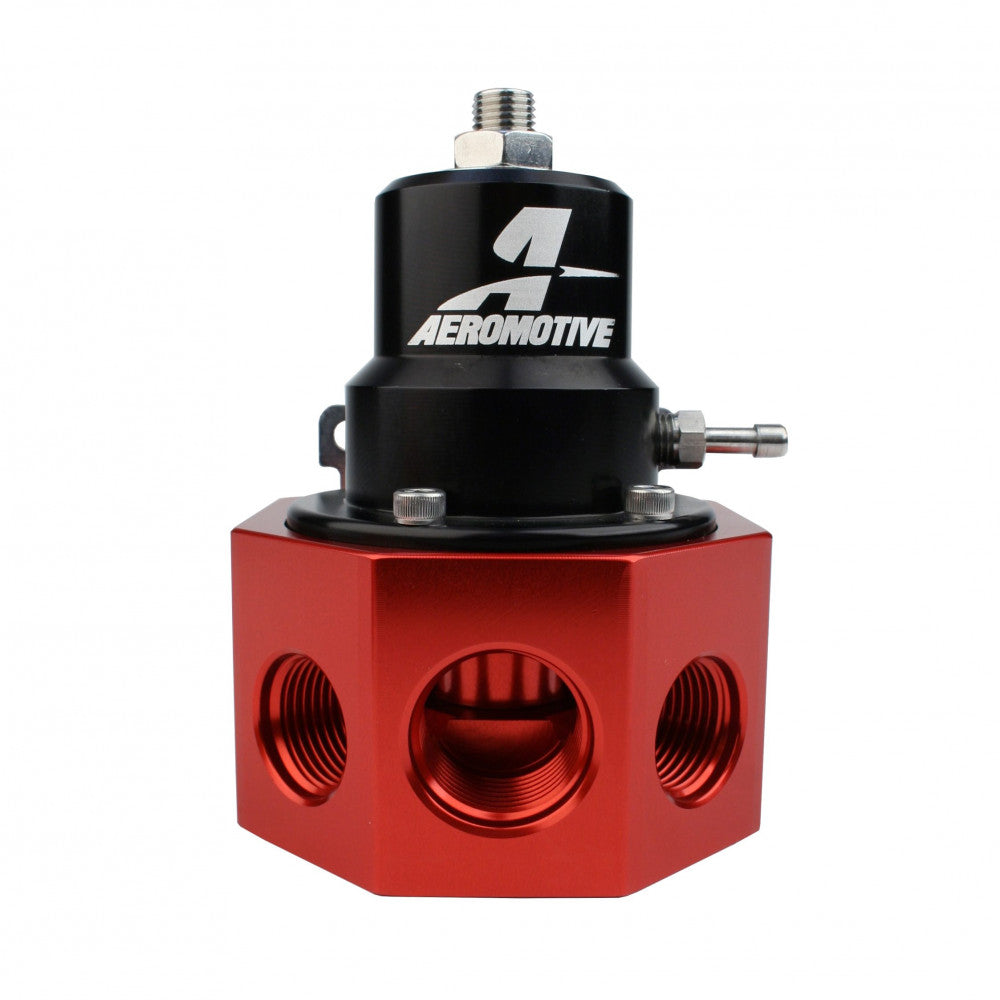

Aeromotive Fuel Regulator Billet, Adjustable, 4 Port, By-Pass, Carbureted #13202

Aeromotive A2000 carbureted bypass regulators are ideal for use with high-volume electric or mechanical fuel pumps of any make, where dynamic flow and rock-steady pressure control are desired. With their unmatched boost reference and high-flow capacity, these regulators are perfect for blow-through carburetor applications with a turbo or centrifugal supercharger. They're available in different outlet sizes and quantities.

Features :

Adjustable from 2-20 PSI.
return style design provides the ultimate, dynamic fuel delivery system. (Requires AN-10 return line)
Fuel pressure rises on a 1:1 ratio when referencing boost.
ORB-10 inlet and return ports.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
P/N 13202 provides (4) ORB-08 outlet ports.

Specifications :

Part Type: Fuel Pressure Regulators

Pressure Range: 2-20 psi

Regulator Style: Return

Regulator Location: Inline

Boost/Vacuum Reference Port: Yes

Boost/Vacuum Rise Ratio: 1:1

Gauge Port: No

Inlet Quantity: One

Regulator Inlet Size: -10 AN

Inlet Attachment: Female straight cut O-ring

Outlet Quantity: 4

Regulator Outlet Size: -8 AN

Outlet Attachment: Female straight cut O-ring

Return Fitting Size: -10 AN

Return Attachment: Female straight cut O-ring

Fittings Included: No

Regulator Material: Aluminum

Regulator Finish: Red anodized

Rebuildable: Yes

Mounting Bracket Included: Yes

Quantity: Sold Each
