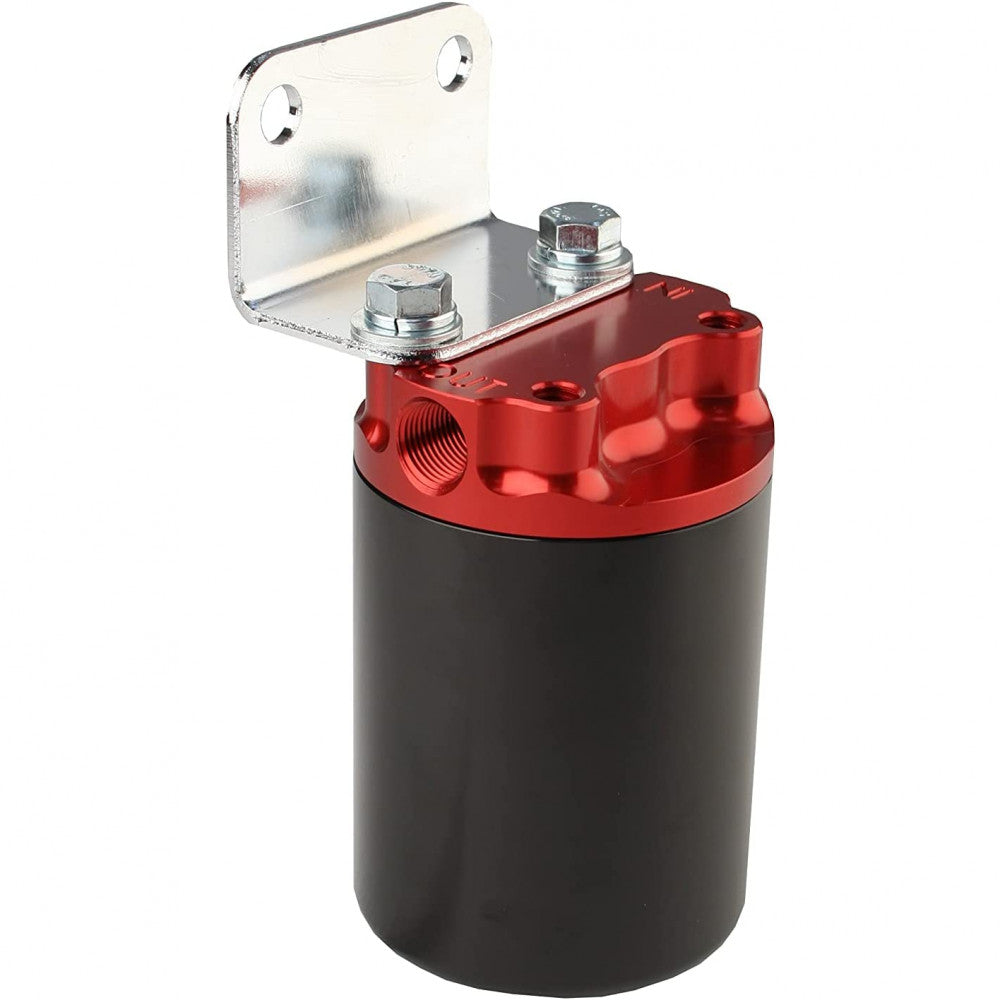

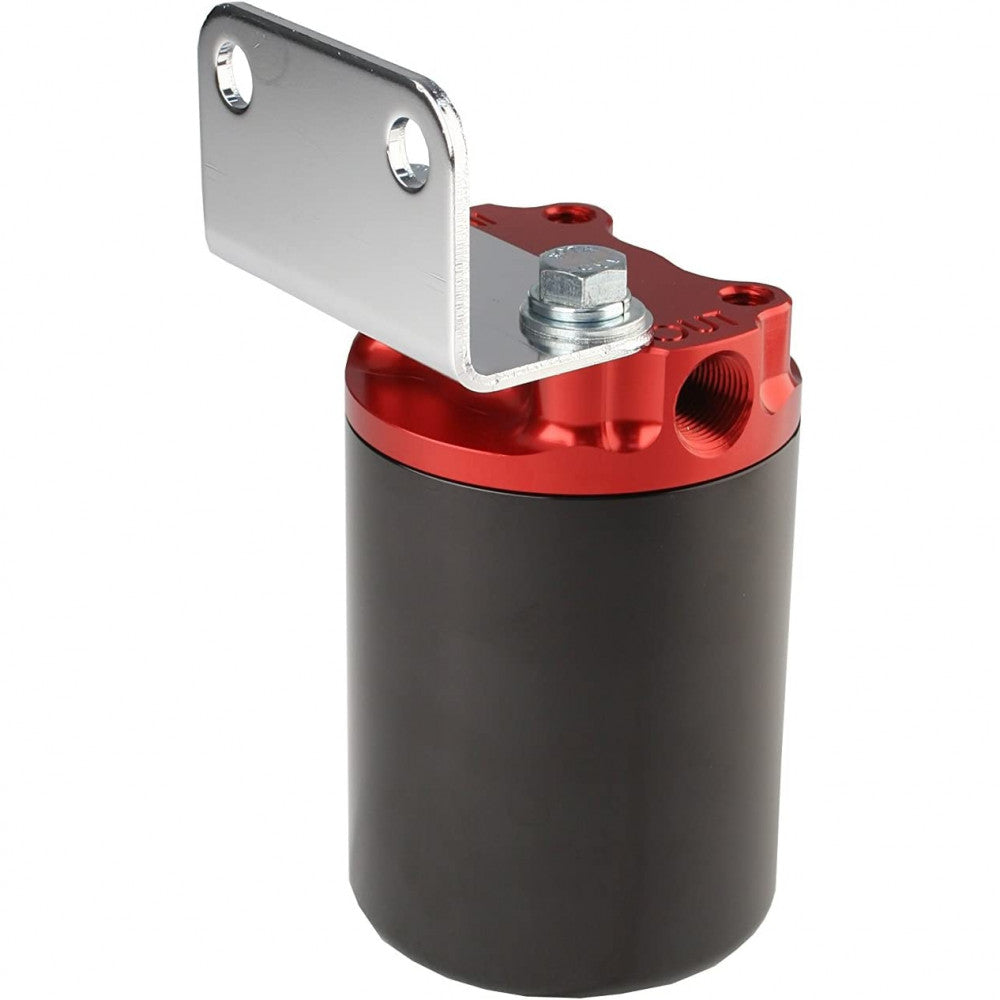

Aeromotive Stainless Steel Series Canister-Style Fuel Filters, Red/Black

Aeromotive SS Series canister-style fuel filters are CNC-machined from 6061 T6 aluminum and are designed for use on the inlet side of the pump. They have a one-piece seal that can handle pressures in excess of 200 psi and flow 1,500 lbs./hr. with a pressure drop of less than 1 psi. SS Series fuel filters are available with 10- or 100-micron elements for reliable protection—and feature 3/8 in. NPT inlets and outlets, a red anodized cap, nickel plated or black housing, and mounting bracket.

Specifications :

Part Type: Fuel Filters

Fuel Filter Style: Canister

Inlet Quantity: One

Fuel Filter Inlet Size: 3/8 in. NPT

Inlet Attachment: Female threads

Outlet Quantity:1

Fuel : CARB or EFI

Fuel Filter Outlet Size:3/8 in. NPT

Outlet Attachment: Female threads

Filter Element Included: Yes

Smallest Particle Filtered:100 microns

Filter Element Material:Stainless steel mesh

Filter Housing Material: Aluminum

Filter Housing Finish: Red anodized/Black

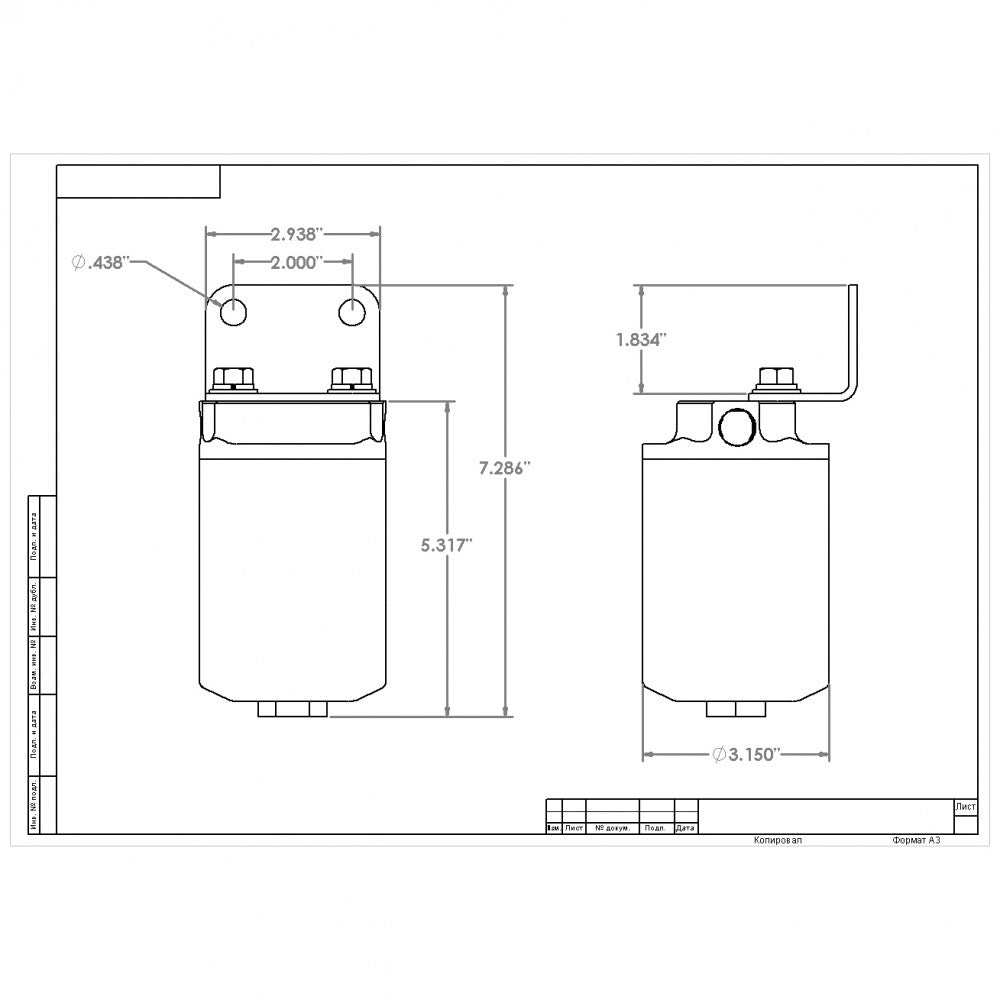

Overall Length:6.125"

Outside Diameter: 3.250"

Mounting Bracket Included: Yes

Fittings Included: No

Clamps Included: No

Quantity: Sold Each
