Description

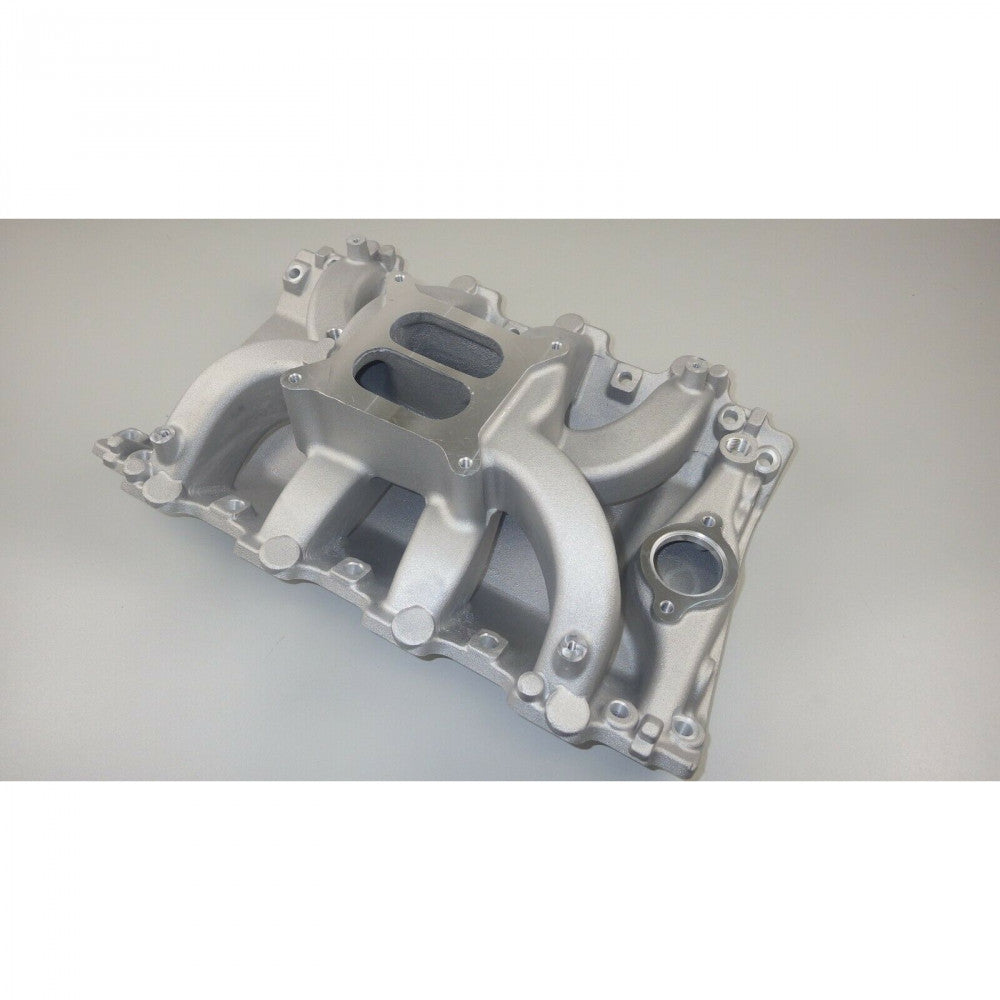

AFTERBURNER Intake Manifold, RPM Air-Gap, Dual Plane, Aluminum, Natural, 4-barrel Square Bore, Holden, Each
RPM Performer Air-Gap Holden 253-304-308 1988-98 Intake Manifold
INTAKE MANIFOLD, RPM AIR GAP, VN, HOLDEN, 1988-1998, CARBURETED
Utilizing the proven short runner tunnel-ram style, both of these manifolds provide the next step up in performance for LT1 and LT4 owners. These are both direct stock replacements for OEM equipment with all required emissions features.
Based On Performer RPM Series With Unique Air Gap
Provides The Next Step Up In Performance
Designed for 1500 to 6500 RPM Performance
Specifications :
Product Type: Intake Manifolds, Carbureted
Intake Section Included: Complete
Engine Block Style: Stock/OEM standard deck
Carburetor Quantity: One
Intake Style: Dual plane
Basic Operating RPM Range: 1,500-6,500
Intake Manifold Height: 5.820"
Intake Finish: Natural
Intake Material: Aluminum
EGR: No
Quantity: Sold individually
Notes:
This manifold has been designed to fit both stock 1988-1998 EFI style heads and the Holden VN RPM cylinder heads.
CARB RECOMMENDATIONS: OEM 4-bbl. Performer Series (600-750 cfm) Carburetor.
INSTALLATION NOTE: Do not use high performance or competition type intake gaskets for street application. Due to material deterioration under street driving conditions, internal leakage of both vacuum and oil may occur. Recommended intake gasket: Stock gasket set or equivalent. Manifold height: A-4.80", B-5.82"; Carb pad height: 5.31". Port exit dimensions: 1.16" x 2.00".
