Description

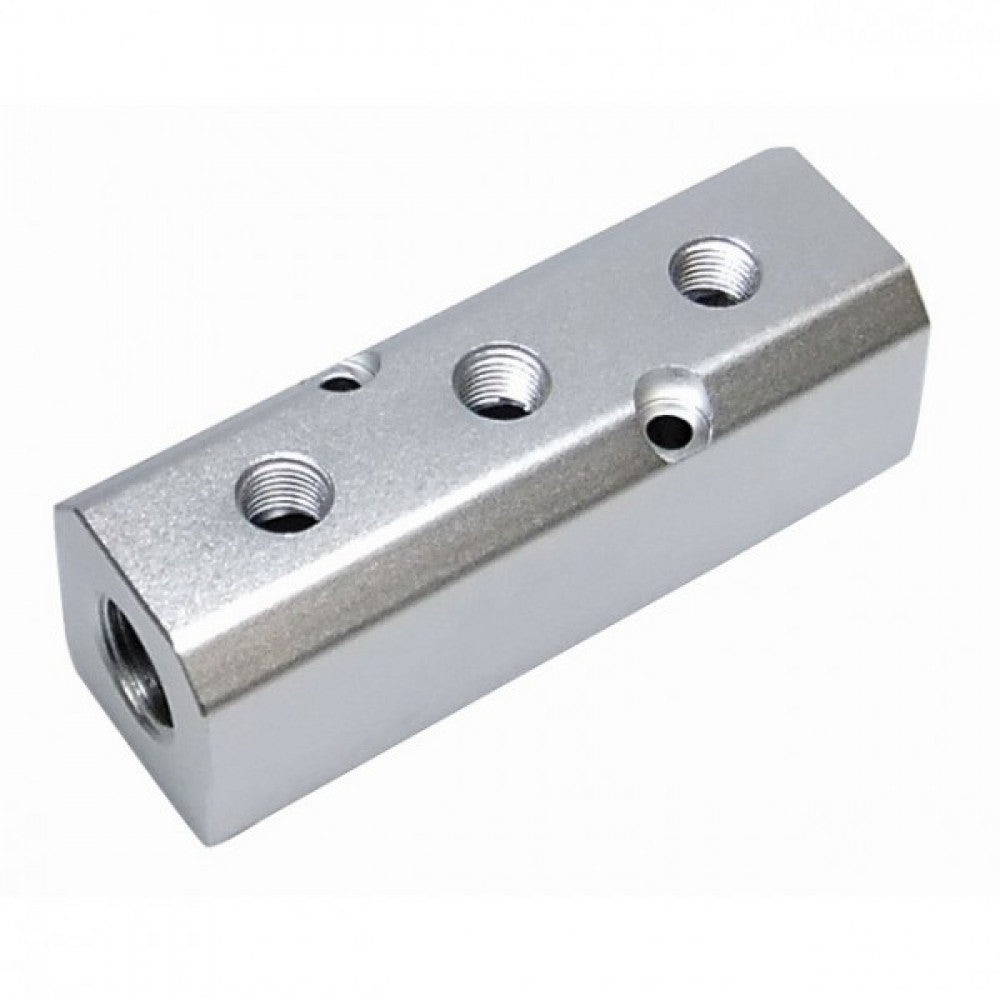

Air manifolds enable even distribution of compressed air or fluids through a number of ports in a compact block design.
The AMT series air manifolds have 1/2 BSP ports at each end of the block. 1/4 BSP outlet ports are evenly spaced on the front of the block. Outlet ports are all centred at 35mm.
Two mounting holes provided.
• Compressed air manifold block
• 3 x 1/4 BSP outlet ports; 2 x 1/2 BSP ports at each end.
• Max pressure : 300psi
• Aluminium body material
• Dimensions: 120L x 40W x 40H mm
