Description

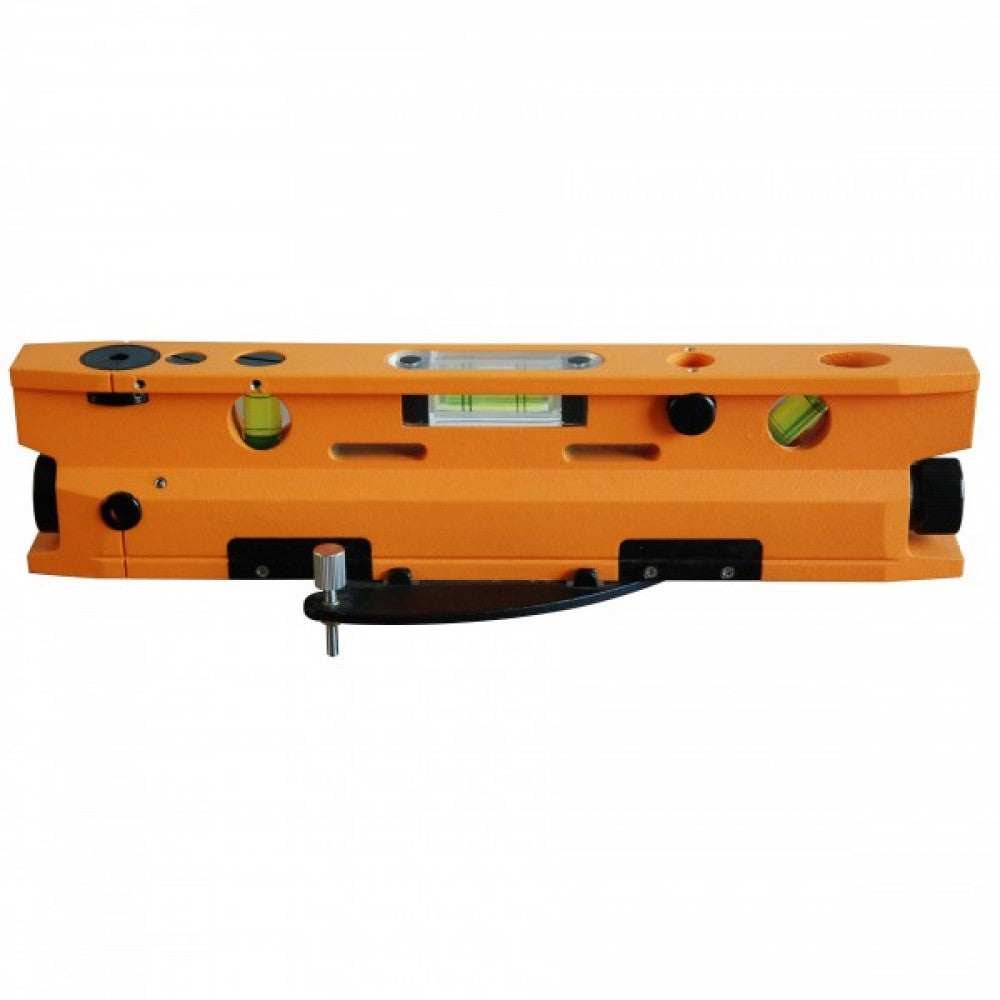

A torpedo level with three perpendicular beams, and four vials at 45°, 90° and 180° (2 vials). This level has a solid billet body, v groove magnetic base for attaching to pipe or flat steel, and a levelling plate for use on flat surfaces. It also has a camera thread for use on a tripod. The beams are fixed so you can transpose points on any angle, and offsets are standard measurements (1” or 25.4mm and ¾” or 19mm) and marked on the level body. Set up pipework, install brackets and transpose points easily.
Features
3 laser dots at 90° to each other
4 bubble vials at respective orientation of 0°, 45°, 90°, 180°
The magnetic base could attach on the metal or pipe firmly
The V-shape slot bottom with hole could bind on the pipe
Special bracket for leveling bubble
Specifications
Laser wavelength: 635nm
Laser class: Class II/III
Horizontal accuracy: ±3mm/10m
Power:3*AA battery
Size: 242×25.4×56mm
Weight: 0.75kg
Basic kit:
519012 main unit, belt, 3*AA battery, soft bag
Features
3 laser dots at 90° to each other
4 bubble vials at respective orientation of 0°, 45°, 90°, 180°
The magnetic base could attach on the metal or pipe firmly
The V-shape slot bottom with hole could bind on the pipe
Special bracket for leveling bubble
Specifications
Laser wavelength: 635nm
Laser class: Class II/III
Horizontal accuracy: ±3mm/10m
Power:3*AA battery
Size: 242×25.4×56mm
Weight: 0.75kg
Basic kit:
519012 main unit, belt, 3*AA battery, soft bag
