Description
Works in all systems, including high-pressure R-410A
systems! Revolutionary way to add fluorescent dyes into air conditioning and
refrigeration systems without the use of additional refrigerant. Just one
connection, then turn the handle to inject the dye. Ideal for preventive
maintenance programs and for multiple, medium to large AC&R units.
Replacement Cartridges Benefits: For all AC&R systems, including
high-pressure R-410A systems. Compatible with Mineral Oil, PVE, Polyol Ester
and Alkyl Benzene Lubricant Systems. Cost-effective for medium to large size
systems — Each prefilled, disposable 118 ml dye cartridge treats up to 60.8 L
of lubricant, 180kg of refrigerant or 150 tons of cooling. No pouring, no
refrigerant, no spills — Prefilled Big-EZ™ cartridges are clearly labelled with
32 calibrations so you’ll introduce exactly the right amount of dye every time.
When cartridge is empty, just throw it away. A new one connects in seconds.
Check valve prevents the backflow of dye or refrigerant and allows for easy
storage of the hose/cartridge between jobs. Prevents dye leakage or
contamination. Torque from the assembly easily overcomes AC&R system

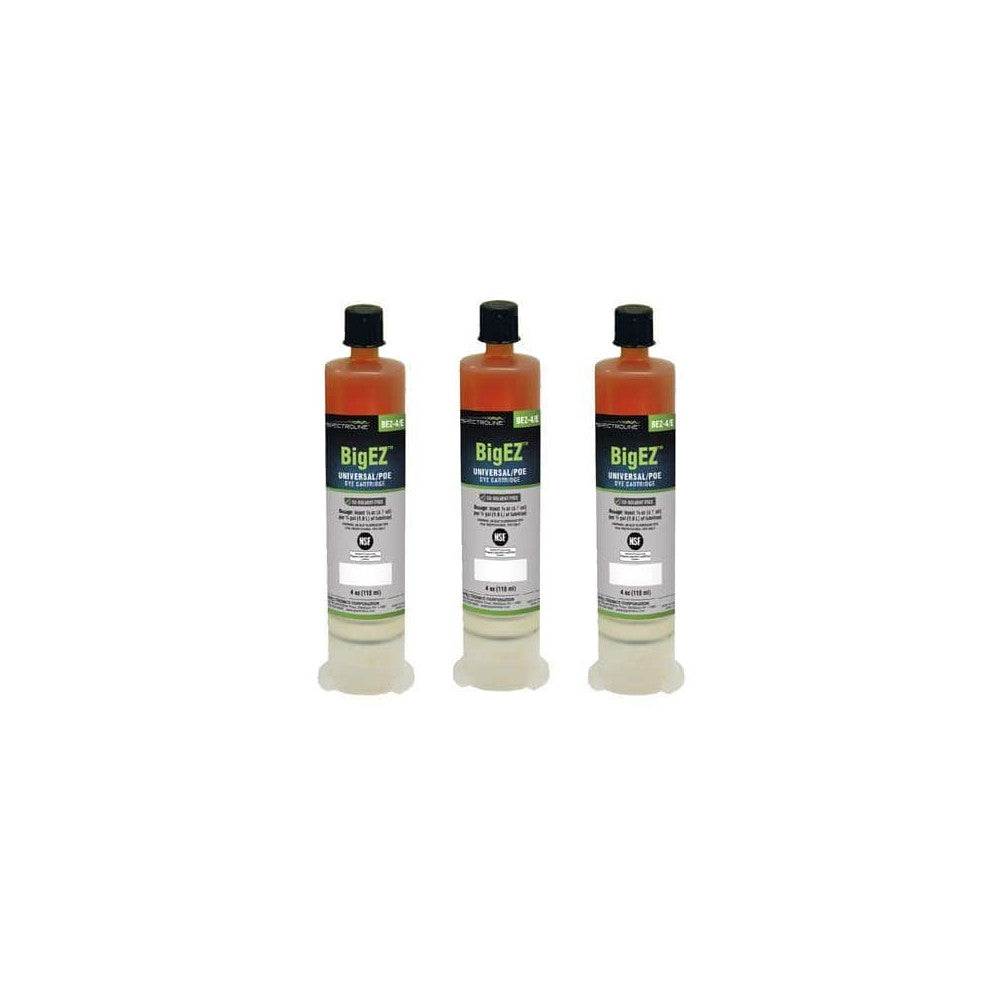

pressure, even with R-410A. Replacement Cartridges Contains: 1 0r 3 x
Universal/POE Multi-Dose 4 oz (118 ml) Dye Cartridge Replacement Cartridges –
How It Works: Install the cartridge, then connect the injector hose to the
system’s low-side service port. Turn the handle to inject the exact amount of
dye required and let it circulate. Scan the system with a Spectroline®
inspection lamp. The precise location of all leaks will be shown by a bright,
yellow-green glow. Replacement Cartridges Specifications: Item: 4 oz. (118 ml)
cartridge Typical Application: For Medium to Large Size Systems Amount of Oil
in System: One per 1/2 gallon of Oil Amount of Refrigerant: One per 5 tonnes
Dye Type: Universal/POE Type of Compressor Oil: POE, Alkylbenzene, or Mineral
Manufacturer’s Warranty Length: 1 Year Country: USA.
