Bramley Fully-Optioned Wrought Iron Bender

** NB – This item is very heavy & will be delivered by a Transport Company; someone will be required to be present at off-load. Mytools Free delivery offer only applies on this product for Business delivery or to your local Depot only.
Private House Dwelling delivery will incur additional Freight Charge imposed by the carriers – If in doubt, contact us in advance here: https://mytools.co.nz/pages/contact

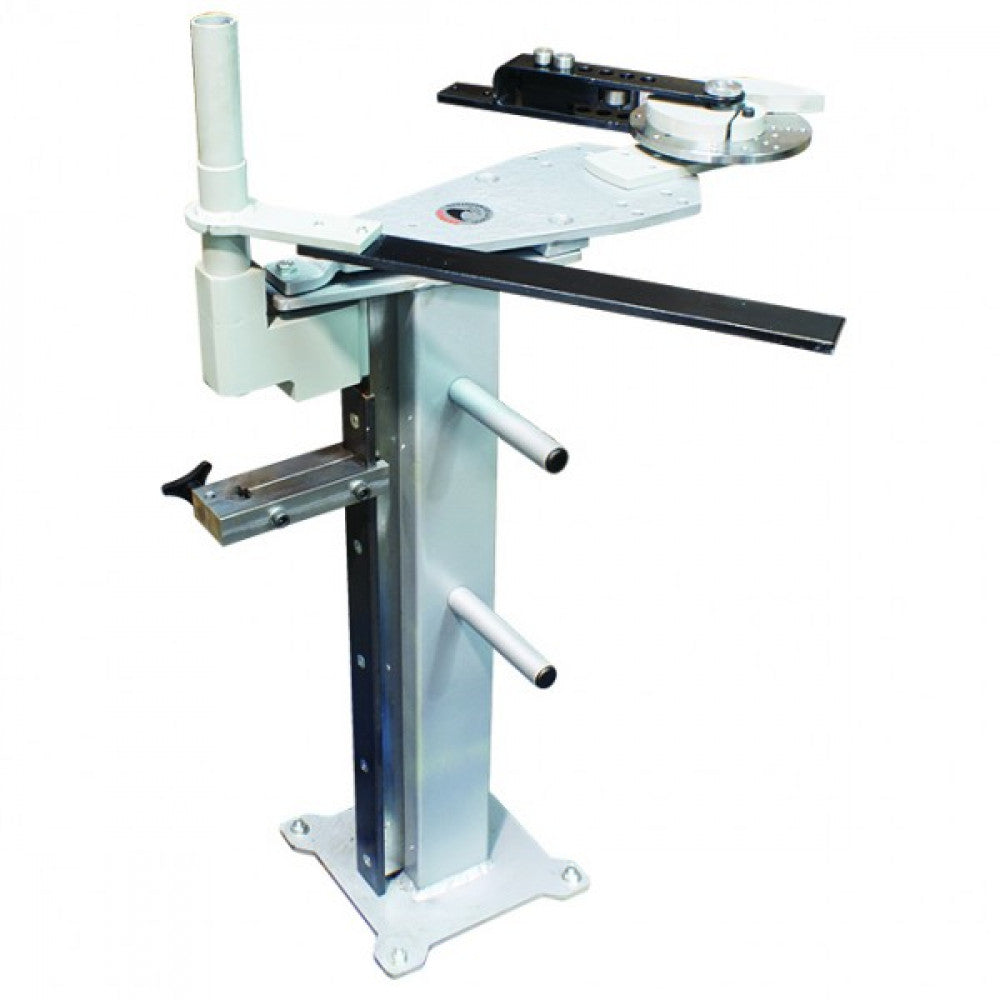

Bramley Fully Optioned Wrought Iron Bender

Model 066

Includes:

064 Tube Bender
For Bending Thin Wall Tube Up To 90° In One Operation.
Model 064 - Round (1.6mm Wall Thickness)
Supplied With A Set Of 5 Formers & Follow Roller To Suit Round Tube (1/2” – 1” Dia).

- Lightweight Aluminium Alloy Formers
- Square Formers Can Fit Onto The Round Tube Bender (& Vice-Versa)
- The 1.1/8” Round Former Is An Optional Extra
- Weight 27Kg

065 Tube Bender Stand
Optional Stand (Part No. 065) For Manual Tube Bender (064 / 064Sq) Which Incorporates Storage Pegs For Formers.
Weight 15Kg

067 Wrought Iron Bender Attachment
Fits Onto The 064 Tube Bender (Separate Supply) Or Can Be Mounted To Your Own Workshop Vice.

For Bending Scrolls, Eyes, Spiral Shapes And Other Complex Shapes From Round, Square And Flat Bar In One Operation.

Tooling Plate Has 48 Holes Drilled And Tapped Allowing Tooling To Be Fitted Anywhere On Tooling Plate
Can Bend Mild Steel Up To 12mm (1/2”) Round Or Square (Minimum Radius 10mm For 12mm Material, 7mm For 10mm Material)
Can Bend 25 x 6mm (1” x 1/4”) Flat Mild Steel With A 7mm Min. Radius
Will Bend In Any Direction With Unlimited Number Of Rotations (Depending Only On Material Used)
Standard Range Of Scroll Shape Dies Supplied With Unit

069 Picket & Basket Attachment
