Bramley Wrought Iron Scroll Bender Attachment Only
Description

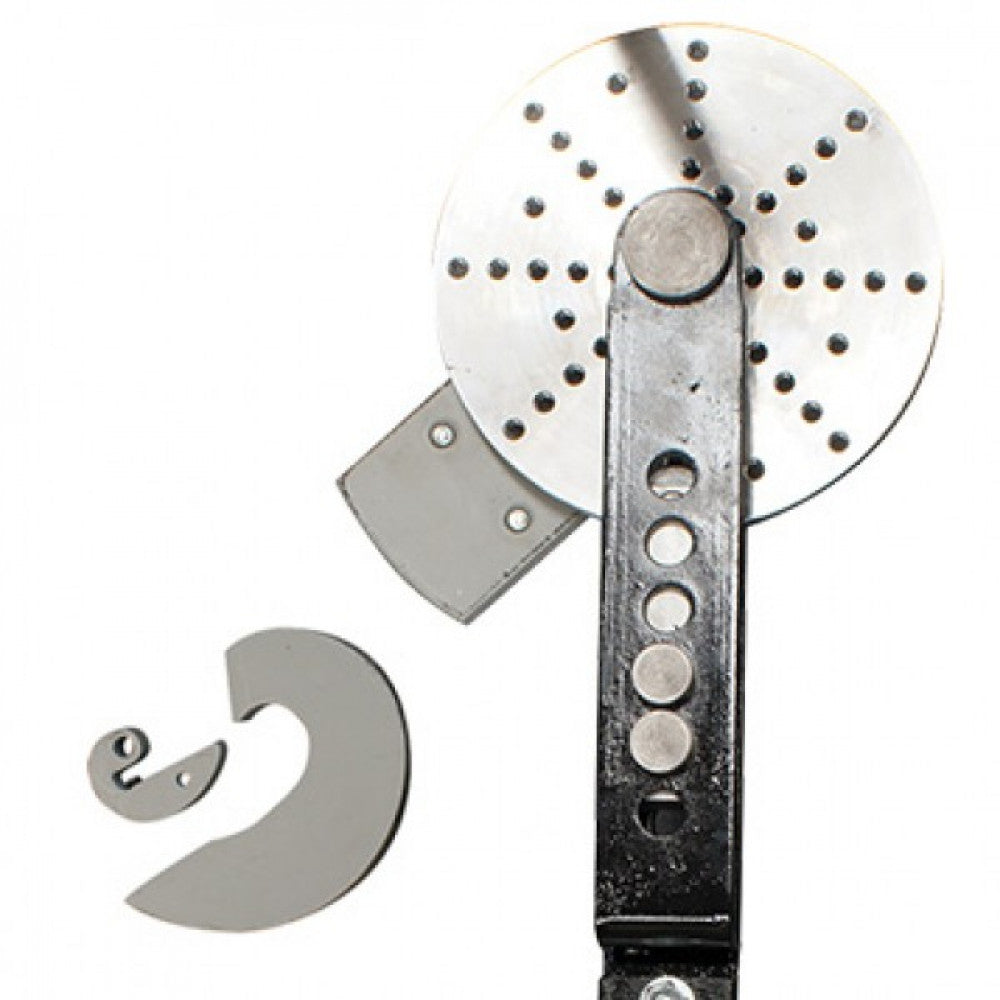

Bramley Model 067 - Wrought Iron Scroll Bender Attachment
Fits Onto The 064 Tube Bender (Separate Supply) Or Can Be Mounted To Your Own Workshop Vice.
For Bending Scrolls, Eyes, Spiral Shapes And Other Complex Shapes From Round, Square And Flat Bar In One Operation.
Tooling Plate Has 48 Holes Drilled And Tapped Allowing Tooling To Be Fitted Anywhere On Tooling Plate
Can Bend Mild Steel Up To 12mm (1/2”) Round Or Square (Minimum Radius 10mm For 12mm Material, 7mm For 10mm Material)
Can Bend 25 x 6mm (1” x 1/4”) Flat Mild Steel With A 7mm Min. Radius
Will Bend In Any Direction With Unlimited Number Of Rotations (Depending Only On Material Used)
Standard Range Of Scroll Shape Dies Supplied With Unit
Fits Onto The 064 Tube Bender (Separate Supply) Or Can Be Mounted To Your Own Workshop Vice.
For Bending Scrolls, Eyes, Spiral Shapes And Other Complex Shapes From Round, Square And Flat Bar In One Operation.
Tooling Plate Has 48 Holes Drilled And Tapped Allowing Tooling To Be Fitted Anywhere On Tooling Plate
Can Bend Mild Steel Up To 12mm (1/2”) Round Or Square (Minimum Radius 10mm For 12mm Material, 7mm For 10mm Material)
Can Bend 25 x 6mm (1” x 1/4”) Flat Mild Steel With A 7mm Min. Radius
Will Bend In Any Direction With Unlimited Number Of Rotations (Depending Only On Material Used)
Standard Range Of Scroll Shape Dies Supplied With Unit
Product Documents
scroll and all purpose bender attachment for 064 tube bender2.pdfProduct Questions and Answers
