Description

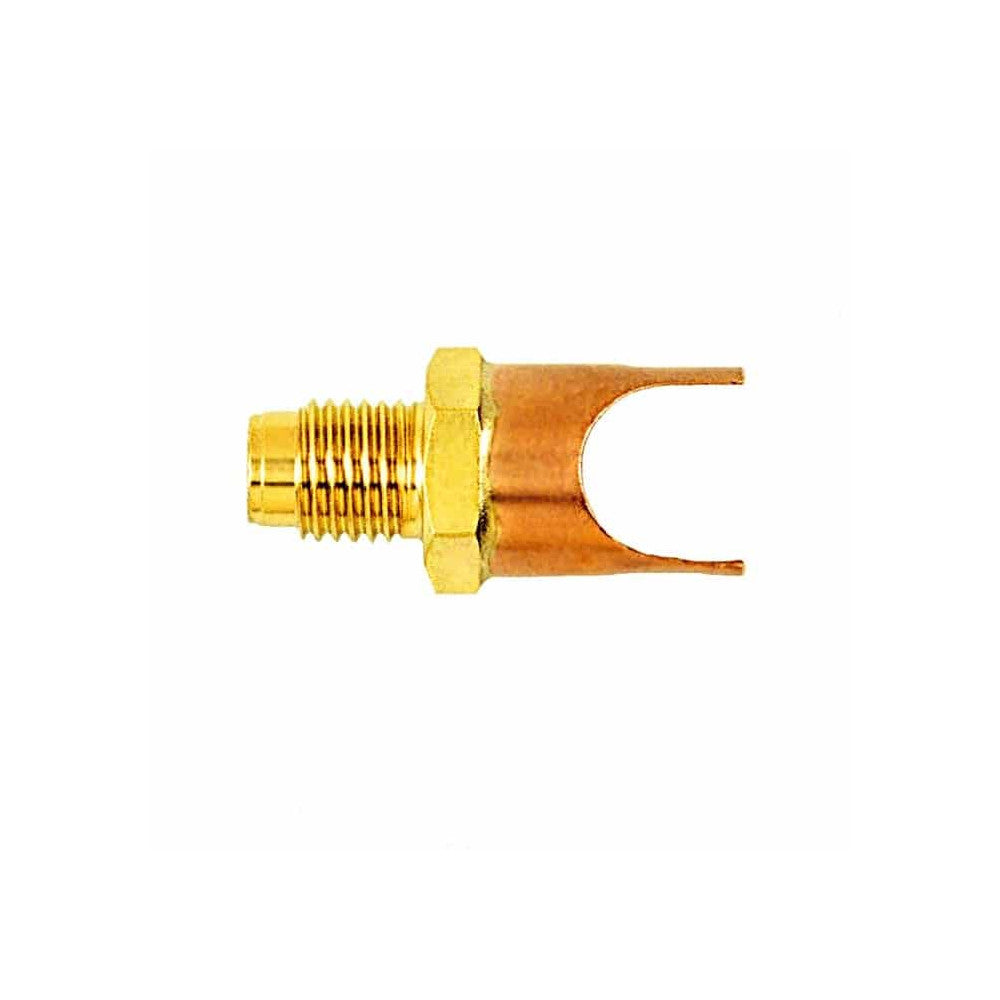

The M-Series is the first and best braze-on, self-piercing copper saddle valve. It is widely used and easily installed on a charged line. After brazing the saddle portion onto the line, the steel pin with the valve core penetrates the line and is locked into place simply by tightening the cap.
FEATURES:
The first and best braze-on, self-piercing copper saddle valve
Widely used and easily installed on a charged line
After brazing the saddle portion onto the line, the steel pin with the valve core penetrates the line and is locked into place simply by tightening the cap.
INCLUDES:
1 x Self-piercing saddle (various sizes available).
SPECIFICATIONS:
Brand: C&D
Weight: 0.35 Pounds (lbs)
Length: 4.6 Inches (In)
Width: 1.6 Inches (In)
Height: 1.9 Inches (In)
Material: Copper
Maximum Working Pressure: 700 psi
Country of origin: USA.
