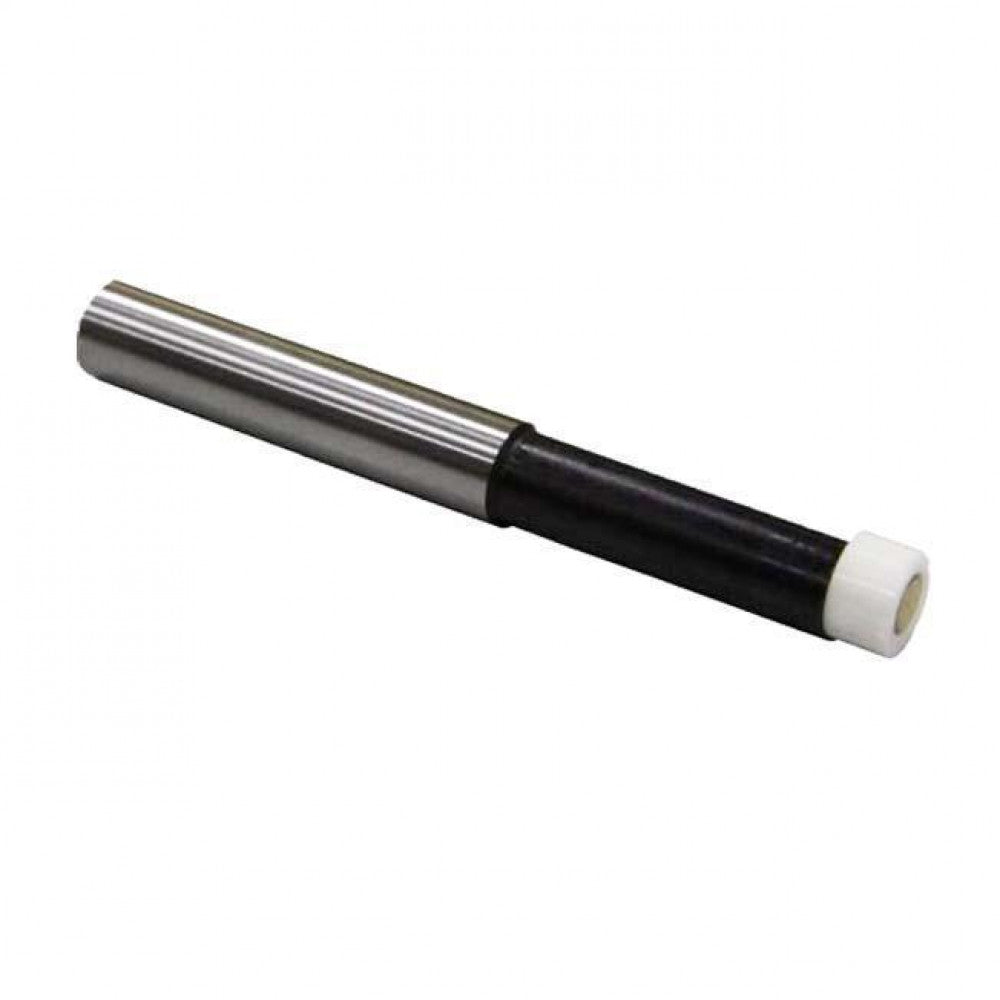

Edge Finder Ceramic Non-Magnetic WH-1010 10mm Dia x 86mm Long

ANN WAY SKU: ANN1100
No reviews

Price:
Sale price$109.06
Stock:
‎‎‏‏‎ ‏‏‎‏‏‎ ‎ ‎‎‏‏‎ ‎‏‏‎ Only 3 units left

Description

Mechanical - Hardened ground and lapped to close tolerances, the edge finder is placed in a chuck and the work table is then traversed to make contact between the rotating edge finder and the work. Contact will shift to a concentric position relative to the body and with very slight additional movement this will move off centre with a decided wobble.At this point the centre of the finder is exactly one-half the diameter of the contact from the work edge. Accuracy 0.01mm. The ceramic contact type option means the finder is unaffected by magnetism.





Description : Single Ended


Body Diameter : 10mm


Contact Diameter : 10mm dia ceramic
