Description

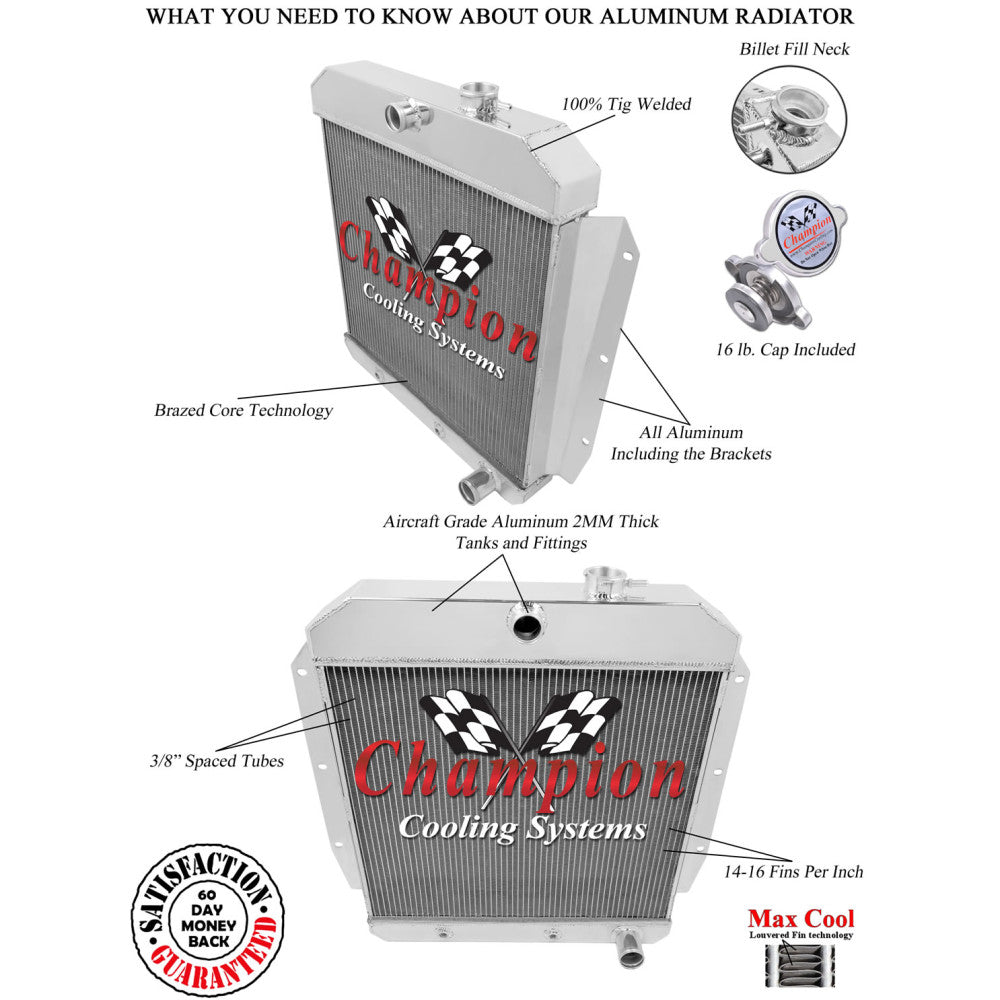

Champion All Aluminum Radiator
3-Row Core | Cools up to 700hp
Radiator Dimensions:
Total: 26.75" tall (with cap) x 26.5" wide (with brackets)
Core: 19.38" tall x 21.75" wide x 2" thick
Inlet: 1.5" center
Outlet: 1.75" Passenger side
Tanks 2.5" thick
Tubes: 0.63" thick
Bracket Mounted
Specifications:
MOUNTING: Bracket
IN: 1.5
LOWER: PASS
OUT: 1.75
Radiator: DOWN FLOW
TRANS COOLER: YES
UPPER: CENTER
3 ROW CORE THICKNESS: 2
3 ROW TANK SIZE: 3
MOUNTING SIZE: Vert - 13 3/4 Horizontal - 25 3/4
Core Height: 19.375 in (492.125 mm)
Core Width: 21.75 in (552.45 mm)
Overall Height: 26.75 in (679.5 mm)
Overall Width: 26.5 in (673.1 mm)
13 lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 Straight Thread)
Aluminum shroud also available (sold separately)
When using electric fans:
One 16" fan recommended for this core size (sold separately)
Compatible With :
Chevrolet/GMC Truck 1955-1959
