Description

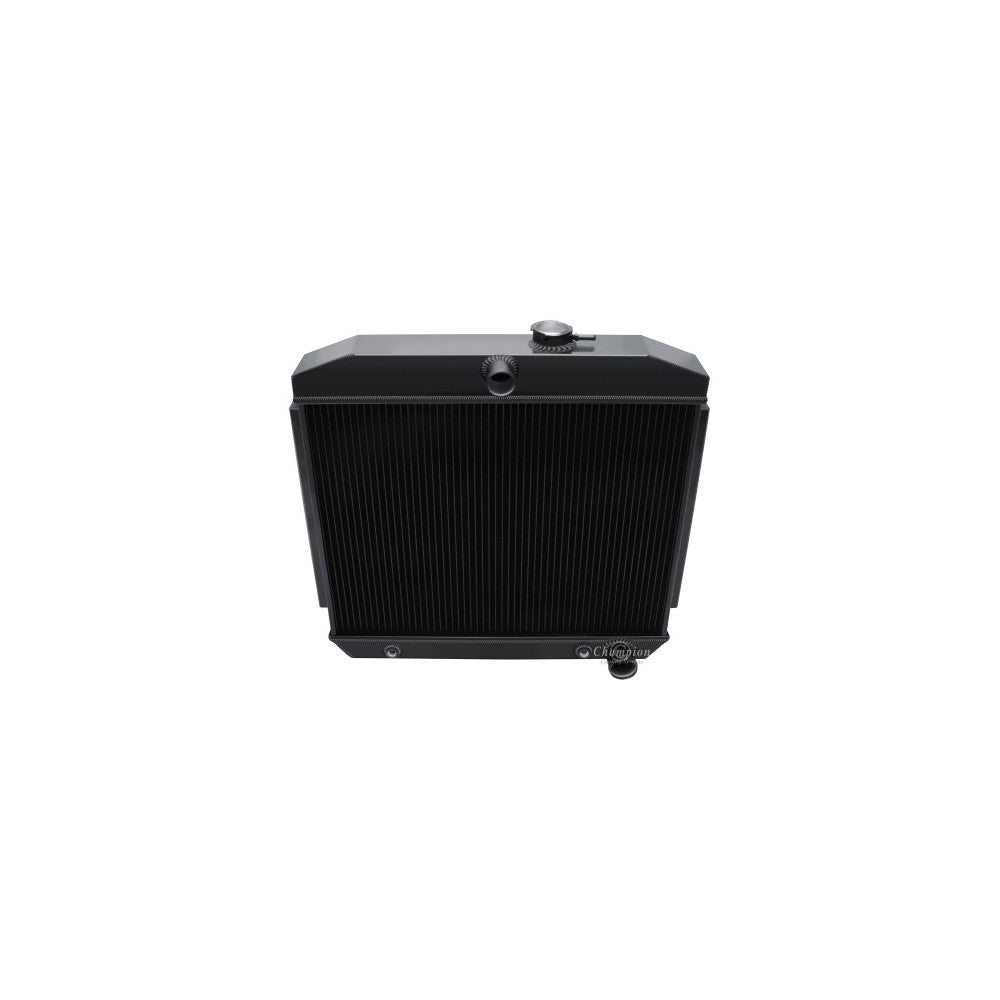

Champion Aluminium Radiator (Black)
Features :
Mounts on the engine side of the core support
3-Row Core | Cools up to 650hp
Specifications :

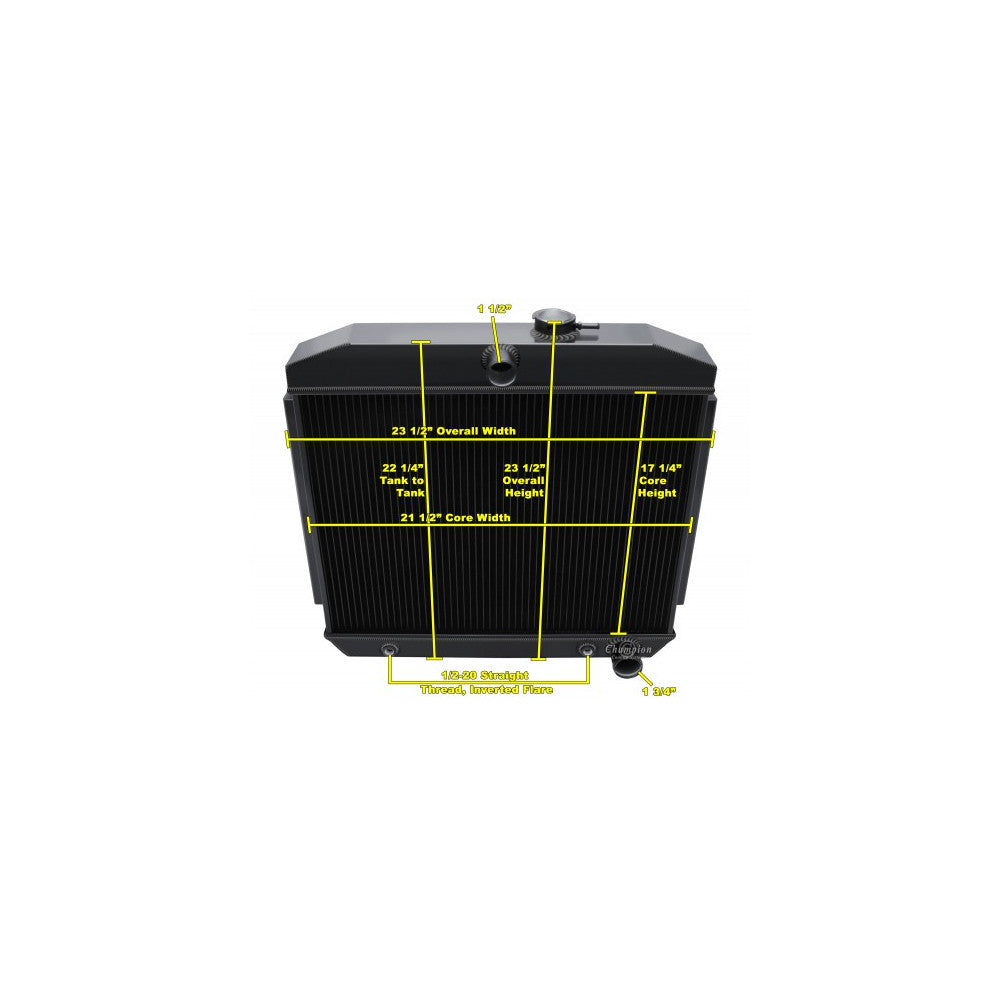

Radiator Dimensions:
Total: 23" tall (24.5" with cap) x 23.5" (including brackets)
Core: 17.25" tall x 21.5" wide x 2.5" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 0.75" thick
Bracket Mounted
Direct Fit Replacement
V8 mounts
13 lb. Radiator Cap included
Transmission Cooler included (1/2"- 20 straight thread)
When using electric fans:
One 16" or two 10" Electric fans recommended for this core size (sold separately)
Check out our EF10, EF16 listing.
Features :
Mounts on the engine side of the core support
3-Row Core | Cools up to 650hp
Specifications :
Radiator Dimensions:
Total: 23" tall (24.5" with cap) x 23.5" (including brackets)
Core: 17.25" tall x 21.5" wide x 2.5" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 0.75" thick
Bracket Mounted
Direct Fit Replacement
V8 mounts
13 lb. Radiator Cap included
Transmission Cooler included (1/2"- 20 straight thread)
When using electric fans:
One 16" or two 10" Electric fans recommended for this core size (sold separately)
Check out our EF10, EF16 listing.
