Description
Champion All Aluminum Radiator
3-Row Core | Cools up to 1000hp

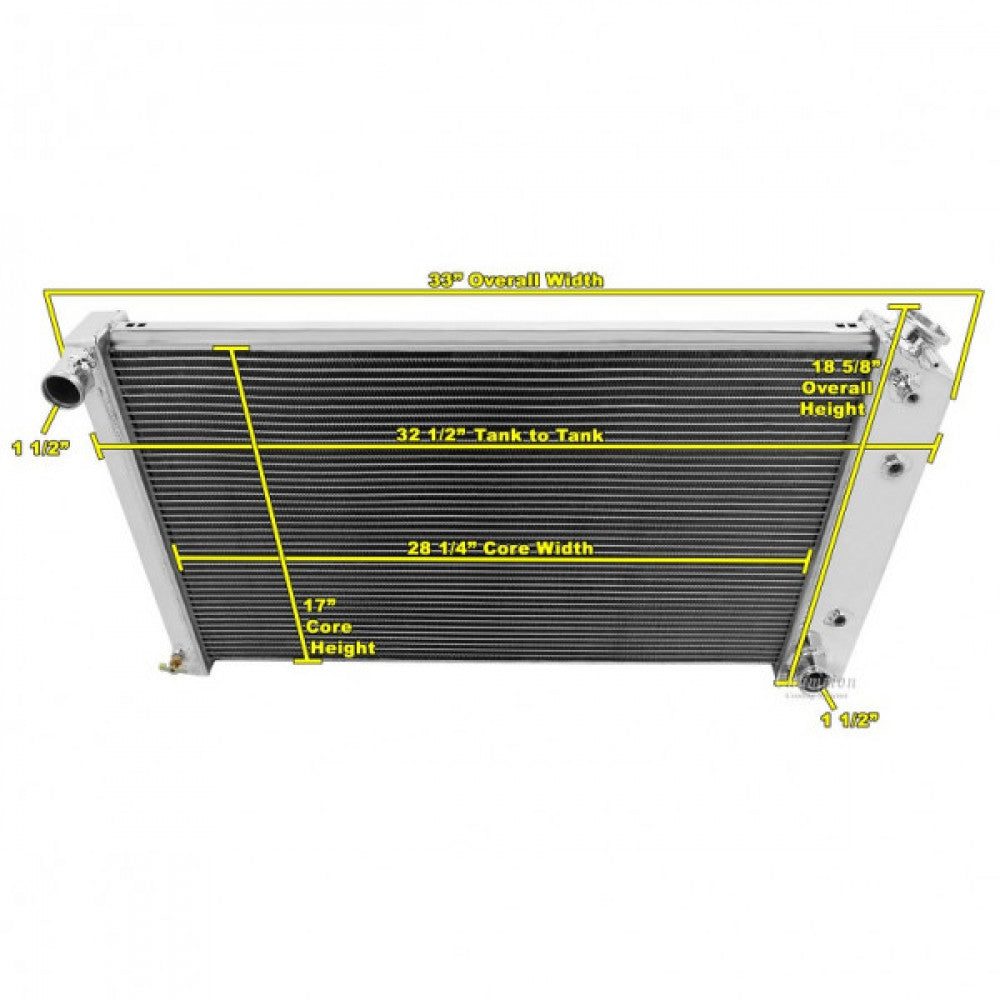

Radiator Dimensions:
Total: 18.63" tall (19” with cap) x 33" wide
Core: 17" tall x 28.25" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick
Saddle Mounted
Radiator Cap included
Transmission Cooler included (1/2"- 20 straight thread)
When using electric fans (sold separately):
Two 12" or 14" Electric fans recommended for this core size
3-Row Core | Cools up to 1000hp
Radiator Dimensions:
Total: 18.63" tall (19” with cap) x 33" wide
Core: 17" tall x 28.25" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick
Saddle Mounted
Radiator Cap included
Transmission Cooler included (1/2"- 20 straight thread)
When using electric fans (sold separately):
Two 12" or 14" Electric fans recommended for this core size
