Description
(59-64) Impala 3-row radiator

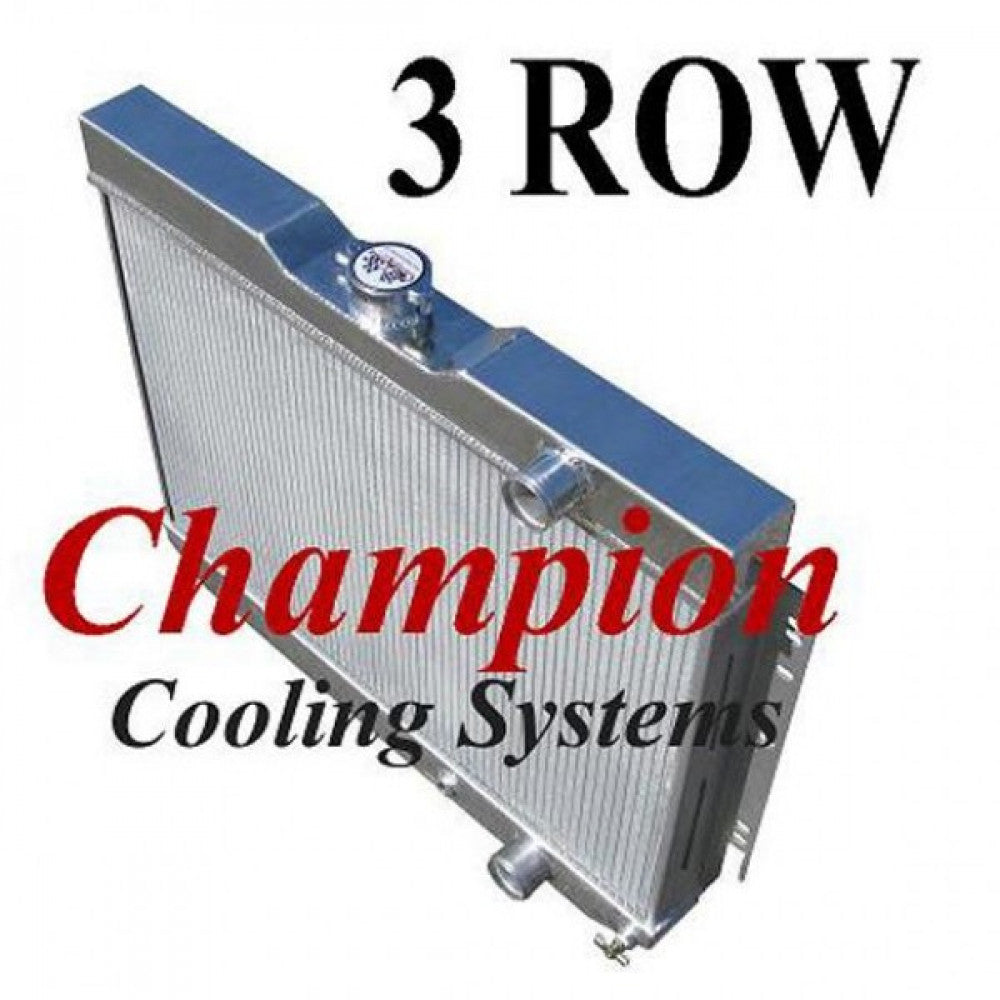

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp
Impala's sometimes need a notched lower tank to miss the
optional larger steering box.
DOES NOT WORK WITH GMC 605 STEERING BOX

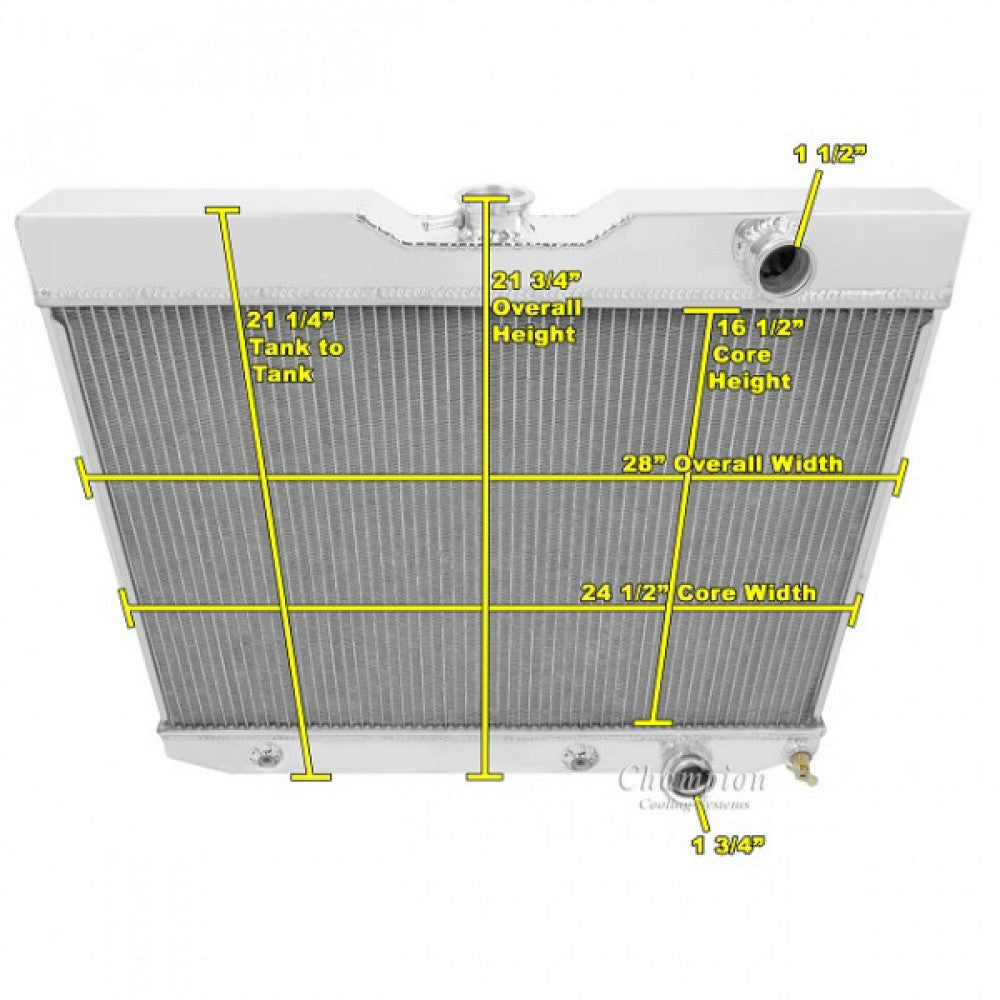

Radiator Dimensions:
Total: 21.25" tall (21.75" with cap) x 28" (with brackets) (27" Center)
Core: 16" tall x 24.5" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick
Bracket Mounted
Radiator Cap included
Transmission Cooler included (1/2"-20 STRAIGHT THREAD)
When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)
