Description
CHEVROLET CAMARO 3-ROW CHAMPION RADIATOR (70-81)

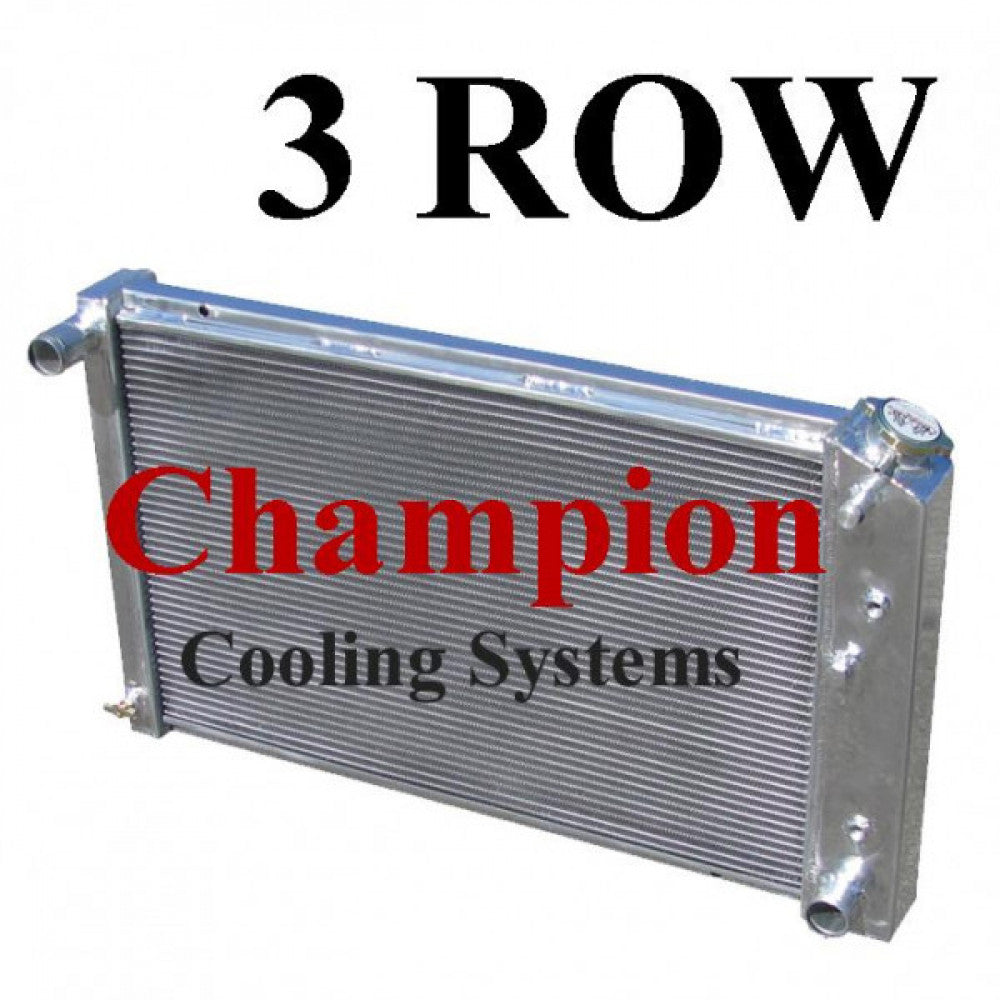

Champion All Aluminum Radiator
3-Row Core | Cools up to 750hp

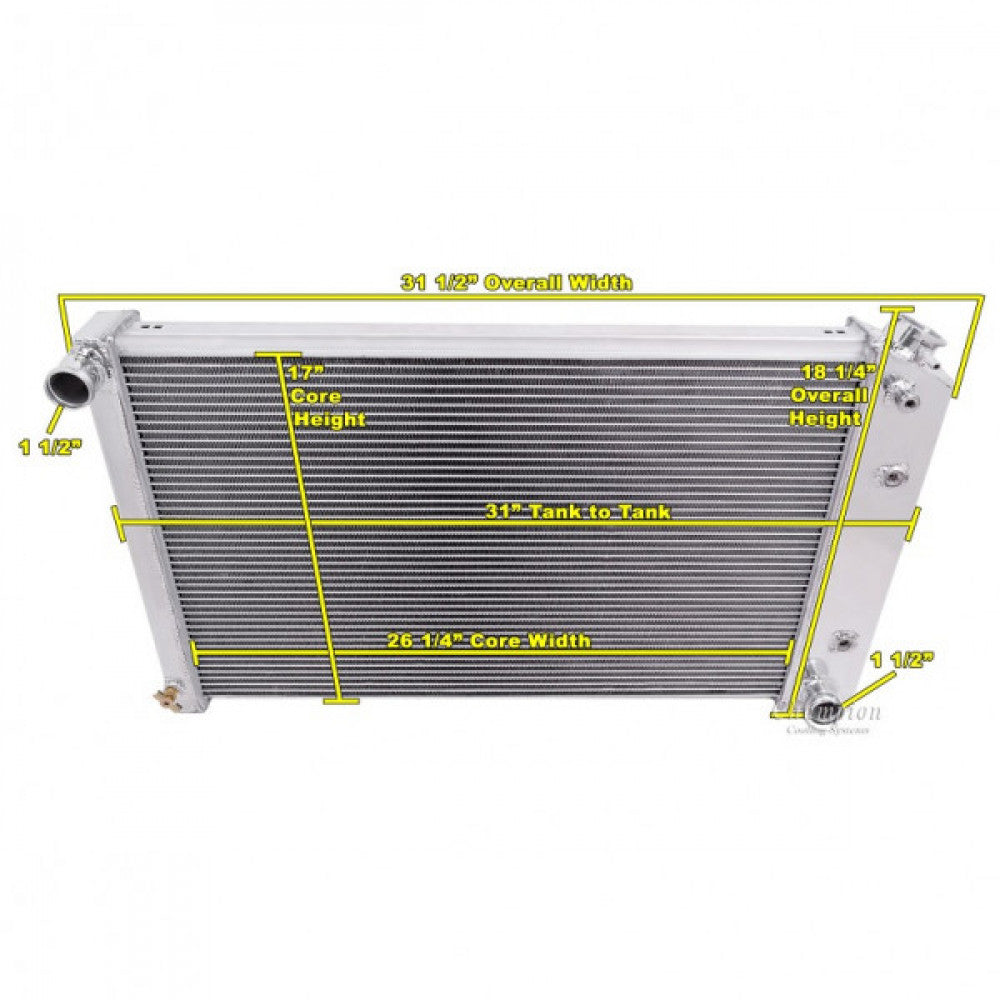

Radiator Dimensions
Total: 31" wide x 18.25" tall (19" with cap) x 3" deep
Core: 26.25" wide x 16.75" tall x 2" thick
Inlet: 1.5" driver side
Outlet: 1.56" passenger side
Tanks: 3" thick
Tubes: 0.63" thick
Saddle Mounted
16 lb. Radiator Cap included
Transmission Cooler included (1/2"-20 straight thread)
When using electric fans (sold separately):
One 16" or two 12" Electric fans recommended for this core size
Champion All Aluminum Radiator
3-Row Core | Cools up to 750hp
Radiator Dimensions
Total: 31" wide x 18.25" tall (19" with cap) x 3" deep
Core: 26.25" wide x 16.75" tall x 2" thick
Inlet: 1.5" driver side
Outlet: 1.56" passenger side
Tanks: 3" thick
Tubes: 0.63" thick
Saddle Mounted
16 lb. Radiator Cap included
Transmission Cooler included (1/2"-20 straight thread)
When using electric fans (sold separately):
One 16" or two 12" Electric fans recommended for this core size
