Description

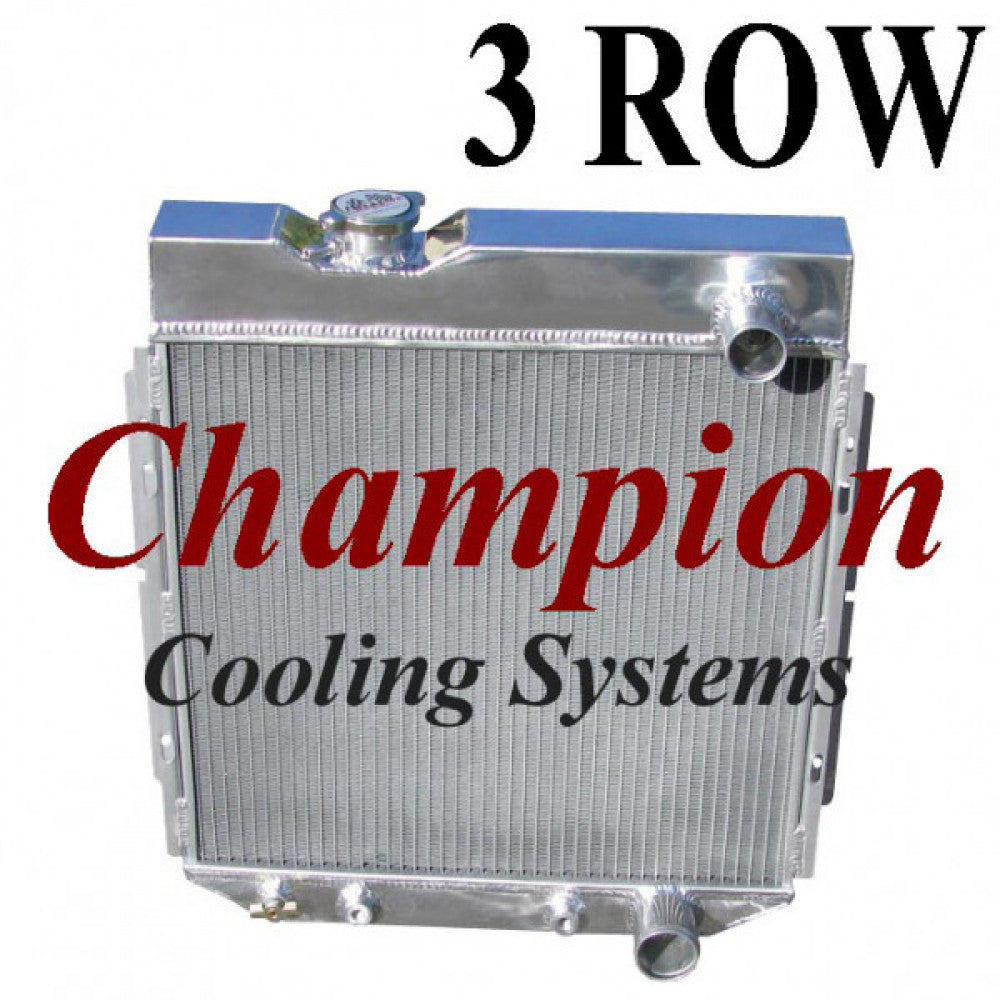

(64-66) MUSTANG 3-ROW RADIATOR
Champion All Aluminum Radiator
3-Row Core | Cools up to 450hp

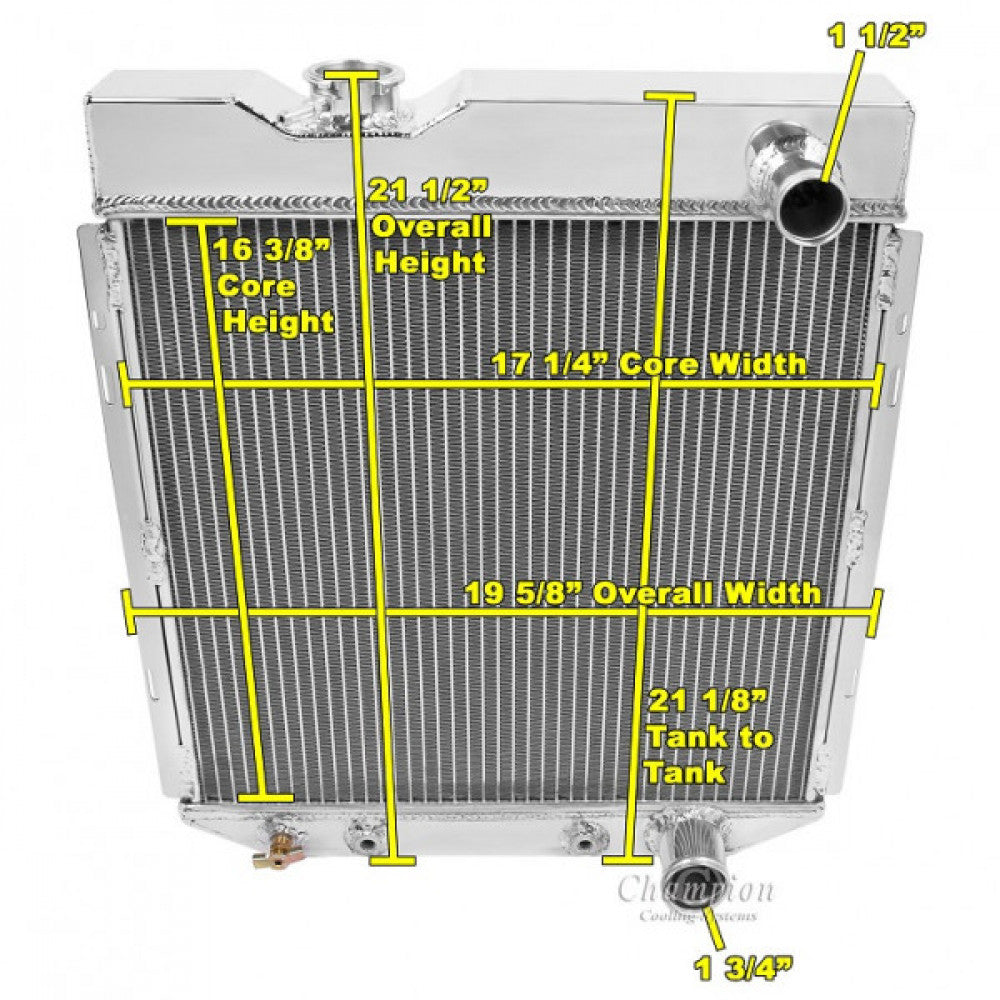

Radiator Dimension:
Total: 21" tall (21.5" with cap) x 19.63" wide (including brackets)
Core: 16.38" tall x 17.25" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick
Bracket Mounted
16 lb. Radiator Cap Included
Transmission Cooler Included (1/8-27NPT)
Recommended electric fans:
One 16" electric fan recommended for this core size. (sold separately)
Note: When buying our 16" fan, make sure there's room for the 3.5" Fan thickness
Champion All Aluminum Radiator
3-Row Core | Cools up to 450hp
Radiator Dimension:
Total: 21" tall (21.5" with cap) x 19.63" wide (including brackets)
Core: 16.38" tall x 17.25" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick
Bracket Mounted
16 lb. Radiator Cap Included
Transmission Cooler Included (1/8-27NPT)
Recommended electric fans:
One 16" electric fan recommended for this core size. (sold separately)
Note: When buying our 16" fan, make sure there's room for the 3.5" Fan thickness
