Description

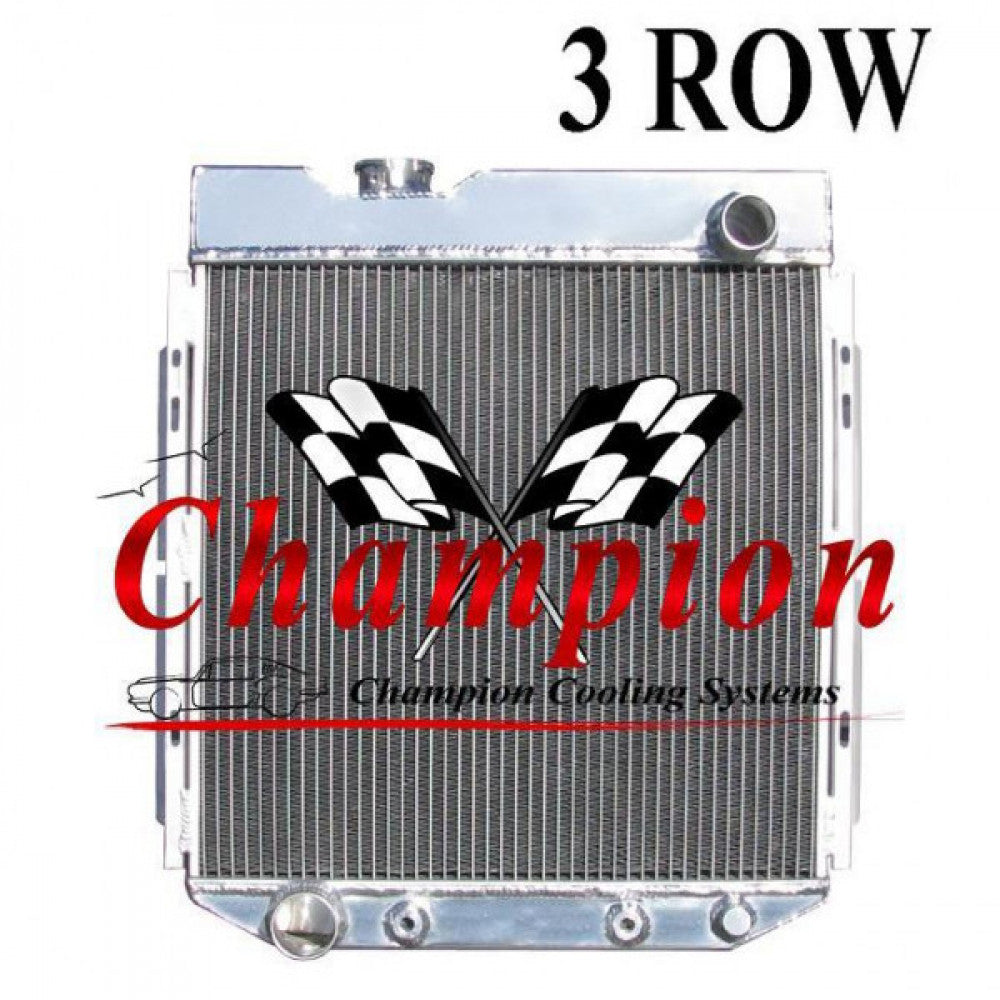

MUSTANG V8 CONVERSION 3-ROW RADIATOR (64-66)
Champion All Aluminum Radiator
3-Row Core | Cools up to 450hp

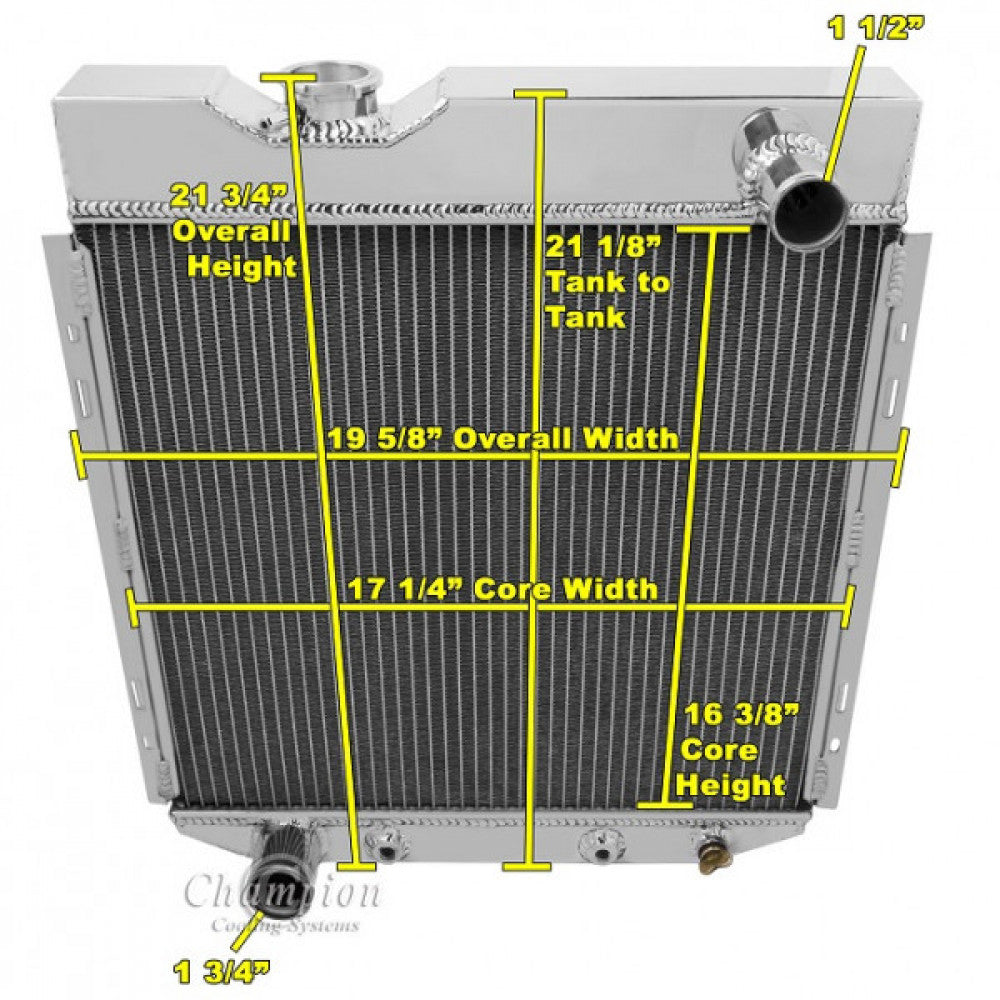

Radiator Dimensions:
Total: 21" tall (21.5" with cap) x 19.63" wide (including brackets)
Core: 16.5" tall x 17" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.75" thick
Tubes: 0.75" thick
Bracket Mounted
Radiator Cap Included
Transmission Cooler Included (1/8-27NPT)
Recommended Cooling Fans:
16" Electric Cooling Fan (sold separately)
Note: When buying our 16" Electric Fan make sure there's room for the 3.5" Fan thickness
Champion All Aluminum Radiator
3-Row Core | Cools up to 450hp
Radiator Dimensions:
Total: 21" tall (21.5" with cap) x 19.63" wide (including brackets)
Core: 16.5" tall x 17" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.75" thick
Tubes: 0.75" thick
Bracket Mounted
Radiator Cap Included
Transmission Cooler Included (1/8-27NPT)
Recommended Cooling Fans:
16" Electric Cooling Fan (sold separately)
Note: When buying our 16" Electric Fan make sure there's room for the 3.5" Fan thickness
