Description

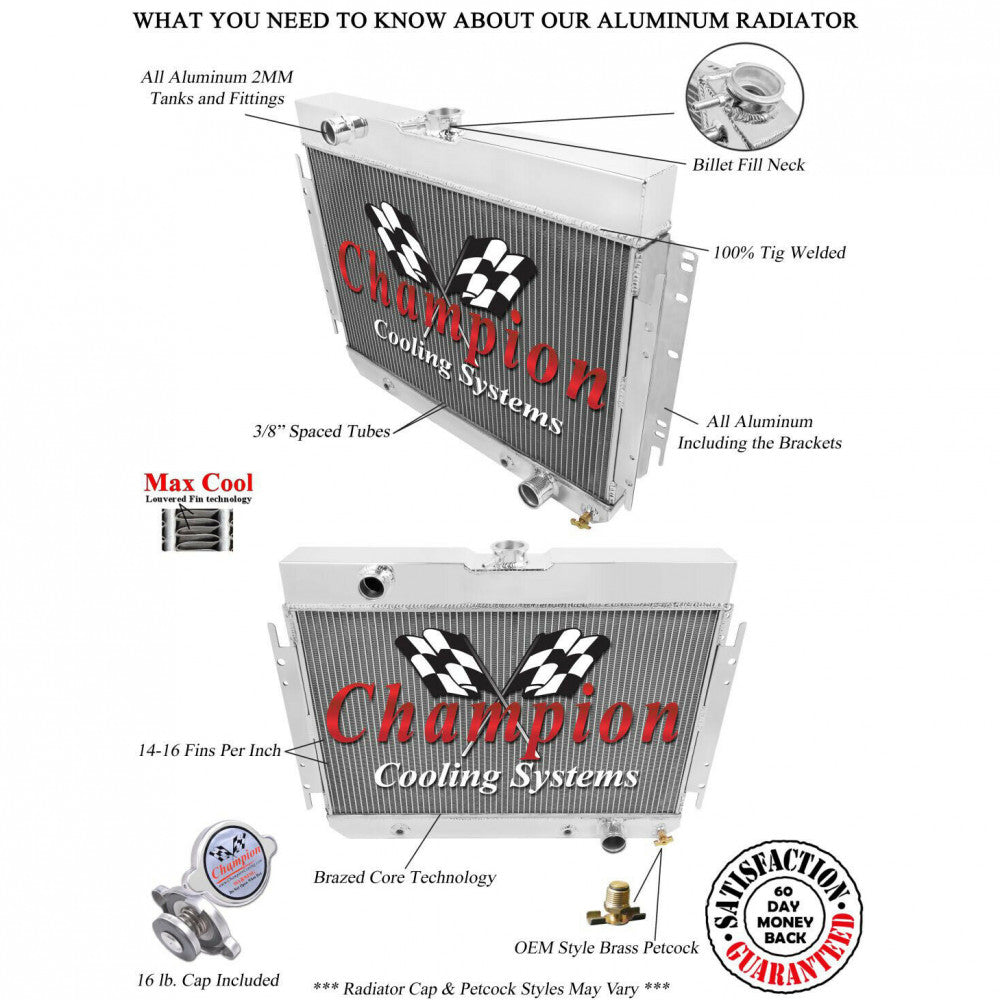

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp
Impala's sometimes need a notched lower tank to miss the
optional larger steering box, please refer to CC281B-PS.
DOES NOT WORK WITH GMC 605 STEERING BOX
Radiator Dimensions:
Total: 21.25" tall (21.75" with cap) x 28" (with brackets) (27" Center)
Core: 16" tall x 24.5" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick
Trans Cooler: 1/2-20 Straight Thread, G 1/4
Radiator Flow: DOWN FLOW
Year: 1959 1960 1961 1962 1963
Make: Chevrolet
Model: Impala
Bracket Mounted
13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Shroud is also available (sold separately)

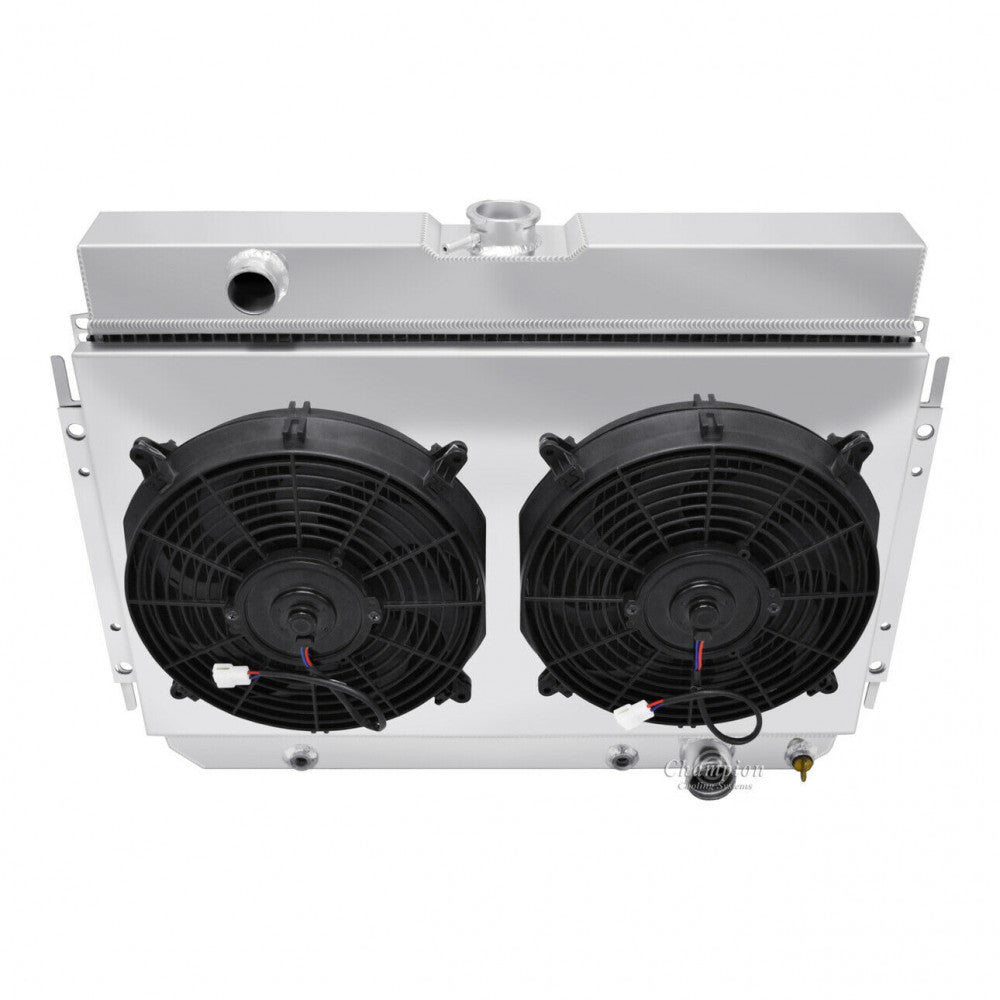

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)
Check with our staff if you need any customized order or sold separately stock.
