Description
Chevrolet Impala 1969-1970

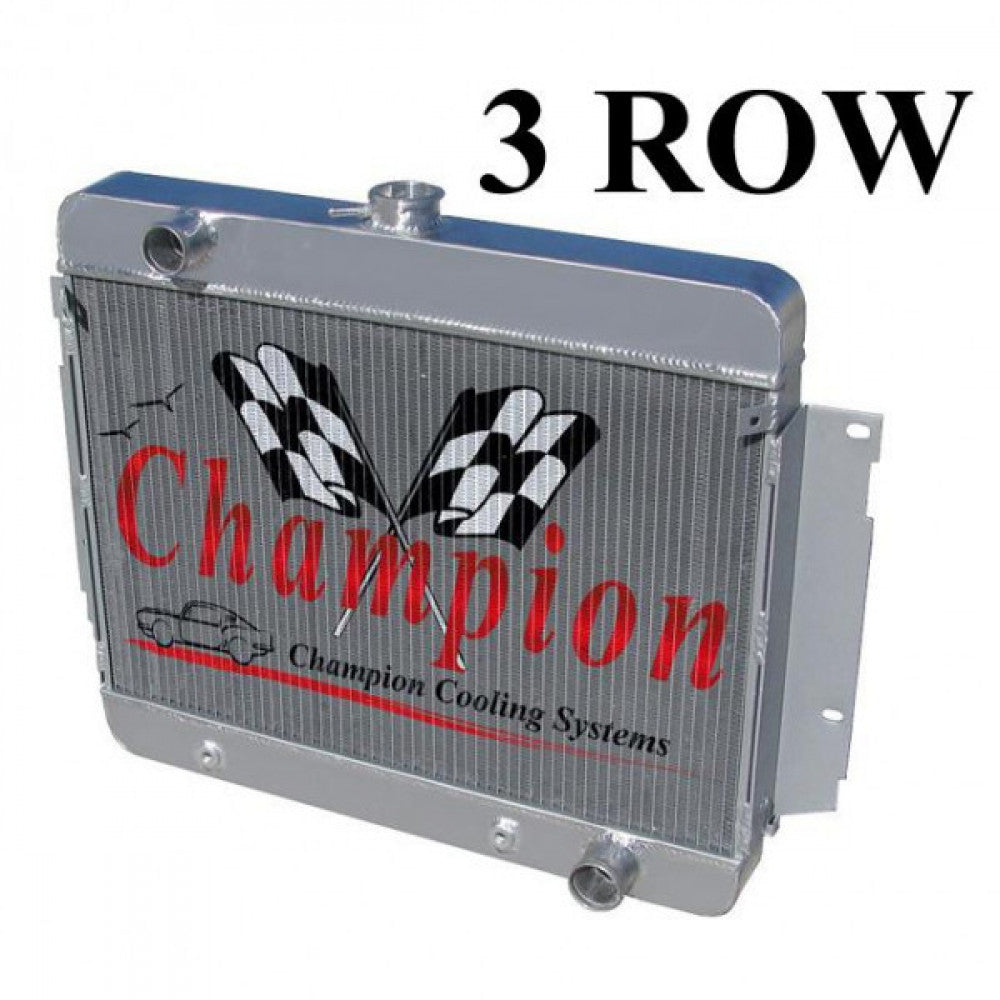

All Aluminum Champion Radiator
3-Row Core: Cools 500hp
Note: This replaces the factory 15.5" tall core w/o AC

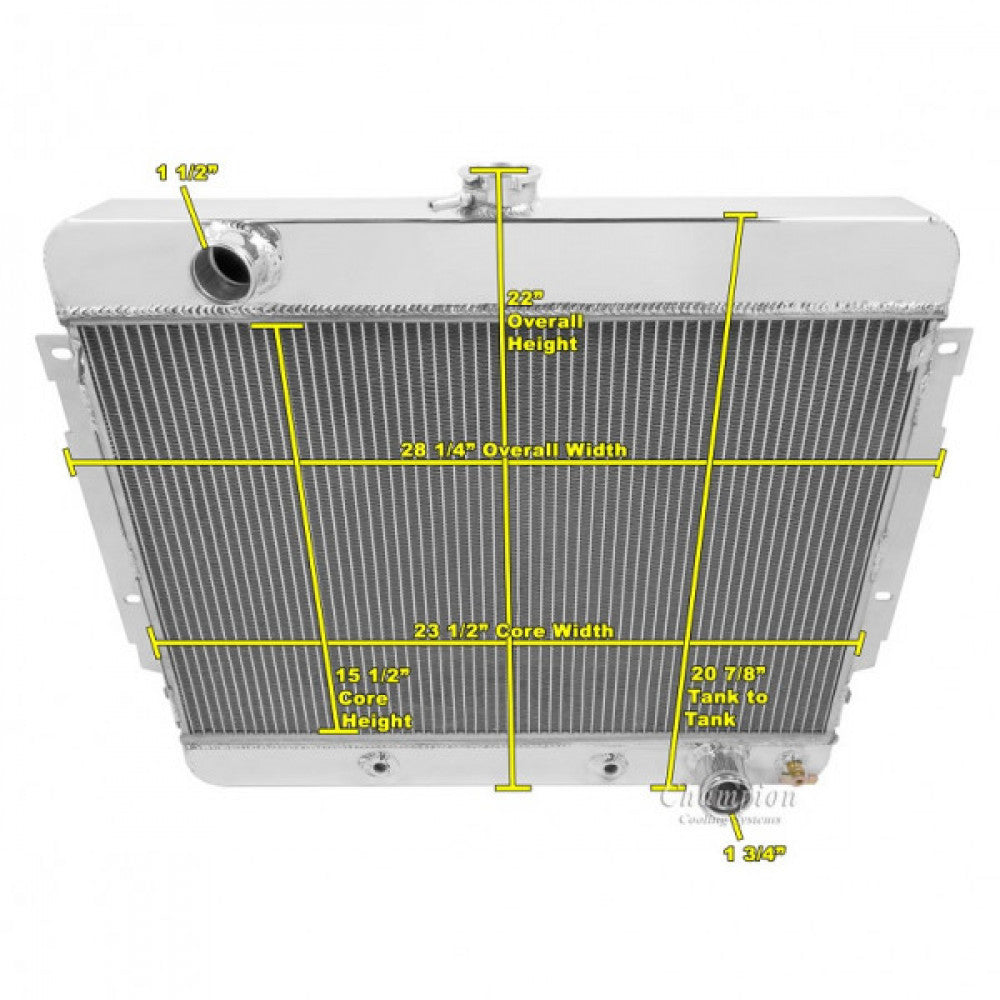

Radiator Dimensions:
Total: 22" tall x 28.25" wide (with brackets)
Core: 15.5" tall x 23.38" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75” passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick
Bracket Mounted
16 lb. Radiator Cap Included
Transmission Cooler Included (1/2" 20 STRAIGHT THREAD G1/4)
Recommended Fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)
All Aluminum Champion Radiator
3-Row Core: Cools 500hp
Note: This replaces the factory 15.5" tall core w/o AC
Radiator Dimensions:
Total: 22" tall x 28.25" wide (with brackets)
Core: 15.5" tall x 23.38" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75” passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick
Bracket Mounted
16 lb. Radiator Cap Included
Transmission Cooler Included (1/2" 20 STRAIGHT THREAD G1/4)
Recommended Fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)
