Description

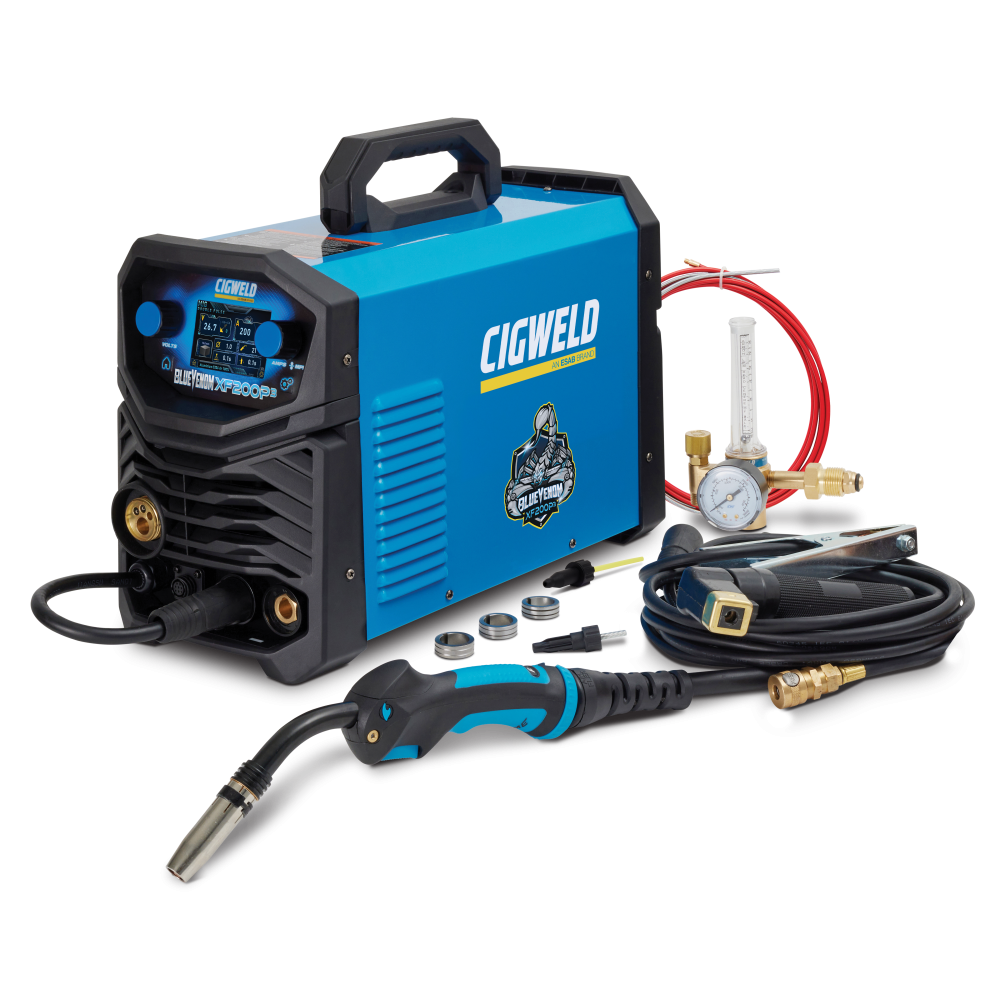

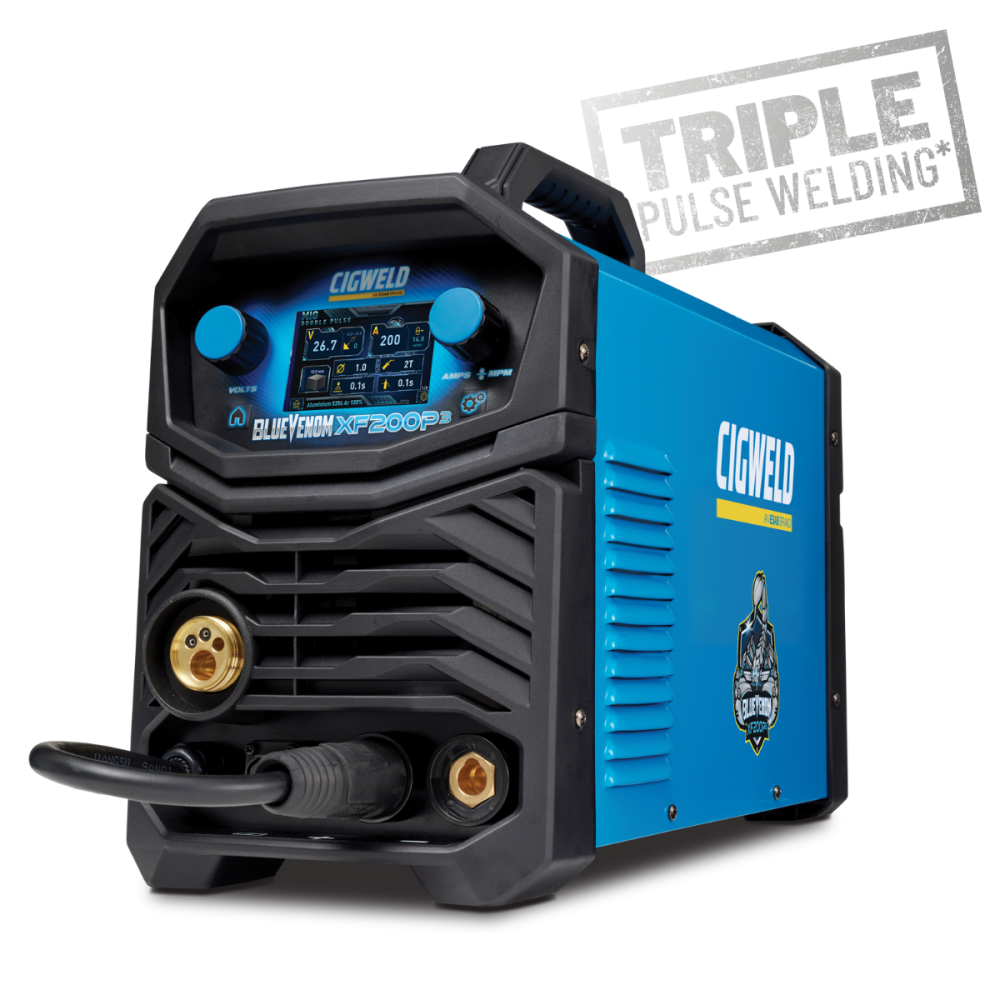

The BlueVENOM XF200P3 is the machine for the serious welding enthusiast, tradesperson or professional who needs to fabricate and weld light structures that require TIG-Like welds on Aluminium, Stainless Steel, Bronze or Steel projects, but need the welding speed and ease-of-use of the MIG Process. Suitable for use at maintenance departments, farm/home workshops, job sites and marine repair/service centres without compromising on price for excellent results!
With the avid welder in mind, CIGWELD has introduced “Opti-Start”, a feature that allows the user to customise their starting arc characteristics through Soft and Hard Start controls.
Power Supply (Voltage) - Single-Phase 230V/240V +/- 10%
Australian Standard - AS 60974.1:2020
Nominal Supply Frequency - 50/60Hz
Supply Lead and Plug supplied - 15 Amp
Minimum Single Phase Generator Recommendation - 12kVA (at 0.8 Power Factor) at Max Amps
Amperage Range (MIG) - 30 – 200A
Voltage Range (MIG) - 15.5 - 24.0V
MIG (GMAW) Duty Cycle @ 40°C, 10 minutes -
200 Amps @ 15%
100 Amps @ 60%
77 Amps @ 100%
STICK (MMAW) Duty Cycle @ 40°C, 10 minutes:
195 Amps @ 10%
80 Amps @ 60%
62 Amps @ 100%
TIG (GTAW) Duty Cycle @ 40°C, 10 minutes
200 Amps @ 15%
100 Amps @ 60%
77 Amps @ 100%
Nominal DC Open Circuit Voltage in MIG Mode - 67V
Open Circuit Voltage (VRD On) STICK Mode - <35V
Weight of Power Source - 13.4kg
Power Source Dimensions (mm) - L: 495 x W: 220 x H: 335
Weight of Full Package - 21.7kg
Full Package Dimensions (mm)
L: 580 x W: 310 x H: 395 - L: 580 x W: 310 x H: 395
Protection Class - IP 21S
