Description

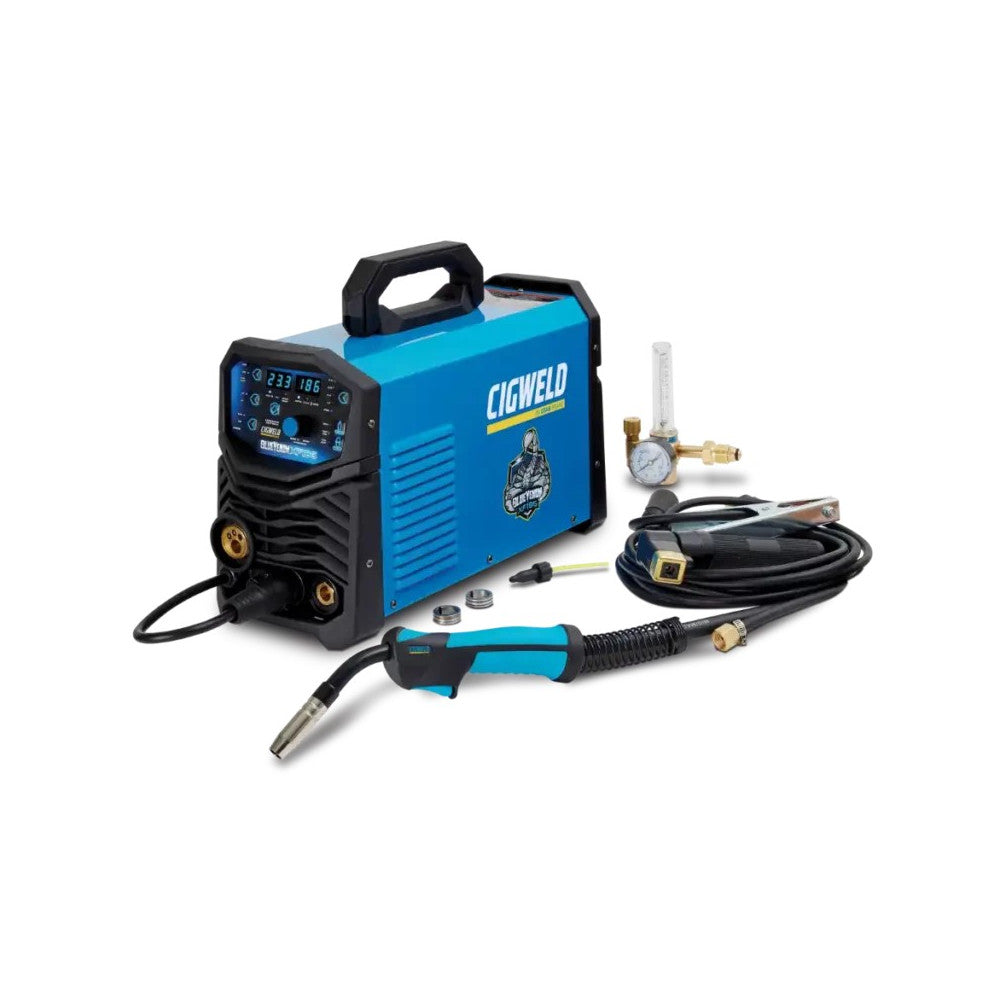

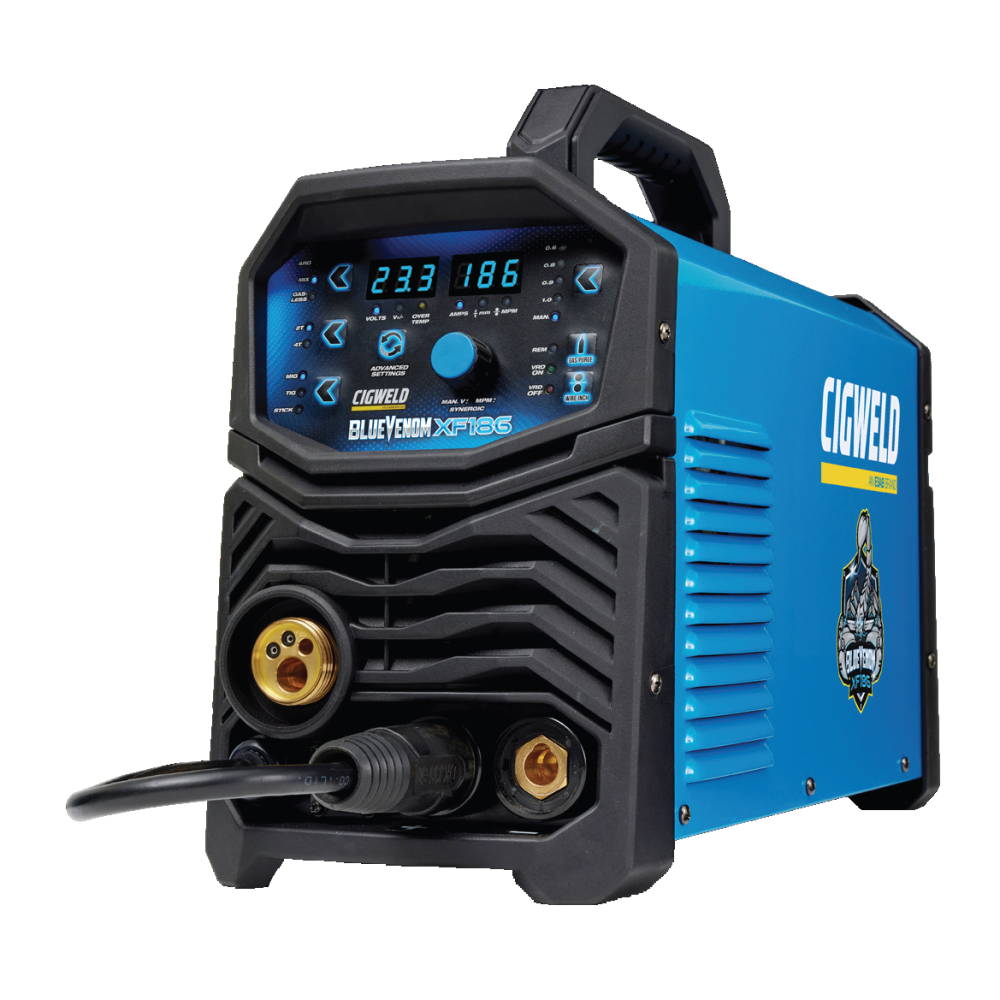

The BlueVENOM XF186 is an ideal solution for DIY projects around the home, workshop, worksite or light fabrication, maintenance and repairs! Although simplistic in design, CIGWELD have still included “Opti-Start”, a feature that allows the user to customise their starting arc characteristics through Soft and Hard Start controls.
Specifications
Brand Cigweld Power Supply 240V
Plug Type 10A Welding Process MIG, STICK, TIG
Usage Trade Material Type Mild Steel, Aluminium, Bronze, Stainless Steel
Material Thickness MIG Up to 10mm Material Thickness STICK Up to 10mm
Material Thickness TIG 1.0-7.0mm Additional Features MIG Gun, QuickSet Control
Duty cycle MIG: 185A @ 9%, STICK: 160A @ 10%, TIG: 186A @ 10% Warranty 2 Year + 6 months Extended Warranty
Number of Phases Single Phase Generator Requirement 10.0kVa
Dimensions Power Source 465 x 190 x 340mm Pulse Capable MIG No
Pulse Capable TIG No Pulse Capable STICK No
Product Documents
cigweld-bluevenom-xf186-brochure-v1-2023.pdf
