Description

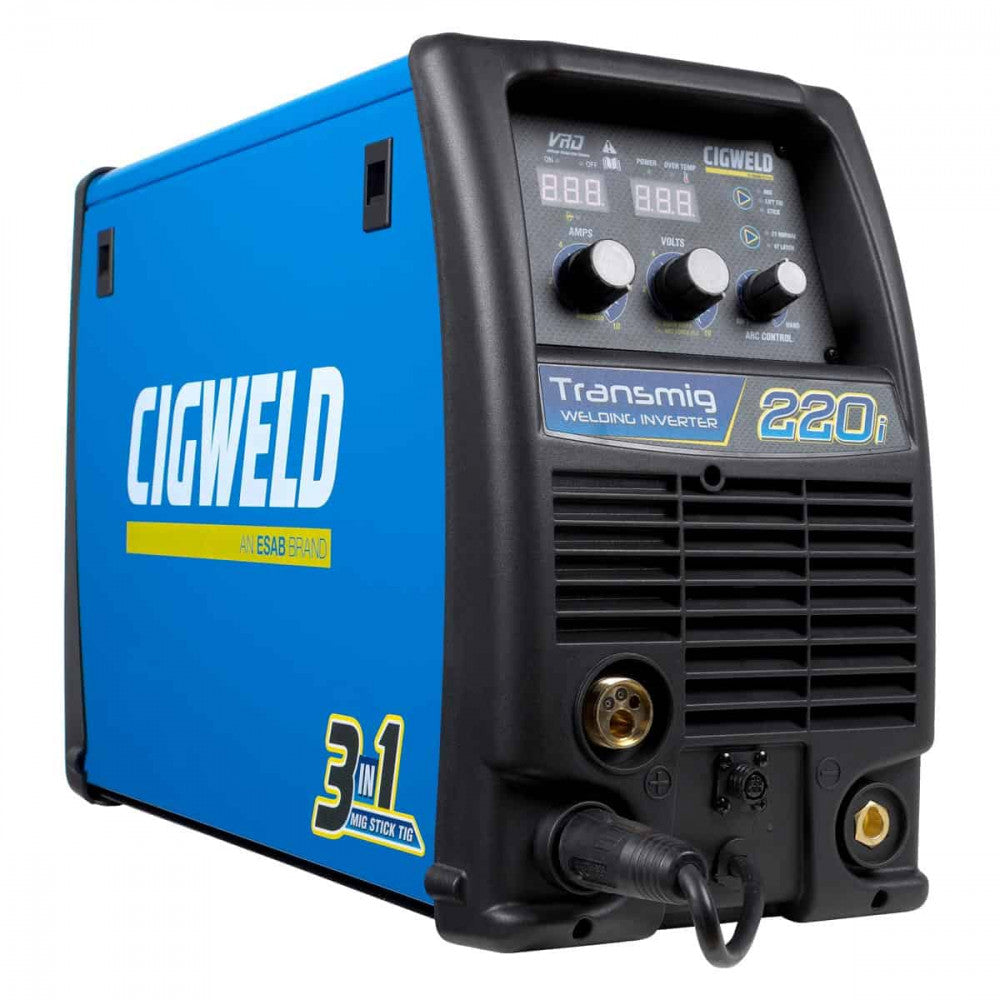

The CIGWELD TRANSMIG 220i is a self-contained single phase multiprocess welding inverter that is capable of performing GMAW/FCAW (MIG), MMAW (Stick) and GTAW (Lift TIG) welding processes. The unit is equipped with an integrated wire feed unit, voltage reduction device (VRD applicable in Stick mode only), digital voltage and amperage meters, and a host of other features in order to fully satisfy the broad operating needs of the modern welding professional.
220A (MIG Mode) 3-in-1 MIG / Stick / Lift TIG Inverter Welder
Digital Amperage and Voltage Meters
Full multi-process capabilities; MIG, Stick and Lift TIG
Integrated Wire Feed Unit – Spools up to 15kg or 300mm
Standards compliant VRD
Fully compliant to AS 60974.1-2006. Enclosure Rated to IP23S – Designed for Indoor & Outdoor use.
Arc Control (Inductance) for adjusting the intensity of the arc
Adjustable Burnback Control for controlling MIG wire stick out
Euro MIG Torch Connection
Accepts Mechafin style 2R feed rolls
Robust 50mm Dinse twist lock connections
3 Year Limited Warranty

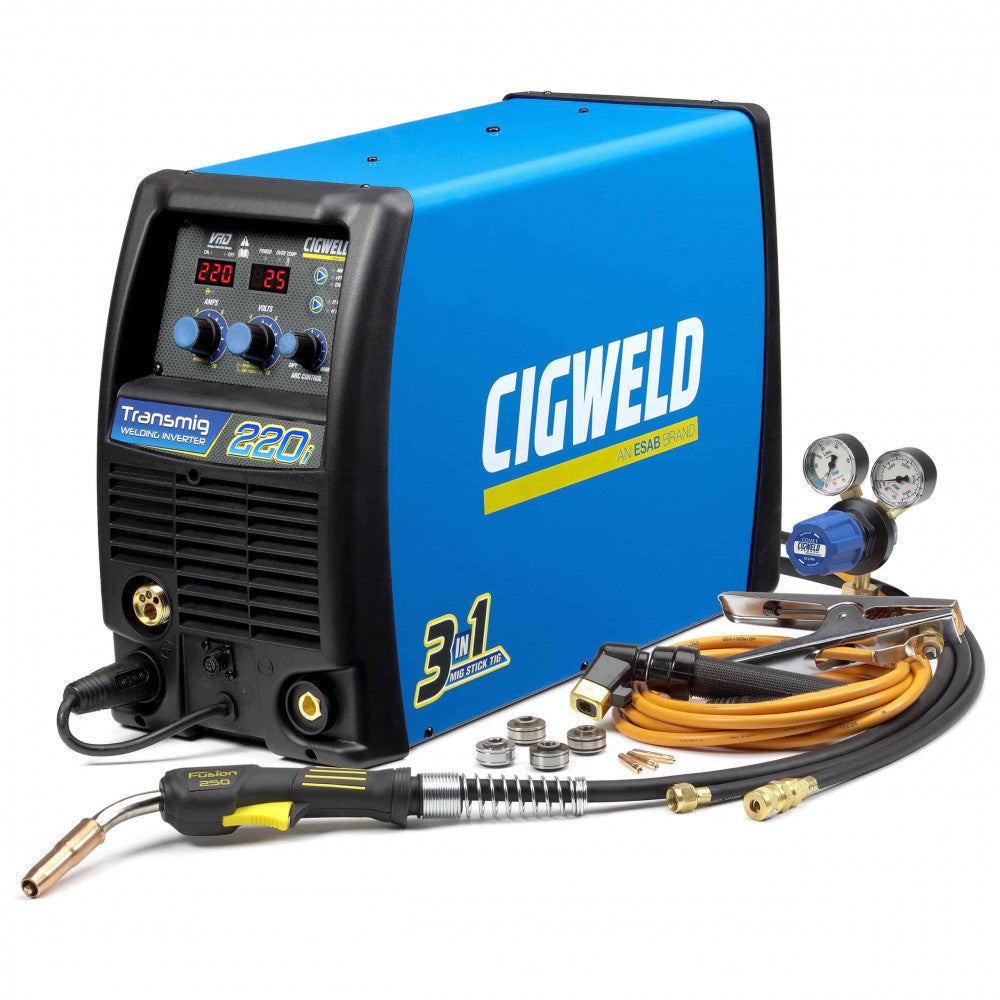

INCLUDES:
Transmig 220i Inverter power source
Tweco Professional Fusion 250 MIG Torch, 3.6mtr
COMET Professional Argon Regulator/Flowmeter
Feed Rolls: 0.6/0.8mm V Groove (fitted), 0.9/1.2mm V Groove, 1.0/1.2mm U Groove; 0.8/0.9mm V Knurled; 1.2/1.6mm V Knurled
Contact Tips: 0.8mm (fitted), 0.6mm, 0.9mm, 1.0mm
Twist Lock Electrode Holder with 4m Lead
Work Clamp with 4m Lead
Shielding Gas Hose Assembly
Operating manual (not pictured)
Current Range
10 - 220A MIG (GMAW/FCAW), 10 - 200A STICK (MMAW), 10 - 200A TIG (GTAW)
Duty Cycle
MIG (GMAW/FCAW): 220A @ 20%, 25V (40°C, 10mins)
STICK (MMAW): 200A @ 25%, 28V (40°C, 10mins)
TIG (GTAW): 200A @ 25%, 18V (40°C, 10mins)
Recommended Generator
8.0 kW (at 1.0 Power Factor)
Weight
26kg
Dimensions
435mm(H) x 266mm(W) x 617mm(D)
220A (MIG Mode) 3-in-1 MIG / Stick / Lift TIG Inverter Welder
Digital Amperage and Voltage Meters
Full multi-process capabilities; MIG, Stick and Lift TIG
Integrated Wire Feed Unit – Spools up to 15kg or 300mm
Standards compliant VRD
Fully compliant to AS 60974.1-2006. Enclosure Rated to IP23S – Designed for Indoor & Outdoor use.
Arc Control (Inductance) for adjusting the intensity of the arc
Adjustable Burnback Control for controlling MIG wire stick out
Euro MIG Torch Connection
Accepts Mechafin style 2R feed rolls
Robust 50mm Dinse twist lock connections
3 Year Limited Warranty
INCLUDES:
Transmig 220i Inverter power source
Tweco Professional Fusion 250 MIG Torch, 3.6mtr
COMET Professional Argon Regulator/Flowmeter
Feed Rolls: 0.6/0.8mm V Groove (fitted), 0.9/1.2mm V Groove, 1.0/1.2mm U Groove; 0.8/0.9mm V Knurled; 1.2/1.6mm V Knurled
Contact Tips: 0.8mm (fitted), 0.6mm, 0.9mm, 1.0mm
Twist Lock Electrode Holder with 4m Lead
Work Clamp with 4m Lead
Shielding Gas Hose Assembly
Operating manual (not pictured)
Current Range
10 - 220A MIG (GMAW/FCAW), 10 - 200A STICK (MMAW), 10 - 200A TIG (GTAW)
Duty Cycle
MIG (GMAW/FCAW): 220A @ 20%, 25V (40°C, 10mins)
STICK (MMAW): 200A @ 25%, 28V (40°C, 10mins)
TIG (GTAW): 200A @ 25%, 18V (40°C, 10mins)
Recommended Generator
8.0 kW (at 1.0 Power Factor)
Weight
26kg
Dimensions
435mm(H) x 266mm(W) x 617mm(D)
Product Documents
cig-1446-transmig-220i-flyer_email.pdf
